| Price | Negotiable |
| MOQ | 2000 PCS |
| Delivery Time | 7-10 Workdays |
| Brand | AMPFORT |
| Place of Origin | Dongguan,Guangdong,China |
| Certification | UL,cUL,ROHS,REACH |
| Model Number | 1032F |
| Packaging Details | Reel,2K per reel |
| Payment Terms | T/T,Paypal,Wire transer |
| Supply Ability | 10,000,000 Pieces Per Month |
| Small Size | 10.2mm*3.2mm | Place of Origin | Dongguan,Guangdong,China |
| Packaging Details | Reel,2K per reel | Product Name | 1025 Ceramic Fast Acting SMD Chip Fuse |
| Fuse Type | Fast Acting | Model Number | 1032F |
| Supply Ability | 10,000,000 Pieces Per Month | Certification | UL,cUL,ROHS,REACH |
| Rated Voltage | 300V 350V 400V 500V 600V | Brand Name | AMPFORT |
| Payment Terms | T/T,Paypal,Wire transer | Current Range | 200mA~5A |
| Price | Negotiable | Delivery Time | 7-10 Workdays |
| Minimum Order Quantity | 2000 PCS | Temperature range | -55°C to 125°C |
1025 Ceramic Fast Acting SMD Chip Fuse 1032 200mA~5A 300V 350V 400V 500V 600V
Description Of The 1025 Ceramic Fast Acting SMD Chip Fuse 1032

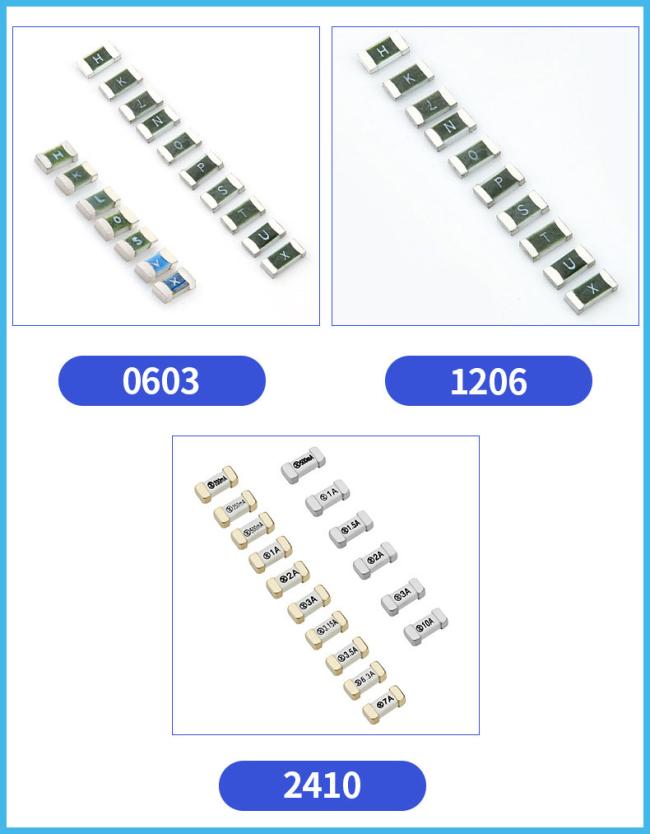

1025 SMD chip fuse is designed to high inrush current application and high voltage available.Compared with 2410 smd fuse, 1025 fuse is a little bigger on size but higher current and higher voltage available.
Features Of The 1025 Ceramic Fast Acting SMD Chip Fuse 1032
► Fast acting
► 0.2A-5A current ratings
► Voltage up to 600V
► Hish inrush current capability
►
Fast-acting
high
current
fuse
►
Compact
design
utilizes
less
board
space
►
Ceramic
tube,
gold
or
silver
plated
brass
end
cap
construction
►
Halogen
free
►
Server
and
desktop
power
supplies
►
Gaming
console
systems
►
Voltage
Regulator
Module
(VRM)
►
Storage
system
power
►
Base
station
power
supplies
►
Basic
power
supplies
►
LED
and
general
lighting
►
Test
equipment
► UL CUL safety certifications
► ROHS REACH Complaint
► Tape in reel package
Specifications Of The 1025 Ceramic Fast Acting SMD Chip Fuse 1032
|
Part No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
Nominal Cold Resistance (Ohms) |
I2TMelting Integral(A2.S) |
Agency Approvals |
||
| UL | CUL | |||||||
| 1032F.0200 | 200mA |
300V/ 350V/ 400V/ 500VAC/DC |
600V AC/DC |
100A/@300V 350V 400V500V 600VAC/DC 150A@300V 350V 400V500V AC/DC
|
2.550 | 0.075 | ● | ● |
| 1032F.0250 | 250mA | 1.630 | 0.200 | ● | ● | |||
| 1032F.0300 | 300mA | 1.102 | 0.307 | ● | ● | |||
| 1032F.0315 | 315mA | 1.040 | 0.355 | ● | ● | |||
| 1032F.0375 | 375mA | 0.620 | 0.701 | ● | ● | |||
| 1032F.0500 | 500mA | 0.540 | 1.005 | ● | ● | |||
| 1032F.0630 | 630mA | 0.351 | 2.001 | ● | ● | |||
| 1032F.0800 | 800mA | 0.180 | 3.010 | ● | ● | |||
| 1032F.1100 | 1A | 0.177 | 3.811 | ● | ● | |||
| 1032F.1125 | 1.25A | 0.122 | 7.040 | ● | ● | |||
| 1032F.1150 | 1.5A | 0.072 | 10.92 | ● | ● | |||
| 1032F.1160 | 1.6A | 0.071 | 11.53 | ● | ● | |||
| 1032F.1200 | 2A | 0.055 | 13.40 | ● | ● | |||
| 1032F.1250 | 2.5A | --- | 0.041 | 26.12 | ● | ● | ||
| 1032F.1300 | 3A | 0.032 | 43.90 | ● | ● | |||
| 1032F.1315 | 3.15A | 0.031 | 44.60 | ● | ● | |||
| 1032F.1350 | 3.5A | 0.025 | 60.20 | ● | ● | |||
| 1032F.1400 | 4A | 0.023 | 62.90 | ● | ● | |||
| 1032F.1500 | 5A | 0.015 | 110.5 | ● | ● | |||
Breaking
Capacity:
100A@300V350V400V500V600Vac/dc,
150A@300V350V400V500Vac/dc
|
% of Ampere Rating(In) |
Blowing Time |
| 100% * In | 4 hours Min |
| 200% * In | 120 sec Max |

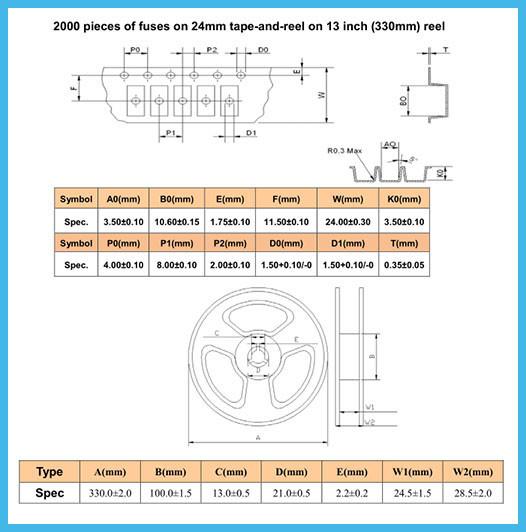

Package Of The 1025 Ceramic Fast Acting SMD Chip Fuse 1032
Tape in reel, 2000pcs per reel.
Frequently asked questions Of The 1025 Ceramic Fast Acting SMD Chip Fuse 1032
| Question | Answer |
| Can fuses with an AC voltage rating be used in a DC voltage application? | Fuses should be rated for the voltage AC or DC in which they will be used. The data sheet will usually have both an AC and DC voltage rating if they are recommended for both types of applications. |
| Do fuses need to be derated to account for the operating temperature? |
Yes.
Please
contact
technical
support
click
here
if
the
temperature derating information is not on the data sheet. |
| What is the difference between interrupting rating (breaking capacity) and the fuse’s ampere rating? |
The
breaking
capacity
or
interrupting
rating
for
a
protective
device is the maximum available current, at rated voltage, that the device can safely open. The ampere rating is the normal current the fuse is designed to carry at +25 °C. It is recommended, however, that the fuse’s current rating be at least 125 percent of the nominal operating current passing through the fuse. Both ratings are determined through testing. |
| My circuit is “x” amperes. What amperage fuse should I select? |
The
normal
operating
current
of
a
circuit
is
the
level
of
current
drawn (in RMS or DC amperes) after it has been energized and is operating under normal conditions. An operating current of 80 percent or less of rated current is recommended for operation at +25 °C to avoid nuisance openings. For example, a fuse with a current rating of 1 A is usually not recommended in circuits with normal operating currents of more than 800 mA. Further derating is required at elevated ambient temperatures. |
| Do fuse holders need derating? |
Yes.
Generally
this
derating
factor
is
in
line
with
fuse
derating
of
80 percent but could be more depending on additional environmental or operating factors such as temperature and/or current cycling. |
| Can a time delay fuse be used to replace a fast acting fuse? |
Fast
acting
fuses
are
typically
used
to
protect
sensitive
components from damage. Time delay fuses are typically used in circuits that may have periodic spikes in current to avoid nuisance openings. Replacing fast acting fuses with a time delay fuse could result in damage to equipment. |
