Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
For
Automotive
BMS
Description
Of
The Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
AMPFORT
R1032
series
slow-blow
square
Surface
Mount
fuses
are
ceramic
tube/end
cap
constructions,
RoHS
compliant,
Halogen
Free
and
lead(Pb)
exempts
of
the
requirements
of
RoHS
Directive(2002/95/EC),
with
U.S.
(UL/CSA)
safety
agency
approvals.
Provide
board
level
primary
and
secondary
circuit
protection
in
a
wide
variety
of
applications.
With
excellent
inrush
current
withstanding
capability,
excellent
reliability
for
thermal
and
mechanic
shock,
also
have
a
high
reliability
and
stable
solder
ability,
end
caps
are
available
in
gold/silver/nickel
plated.
Features Of
The
Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
| • Time-Lag (Slow-Blow) | • Small size(10.2mm*3.2mm) |
| • Wide range of current rating available | • Wide operating temperature range |
| • Low temperature de-rating | • RoHS compliant |
| • Tape and Reel for automatic placement | • Conflict free metals |
Application Of
The
Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
| • LED lighting | • Notebook PC | • Battery devices | • LCD/PDP devices |
| • LCD backlight inverter | • Portable Devices | • Power supply | • Networking devices |
| • PC server | • Cooling fan system | • Storage system | • Telecom system |
| • Wireless base station | • White goods | • Game console | • Office equipment |
| • Digital camera | • Industrial equipment | • Medical equipment | • Automotive devices |
Standards
and
Agency
Approvals Of
The
Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
Standards:In
accordance
with
UL
248-14.
Certification:
|
Agency |
Ampere Range |
Agency File Number |
| UL | 200mA ~ 40A | E340427(JDYX2) |
| cUL | 200mA ~ 40A | E340427(JDYX8) |
Specifications Of
The
Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
|
Part No. |
Ampere |
Voltage |
Breaking |
Nominal
Cold |
I2TMelting |
Agency Approvals |
|
| UL | CUL | ||||||
| R1032T.0200 | 200mA |
250V/125V |
1KA@32V |
2.550 | 0.08 | ● | ● |
| R1032T.0250 | 250mA | 1.630 | 0.218 | ● | ● | ||
| R1032T.0300 | 300mA | 1.102 | 0.387 | ● | ● | ||
| R1032T.0315 | 315mA | 1.040 | 0.367 | ● | ● | ||
| R1032T.0375 | 375mA | 0.621 | 0.631 | ● | ● | ||
| R1032T.0400 | 400mA | 0.600 | 0.650 | ● | ● | ||
| R1032T.0500 | 500mA | 0.551 | 1.01 | ● | ● | ||
| R1032T.0600 | 600mA | 0.360 | 2.01 | ● | ● | ||
| R1032T.0630 | 630mA | 0.351 | 2.02 | ● | ● | ||
| R1032T.0700 | 700mA | 0.190 | 3.73 | ● | ● | ||
| R1032T.0750 | 750mA | 0.186 | 3.83 | ● | ● | ||
| R1032T.0800 | 800mA | 0.180 | 3.91 | ● | ● | ||
| R1032T.1100 | 1A | 0.177 | 4.01 | ● | ● | ||
| R1032T.1125 | 1.25A | 0.112 | 7.34 | ● | ● | ||
| R1032T.1150 | 1.5A | 0.072 | 11.92 | ● | ● | ||
| R1032T.1160 | 1.6A | 0.071 | 12.63 | ● | ● | ||
| R1032T.1200 | 2A | 0.054 | 14.40 | ● | ● | ||
| R1032T.1250 | 2.5A | 0.041 | 28.12 | ● | ● | ||
| R1032T.1300 | 3A | 0.032 | 45.3 | ● | ● | ||
| R1032T.1315 | 3.15A | 0.031 | 45.6 | ● | ● | ||
| R1032T.1350 | 3.5A | 0.024 | 63.5 | ● | ● | ||
| R1032T.1400 | 4A | 0.022 | 64.1 | ● | ● | ||
| R1032T.1500 | 5A | 0.015 | 112.0 | ● | ● | ||
| R1032T.1600 | 6A | 0.013 | 145.3 | ● | ● | ||
| R1032T.1630 | 6.3A | 0.012 | 145.6 | ● | ● | ||
| R1032T.1700 | 7A | 0.0083 | 147.2 | ● | ● | ||
| R1032T.1800 | 8A | 0.0080 | 161 | ● | ● | ||
| R1032T.2100 | 10 | 0.0053 | 170 | ● | ● | ||
| R1032T.2120 | 12A | 0.0045 | 187 | ● | ● | ||
| R1032T.2150 | 15A | 0.0038 | 337 | ● | ● | ||
| R1032T.2160 | 16A | 0.0032 | 338 | ● | ● | ||
| R1032T.2200 | 20A | 0.0024 | 720 | ● | ● | ||
| R1032T.2250 | 25A | 0.0018 | 1182 | ● | ● | ||
| R1032T.2300 | 30A | 0.0014 | 2050 | ● | ● | ||
| R1032T.2400 | 40A | 0.0012 | 3750 | ● | ● | ||
*:
These
catalog
no.
cold
resistance
and
I2t
value
are
pending
due
to
fuse
elements
shall
be
customized;
DC
Cold
Resistance
are
measured
at
<10%
of
rated
current
in
ambient
temperature
of
25℃;
Typical
Pre-arching
I2t
are
calculated
at
10*In
Current
or
8ms;
Min
Interrupting
Rating:
1.35*In.
Dimension Of
The
Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
|
NO. |
Part Name |
Material |
| 1 | End caps | Au Plated Brass Cap |
| 2 | Body | Non-Transparent Square Ceramic Tube |
| 3 | Fuse element | Cu-Ag Alloy wire |
Electrical
Characteristics Of
The
Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
Test
Conditions
:All
electrical
test
is
to
be
conducted
with
the
ambient
air
at
a
temperature
of
25±5℃.
Interrupting
Rating:Breaking
Capacity:
150A@63V72V100V125V250V
1KA@32V
500A@60V72V
Operating
Characteristics
|
% of Ampere Rating(In) |
Blowing Time |
| 100% * In | 4 hours Min |
| 200% * In | 120 sec Max |

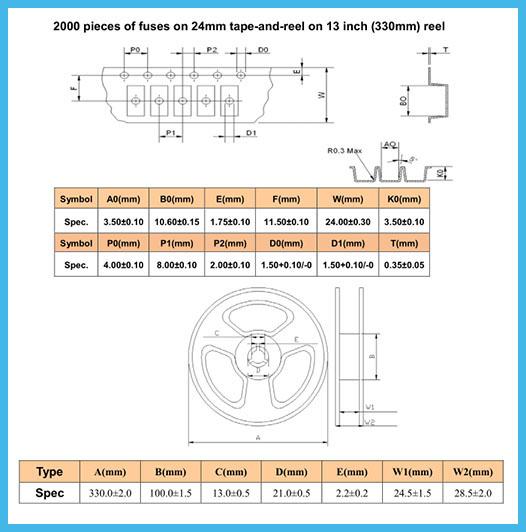

Package Of
The
Slow
Blow
Surface
Mount
Chip
Fuse
1025
1032
1.25A
250VDC
10x2.5mm
