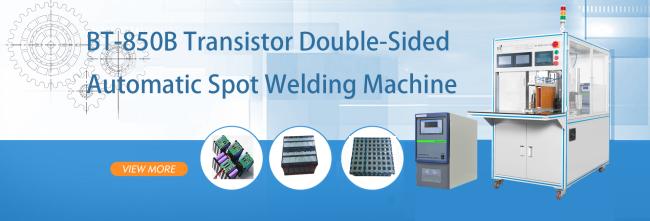

BT-850B-10000A
Transistor
Power
Battery
Pack
Double
Sides
Spot
Welding
Machine
Product
Application

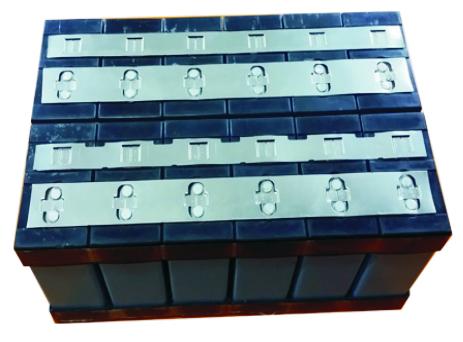

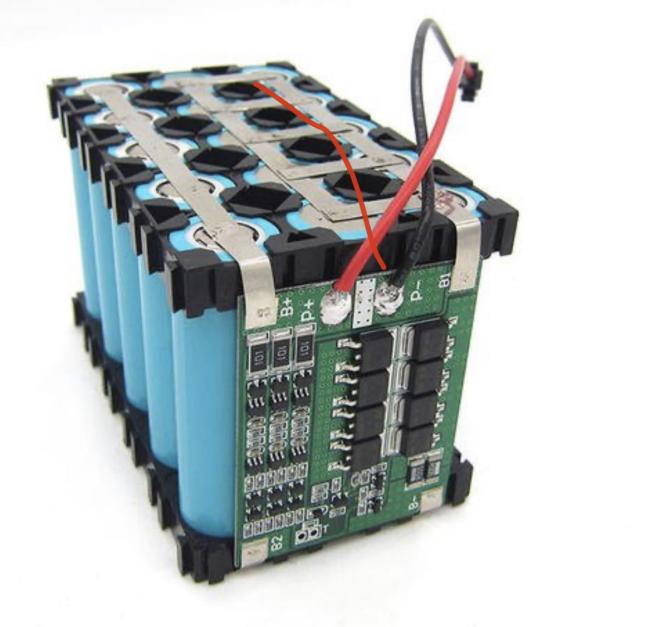

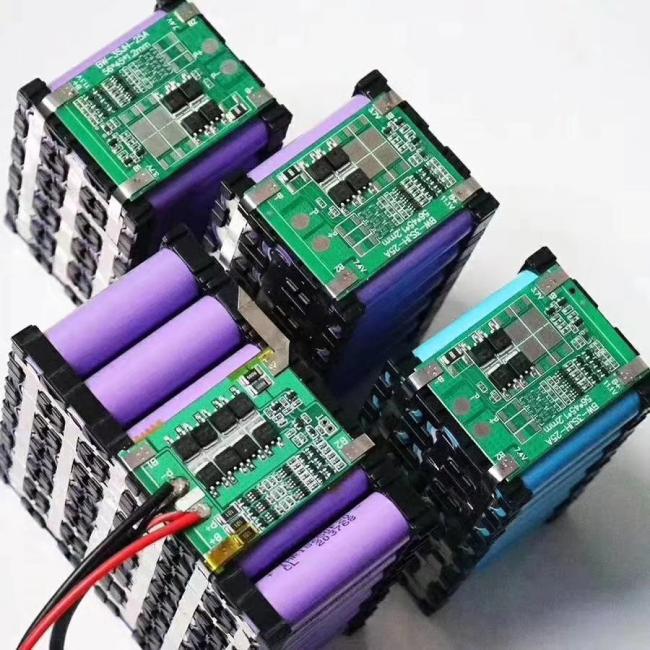

This
spot
welder
is
designed
for
power
battery
applications
including
18650/26650
series-parallel
combinations,
multi-parallel
multi-series
configurations,
electric
tool
batteries,
energy
storage
battery
packs,
and
various
lithium-ion
battery
types
including
ternary
lithium-ion
and
lithium
iron
phosphate
batteries.
Key
Advantages
-
Aluminum
alloy
and
sheet
metal
construction
for
durability
and
stability
-
Ideal
for
large-scale
automatic
battery
spot
welding
-
Consistent,
high-quality
welding
results
-
High
efficiency:
4600-5000
power
cores
per
hour
(18650
example)
-
User-friendly
operation
with
anti-dull
configuration
-
Stores
200
welding
parameter
sets
for
quick
model
switching
-
Real-time
welding
current
monitoring
with
automatic
shutdown
for
false
welds
-
U
Disk
compatible
for
parameter
storage
and
export
Technical
Specifications
|
Specification
|
Value
|
|
Y-axis
Travel
|
0-400mm
|
|
X-axis
Travel
|
0-600mm
|
|
Spot
Welding
Speed
|
4600-5000pcs/h
|
|
Nickel
Sheet
Thickness
|
0.1mm-0.4mm
(depending
on
configuration)
|
|
Air
Pressure
|
0.4-0.8Mpa
|
|
Power
Supply
|
220V,
50/60Hz,
4KW
|
|
Max
Motor
Speed
|
1000mm/s
|
|
Transmission
|
Progressive,
imported
precision
linear
guide
rail
|
|
Run
Power
|
Servo
electric
|
|
User
Interface
|
Touch
screen
|
|
Operating
System
|
Embedded
system
+
man-machine
screen
|
|
Cell
Range
|
14430/14500/18650/21700/26650/32650/37200
|
|
Weight
|
220KG
|
|
Dimensions
|
L1630×W850×H1630mm
|
Frequently
Asked
Questions
Q:
What
types
of
machines
can
we
make?
A:
Our
product
range
includes
transistor
spot
welding
power
sources,
DC
spot
welding
power
sources,
automatic
spot
welding
machines,
dynamic
performance
testers,
high-speed
mat
machines,
automatic
sorting
machines,
battery
performance
testers,
charge-discharge
aging
cabinets,
vision
detectors,
and
complete
battery
production
lines.
Q:
Do
you
support
after
sales
service?
A:
Yes,
we
provide
professional
installation
and
training,
with
a
two-year
warranty.
We
have
service
support
in
Europe,
the
United
States,
Southeast
Asia,
and
India.
Q:
Is
the
quality
of
the
product
guaranteed?

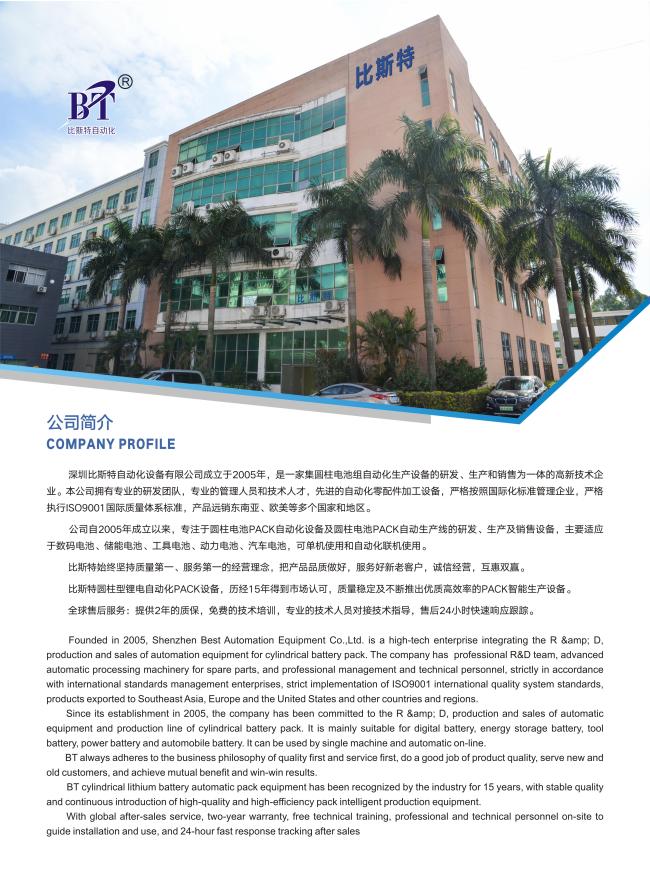

A:
As
a
high-tech
enterprise
established
in
2005,
we
maintain
strict
quality
control
with
a
"quality
first"
philosophy.
Our
products
have
satisfied
customers
worldwide.
Q:
What
scope
does
the
product
apply
to?
A:
Our
battery
production
equipment
is
used
for
digital
batteries,
energy
storage
batteries,
tool
batteries,
power
batteries,
and
automotive
batteries.
