| Price | Negotiable |
| MOQ | 1Unit |
| Delivery Time | 30 Days after advance payment |
| Brand | TECHWAY |
| Place of Origin | China |
| Certification | CE |
| Model Number | HGY-13,HGY-15, HGY-17,HGY-19,HGY-21 |
| Packaging Details | Nude in Container, 1x40'HQ |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 Units per month |
| Brand Name | TECHWAY | Payment Terms | L/C, T/T |
| Place of Origin | China | Price | Negotiable |
| Delivery Time | 30 Days after advance payment | Minimum Order Quantity | 1Unit |
| Packaging Details | Nude in Container, 1x40'HQ | Model Number | HGY-13,HGY-15, HGY-17,HGY-19,HGY-21 |
| Supply Ability | 100 Units per month | Certification | CE |

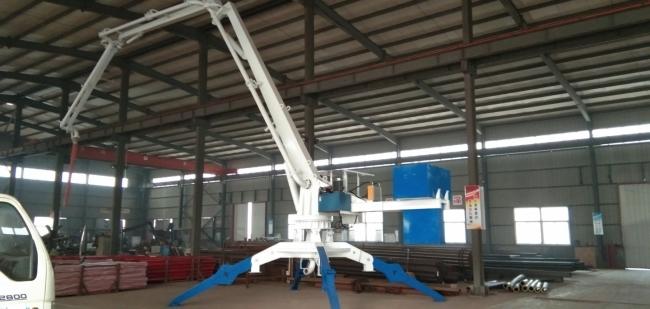

Hydraulic Mobile Placing Boom for Concrete Distribution /Mini placing boom/360° rotation angle placing boom with 3m hose
Features:
Concrete Placing Boom ( 13m,15m, 17m,19m ,21m 3booms)
1.The machine is fully driven by hydraulic and can slewing 360°
2.The balance valves are products of Oil control Company of Italy , And the solenoid directional valves are products of Rexroth Company of Germany
3.The main electric components are products of the world-renowned companies such as Omron Company or Schneider Company
4. There are two modes of operation: radio remote control cable remote control.
Specifications:
| Model | HGY13 | HGY-15 | HGY-17 | HGY-19 | HGY-21 |
|---|---|---|---|---|---|
| Horizontal reach (m) | 13 | 15 | 17 | 19 | 21 |
| Length of hose (m)360360 | 3 | 3 | 3 | 3 | 3 |
| Rotation angle (°) | 360 | 360 | 360 | 360 | |
| Elivation angle (°) | 2-84 | 2-84 | 0-90 | 0-90 | 0-90 |
| Hydraulic system power (kw) | 4 | 4 | 4 | 5.5 | 5.5 |
| Working pressure (Mpa) | 20 | 20 | 20 | 22 | 22 |
| Weight (no counterweight) | 2.7 | 3.2 | 4.94 | 5 | 5.05 |
| Counter weight | 1.6 | 2.2 | 2.1 | 3.2 |

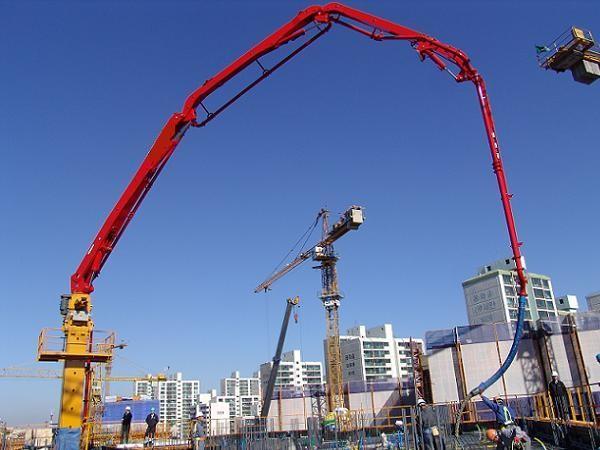

Case Show:
