| Price | Negotiable |
| MOQ | 100m |
| Delivery Time | 15 Days after advance payment |
| Brand | TECHWAY |
| Place of Origin | China |
| Certification | CCC |
| Model Number | YCT3*16+2*6mm² |
| Packaging Details | Pallet in Container, Less Container Loading |
| Payment Terms | L/C, T/T |
| Supply Ability | 20,000m per month |
| Place of Origin | China | Packaging Details | Pallet in Container, Less Container Loading |
| Outer Diameter (mm) | 23.5-29.7 | Model Number | YCT3*16+2*6mm² |
| Supply Ability | 20,000m per month | Certification | CCC |
| Brand Name | TECHWAY | Payment Terms | L/C, T/T |
| Outer Sheath Thickness (mm) | 3.7 | Price | Negotiable |
| Delivery Time | 15 Days after advance payment | Minimum Order Quantity | 100m |
| Cross Section (mm²) | 3x16+2x6 |
Building Hoist Parts Electrical Cable with Copper and Water Resistance Rubber for Cable Trolley Usage

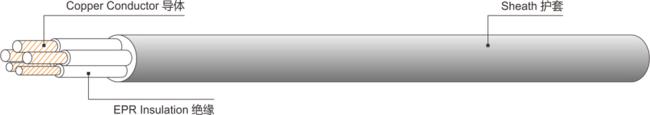

Building Hoist Power Cable

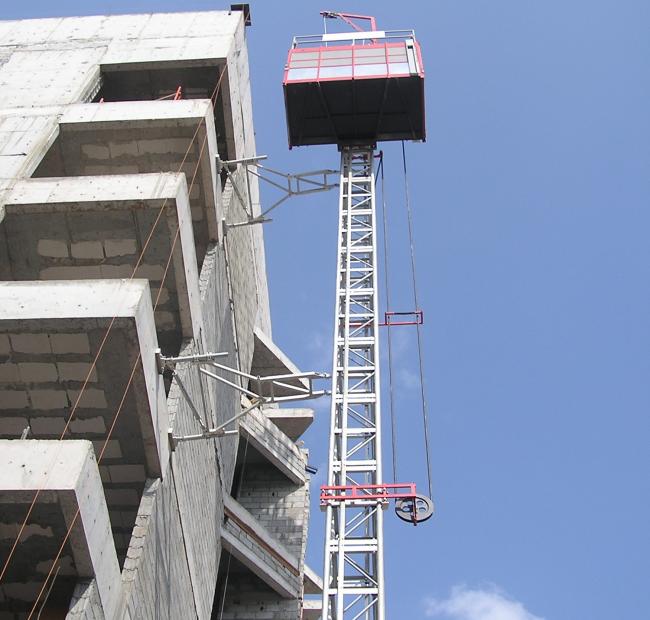

The power cable is specially designed for building hoist and tower crane basing on the extra heavy duty carried by those machines. It can be used at rated average voltage 450/750V.
By changing the combination of rubber formula, the resistance to impact and reiction is greatly increased while the cable is also capable of undertaking greater mechanical force. Comparing to general flexible rubber cable, we are more suitable for equipment used in contruction site.
| Cores x Nominal Cross Section (mm²) |
Outer Sheath Thickness (mm) |
Averages Outer Diameter (mm) | |
| Minimum | Maximum | ||
| 3x10+1x6 | 3.4 | 21.0 | 25.5 |
| 3x16+1x6 | 3.6 | 22.4 | 28.4 |
| 3x16+1x10 | 3.6 | 23.5 | 29.5 |
| 3x25+1x10 | 4.1 | 27.3 | 34.5 |
| 3x25+1x16 | 4.1 | 28.0 | 35.2 |
| 3x10+2x16 | 3.5 | 21.4 | 27.1 |
| 3x16+2x16 | 3.7 | 23.5 | 29.7 |
| 3x16+2x10 | 3.7 | 25.5 | 31.7 |
| 3x25+2x10 | 4.2 | 28.6 | 36.1 |
| 3x25+2x16 | 4.2 | 29.9 | 37.4 |
Other sizes can be customized, such as cable with extra control signal wires, cable with steel wire rope in side, etc.
