| Price | Negotiable |
| MOQ | 1 piece |
| Delivery Time | Negotiable |
| Brand | Zetron |
| Place of Origin | China |
| Certification | CE |
| Model Number | MIC-1000A |
| Packaging Details | paper carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Consumption | ≤10W(according to different channels) | Alarm mode | Audible, visual |
| Place of Origin | China | Input signal | RS-485/ 4-20mA |
| Size | 400mm*280mm*80mm | Packaging Details | paper carton |
| Power supply | AC220V±15%, 50Hz±1% | Model Number | MIC-1000A |
| Certification | CE | Weight | About 3.6kg |
| Brand Name | Zetron | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Product name | gas alarm controller | Output voltage | DC24V±15% |
| Minimum Order Quantity | 1 piece | Installation mode | Wall-mounted |

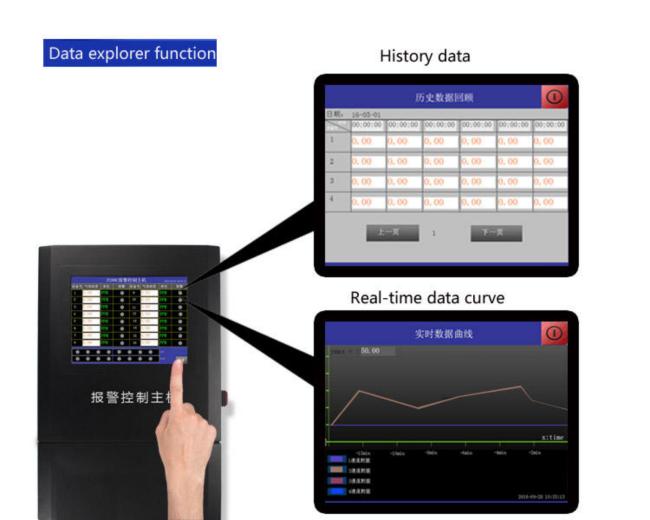

| Display | 8 inch TFT LCD touch screen |
MIC-1000A Gas Detector Controller
With new design of Touchful screen, simple operation. It could connct the MIC1000A fixed gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal. Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The MIC1000A Combustible Gas detector controller and MIC1000A is Alarm control main engine wireless it could guarantee the security of the industrial working place.
| Item | Description |
| Product name | Gas detection controller |
| Display | 8 inch TFT LCD touch screen |
| Power supply | AC220V±15%, 50Hz±1% |
| Consumption | ≤10W(according to different channels) |
| Output voltage | DC24V±15% |
| Input signal | RS-485/ 4-20mA |
| Relay output | 4 relay output with optional NO or NC / customized |
| Relay contact capacity | 5A, 30VDC or 5A, 220VAC |
| Alarm mode | Audible, visual |
| Installation mode | Wall-mounted |
| Suitable gas detector | ES10b Fixed gas detector with RS485 signal output |
| Gas detector quantity | ≤64pc |
| Communication distance | ≤2000m |
| Working temperature | -10℃~+50℃ |
| Working humidity | 10~95%RH(Non-condensation) |
| Size | 400mm*280mm*80mm |
| Weight | About 3.6kg |
| Protection grade | IP54 |
| Quality standard | GB 16808-2008 GB 15326-1994 |
| Certificate | CE, RoHS |
· Advance micro-processing technology
· Good stability, high precision
· Universal, 4-20mA input
· High light LED nixie tube display the concentration, with two levels alarm setting
· With lock and voice elimination function
· Relay output
· 4-20mA output (optional)
· Install method: wall mounted
The MIC1000A Gas detection controller used to connect with the fixed gas detector and the related equipment in industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
Q: What is your terms of payment ?
A: We accept trade assurance, western union ,Visa master card and tt.
Trade assurance can protect you, when you confirm the product then the money into my account.
Q: When do you reply to messages?
A: We will reply you for your inquiry in 24 hours.
Q: What is the warranty for your product ?
A: Warranty: 12 months, Lifetime maintenance
Q: When do you send the products? And how do you send it ?
A: For the small order, we will send out the goods with 5 days,If have stock ,we will send immediately.
We send them by ups, fedex, tnt or dhl. For big order, normal is 20 days will finish.
Q:Do you accept OEM or revised logo, color, model, size?
A:Yes, we accept OEM for the qualify buyer.We can make the products according to customer personal requirement.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: How about your after-sale service?
A: After sending, we will track the products for you , until you get the products.
When you got the goods, test them, and give me a feedback.
If you have any questions about the problem, contact with us, we will offer the solve way for you.
