| Price | Negotiable |
| MOQ | 1 Set |
| Delivery Time | 45 Days |
| Brand | HOLD |
| Place of Origin | Guangdong China |
| Certification | CE |
| Model Number | HB606 |
| Packaging Details | Poly Wrapping Or Wood cases |
| Payment Terms | LC/ TT |
| Supply Ability | 10 Set / Month |
| Vertical drill row power | 1.1kw*2+1.5kw | Horizontal drill row power | 1.5kw |
| Mechanical dimension | 3900*1320*1850mm | Place of Origin | Guangdong China |
| Maximum distance between horizontal drill shafts | 640mm | Feeding speed | 70m/min |
| Feeding motor power | 0.5kw*2 | Packaging Details | Poly Wrapping Or Wood cases |
| Maximum vertical drilling depth | 70mm | Model Number | HB606 |
| Supply Ability | 10 Set / Month | Certification | CE |
| Brand Name | HOLD | Payment Terms | LC/ TT |
| Minimum vertical drill row spacing | 128mm | Maximum workpiece thickness | 50mm |
| Drill shaft speed | 2800rpm(50Hz) | Working pressure | 0.6-0.8Mpa |
| Price | Negotiable | Delivery Time | 45 Days |
| Minimum Order Quantity | 1 Set | Maximum machining width (x-axis) | 2450mm |
| Vertical box power | 0.75kw*5 | Maximum horizontal drilling depth | 40mm |
Horizontal four-row Wood Boring Machine Multi Head Drilling Machine HB606
We
have
exported
to
many
countries,
such
as
American,
UK,
Canada,
Malaysia,
Kuwait,
New
Zealand
Australia,
Bahrain,
UAE,
Uzbekistan,
Saudi
Arabia,
India,
South
African,
Pakistan,
Ecuador,
Brunei,
Zimbabwe.
Sudan
and
so
on.
And
we
build
many
stable
agents
in
American,
Malaysia,
Sudan,
etc.
We
have
a
professional
technician
team,
who
can
design
the
plant
view
and
install
the
machine
lines
at
the
request
of
the
client.
As
well
as
the
satisfying
pre-sale
service
and
after-sales
service,
overseas
service!
Quick information
| Model | HB610i |
|
Max
drilling
diameter
|
35mm |
| Max drilling depth | 50mm |
| Vertical drilling distances | 130-2450mm |
| Drilling spindle diameter | 10mm |
| Feeding speed | 60m/min |
| Spindle numbers | |
| running speed | 2800r/min |
| motor power | 16.5kw |
| air pressure | 0.6-0.8MPa |
| Dimension(L*W*H) | 4500*3000*1650mm |
| Weight |
3000kg
|

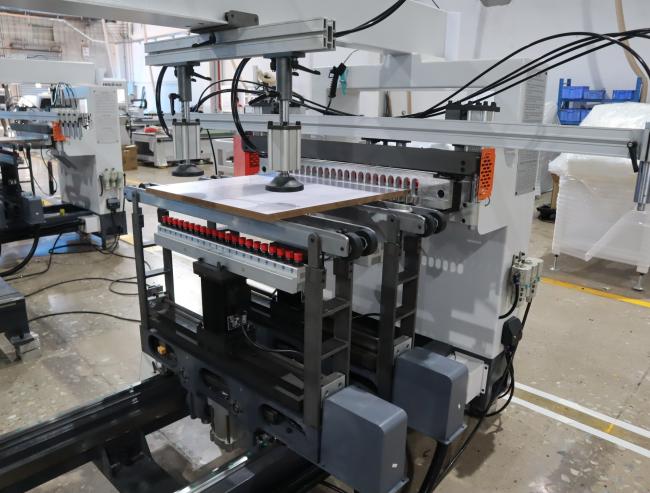

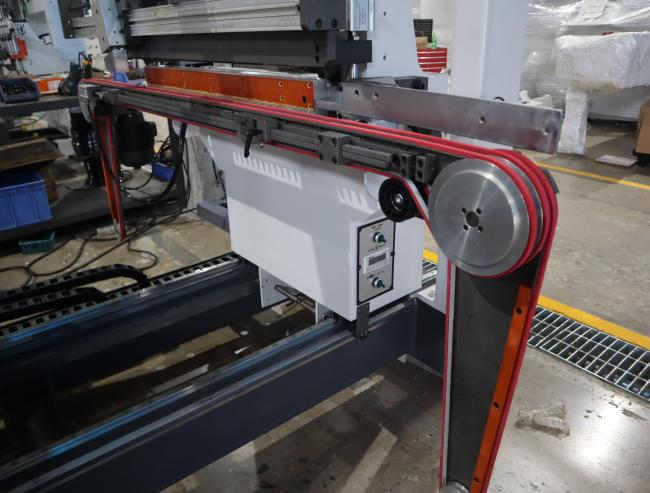

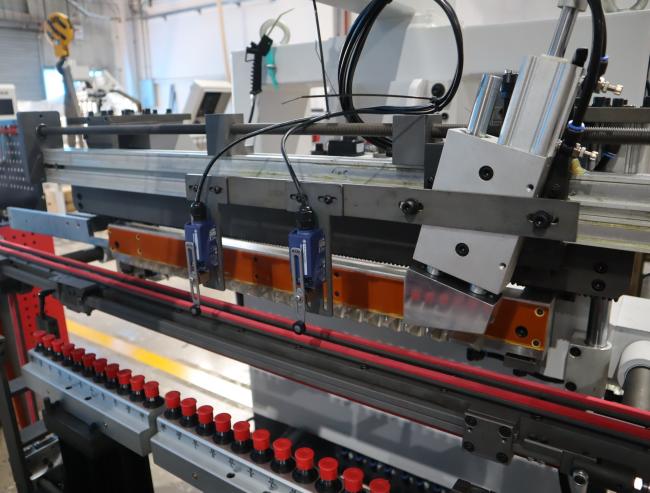

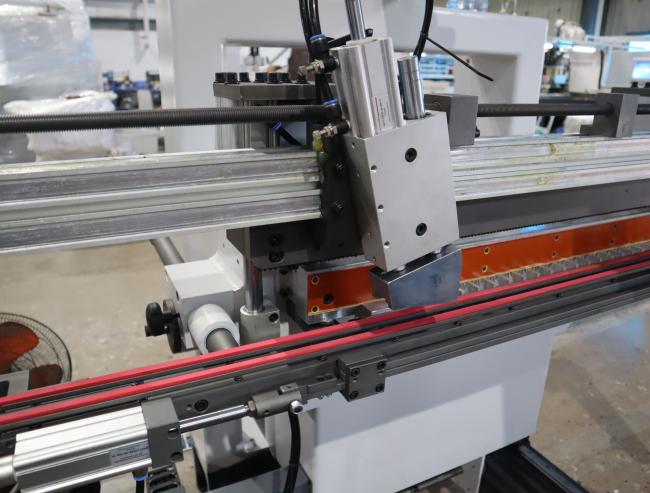

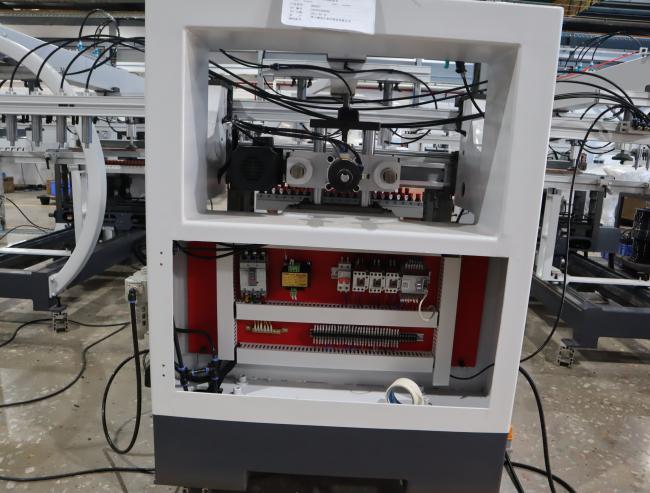

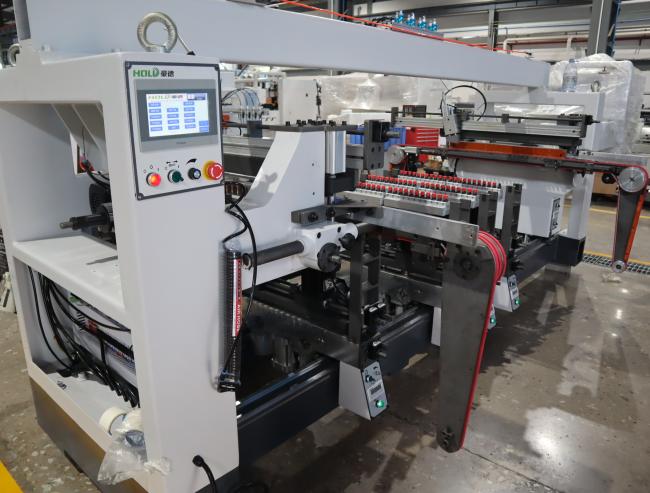

More photos to show the detail.
If want to know more about our products by video, please click the below link:
About
our
company
One-stop solution for interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1.
Do
you
have
the
machine
in
stock?
Sorry,
we
don't
have
the
machine
in
stock,
edge
banding
machine
has
many
options
such
as
voltage,
speed,
function,
and
so
on,
So
it's
hard
to
prepared
samples.
2.
How
long
is
your
delivery
time?
For
our
standard
model,
the
delivery
time
is
around
1.5~2
months.
For
the
customized
model,
the
delivery
time
is
around
2~3
months.
It
depends
on
the
client's
project
and
quantity.
3.
Do
you
have
a
factory?
Yes,
we
have
our
own
factory
and
we
promise
direct
sales
at
a
competitive
price.
Welcome
to
visit
our
factory
at
any
time.
