| Price | Negotiable |
| MOQ | 500PCS |
| Delivery Time | 5-7 Days |
| Brand | Tian Rui |
| Place of Origin | China |
| Certification | ROHS REACH |
| Model Number | 6x32mm Ceramic Fuse |

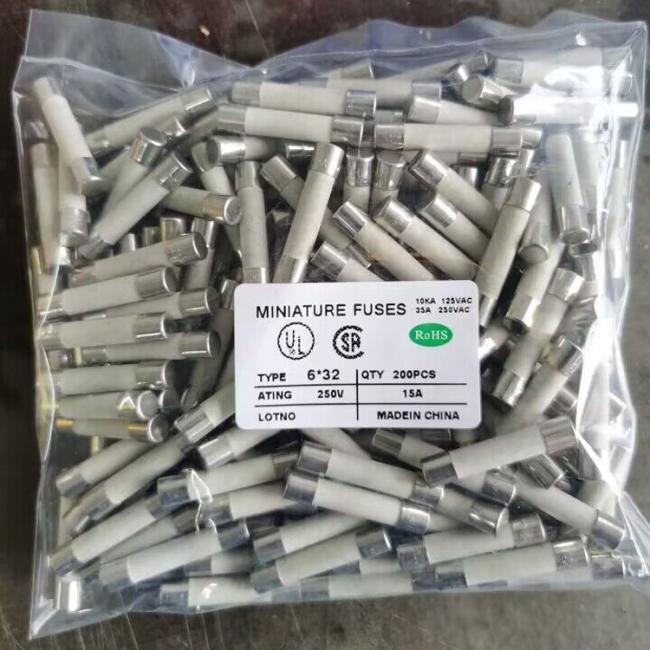

| Packaging Details | 200PCS/Bag |
| Payment Terms | D/P, T/T,Paypal, Western Union |
| Supply Ability | 1000000PCS/Month |
| End Caps | Copper | Place of Origin | China |
| Tube | Ceramic Tube | Packaging Details | 200PCS/Bag |

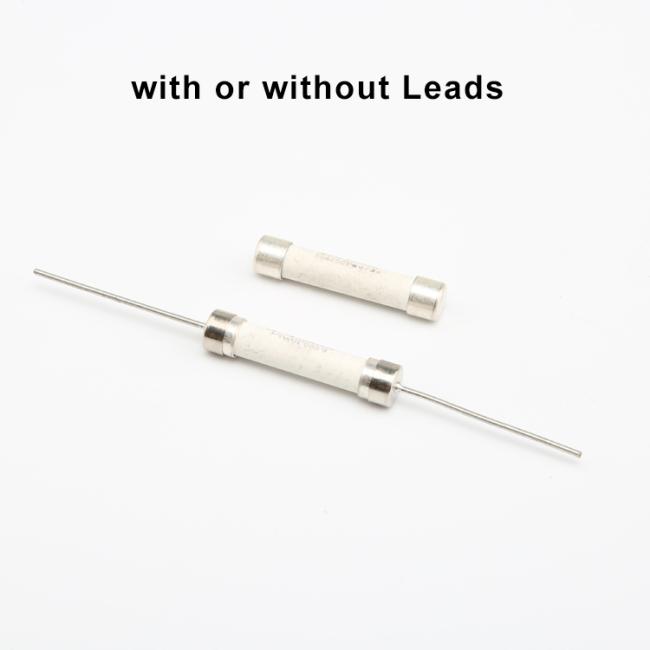

| Product Name | 6x32mm Miniature Cartridge Fuse | Leads | with or without Axial Leads |
| Model Number | 6x32mm Ceramic Fuse | Supply Ability | 1000000PCS/Month |
| Certification | ROHS REACH | Brand Name | Tian Rui |

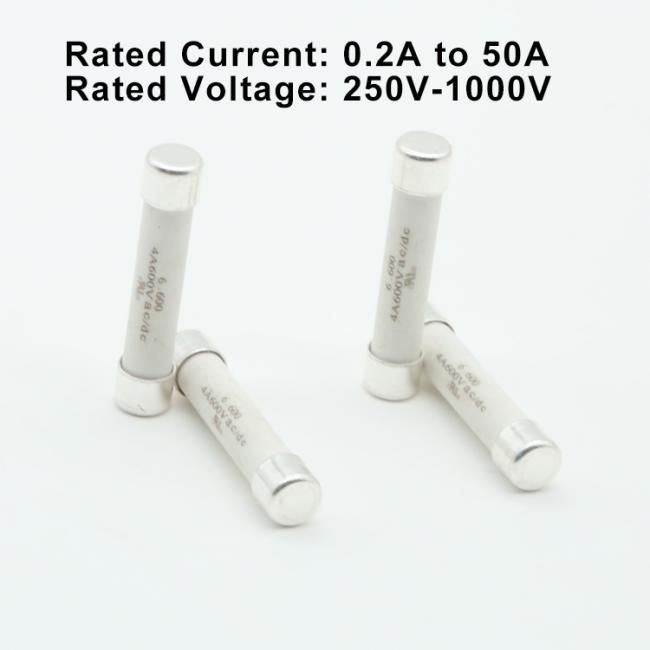

| Payment Terms | D/P, T/T,Paypal, Western Union | Rated current | 0.2A-50A |
| Type | Fast Acting | Price | Negotiable |
| Delivery Time | 5-7 Days | Rated voltage | 250V-1000VAC/DC |
| Storage conditions | +10℃ to +60℃ | Minimum Order Quantity | 500PCS |
| Breaking Capacity | 5kA | Operating temperature | -55℃ to +125℃ |

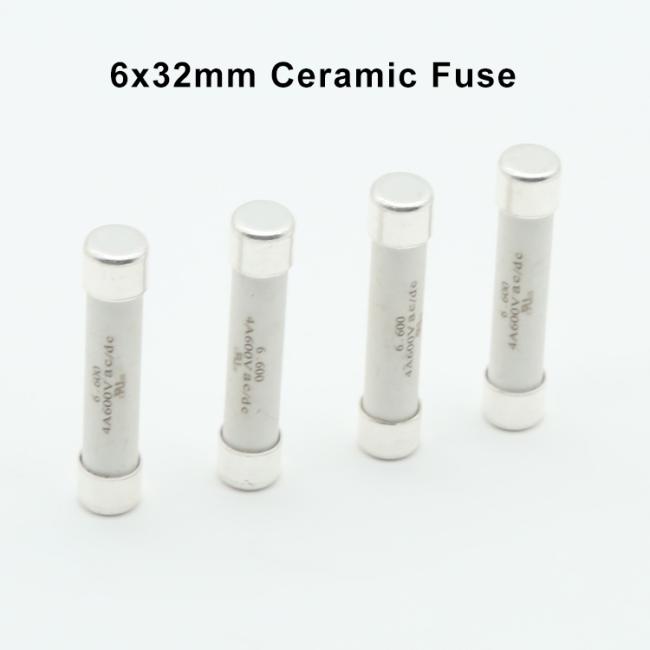

0.2A to 50A 250VAC 250VDC 300VAC 300VDC 500VAC 500VDC 600VAC 600VDC 750VAC 750VDC 1000VAC 1000VDC 10KA Fast Acting 6x32mm Ceramic Fuse

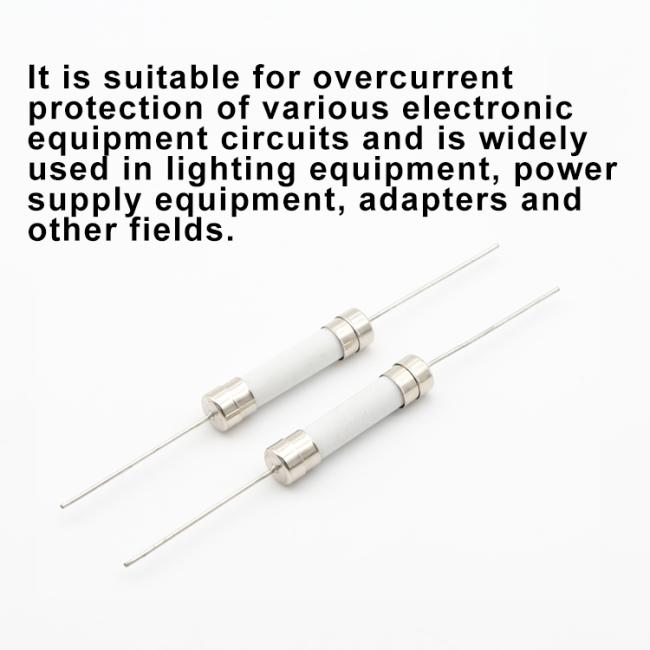

This
product
is
suitable
for
various
kinds
of
electronic
devices’
circuit
over
current
protection.
Widely
used
in
industrial
of
Lighting,
Power
supply
and
Adapter
applications,
etc.

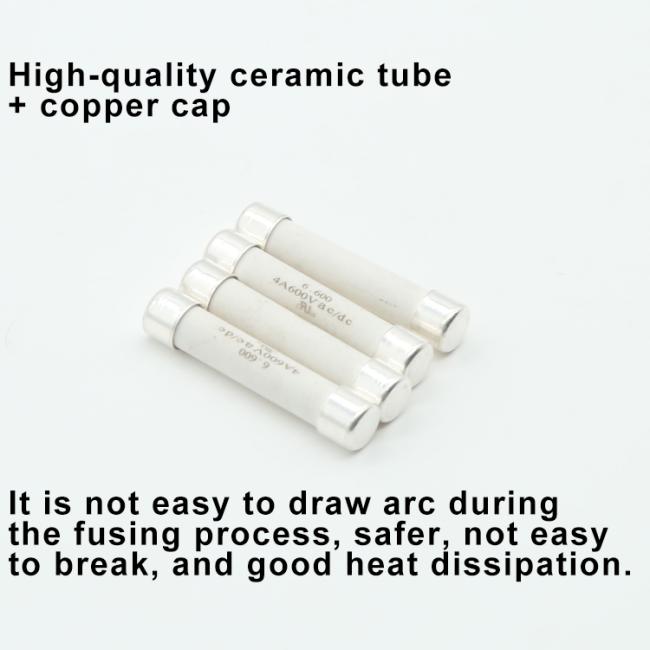

Materials Details
| No. | Part Name | Material |
| 1 | Cap | Nickel Plated Copper |
| 2 | Body | Ceramic |
| 3 | Fuse element | Alloy |
| 4 | Leads | Nickel Plated Copper |
Product Performance
|
Rated Current |
Rated Voltage |
Nominal Melting I2t(A2sec) |
Breaking Capacity |
Approvals | |
| cURus | TUV | ||||
| 100mA |
|
0.002 |
1500A@250VAC (100mA~12A); 300A@250V AC (100mA~30A);
|
● | ○ |
| 125mA | 0.003 | ● | ○ | ||
| 160mA | 0.005 | ● | ○ | ||
| 200mA | 0.010 | ● | ○ | ||
| 250mA | 0.020 | ● | ○ | ||
| 300mA | 0.04 | ● | ○ | ||
| 315mA | 0.045 | ● | ○ | ||
| 350mA | 0.055 | ● | ○ | ||
| 400mA | 0.070 | ● | ○ | ||
| 500mA | 0.100 | ● | ○ | ||
| 630mA | 0.200 | ● | ○ | ||
| 750mA | 0.350 | ● | ○ | ||
| 800mA | 0.450 | ● | ○ | ||
| 1.00A | 0.900 | ● | ○ | ||
| 1.25A | 1.300 | ● | ○ | ||
| 1.50A | 1.600 | ● | ○ | ||
| 1.60A | 2.500 | ● | ○ | ||
| 2.00A | 5.800 | ● | ○ | ||
| 2.50A | 7.600 | ● | ○ | ||
| 3.00A | 8.100 | ● | ○ | ||
| 3.15A | 11 | ● | ○ | ||
| 3.50A | 19 | ● | ○ | ||
| 4.00A | 28 | ● | ○ | ||
| 5.00A | 40 | ● | ○ | ||
| 6.00A | 50 | ● | ○ | ||
| 6.30A | 64 | ● | ○ | ||
| 7.00A | 107 | ● | ○ | ||
| 8.00A | 133 | ● | ○ | ||
| 10.00A | 242 | ● | ○ | ||
| 15.00A | 388 | ● | ○ | ||
| 16.00A | 388 | ● | ○ | ||
| 20.00A | 442 | ● | ○ | ||
| 25.00A | 568 | ● | ○ | ||
| 30.00A | 730 | ● | ○ | ||
