| Price | USD70-100 |
| MOQ | 5pcs |
| Delivery Time | 10-30days |
| Brand | ANS |
| Place of Origin | China |
| Certification | TUV/CE/UL/RoHS/REACH |
| Model Number | ANSAG-T1-T2-32A |
| Packaging Details | Carton box. Carton size: 43*43*21cm |
| Payment Terms | T/T, Western Union,Paypal, L/C, L/C |
| Supply Ability | 600pcs/day |
| Cable Spec | 3*6+2*0.5mm2 | Place of Origin | China |
| Packaging Details | Carton box. Carton size: 43*43*21cm | Cable Material | TPU |
| Material | TPU cable | Model Number | ANSAG-T1-T2-32A |
| Supply Ability | 600pcs/day | Certification | TUV/CE/UL/RoHS/REACH |
| Plug color | Green | Brand Name | ANS |
| Payment Terms | T/T, Western Union,Paypal, L/C, L/C | OEM Color | Yes |
| Price | USD70-100 | Delivery Time | 10-30days |
| OEM Branding | Yes | Halogen-free | Yes |
| Minimum Order Quantity | 5pcs | Cable color | Black or customized |
| IP Grade | IP66 |
Straight TPU ev cable cord in 7kW Type 1 to Type 2 ev charging cable
The ANSAG-T1-T2-32A is suitable for all modern electric vehicles with Type 1 sockets. The cable has a charging capacity of up to 7kW, 32A 1phase. The cable would reach up to IP66 under working standard.
Characteristics
using riveting pressure process with no screw, have a beautiful appearance. Hand-held design conforms to the ergonomic principle, plug conveniently.
XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improved the bending life and wear resistance of the cable.
Excellent protection performance, protection grade achieved IP55(working condition).
Adopted combined color coating technology, personalized custom a variety of colors(orange, blue, green, grey, white)
Specification:
|
product application |
Electric vehicle |
|
rated current |
32A |
|
rated voltage |
250V |
|
Mechanical life |
no-load plug >10000 times |
|
Withstand voltage |
2500V |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Operating temperature |
-30 ºC ~ +50 ºC |
|
Cable Size |
3*6+2*0.5mm2 |

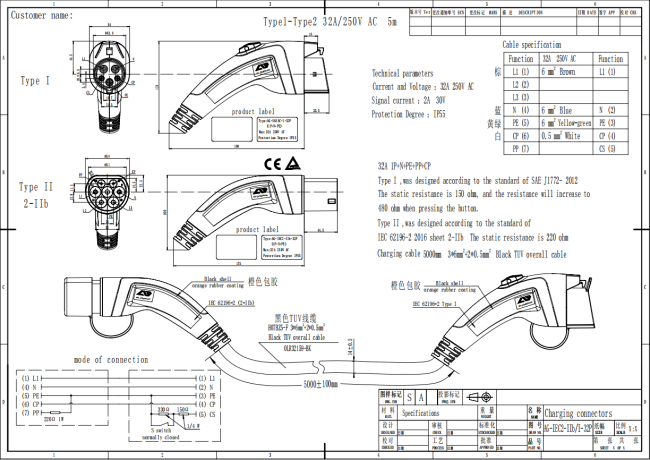

Drawings and appearance:

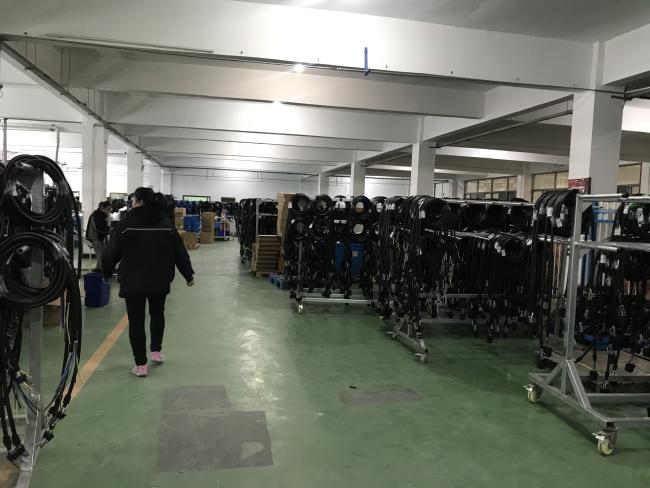

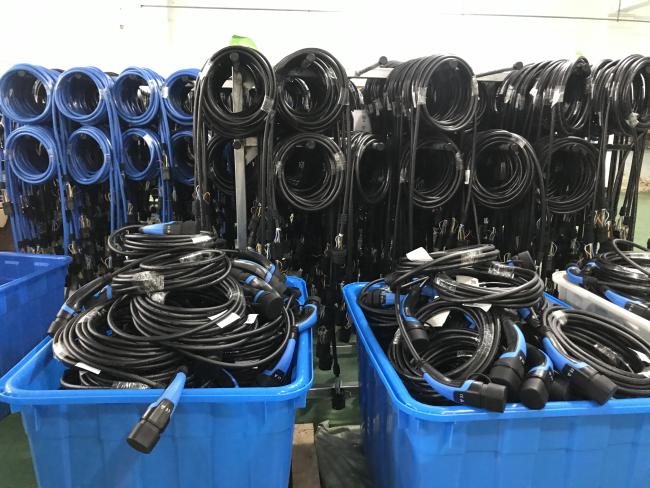

Workshop Overview
