Price	USD
MOQ	1pc
Delivery Time	20days
Brand	ANS
Place of Origin	China
Certification	CE
Model Number	ANS-DC-45kW
Packaging Details	wood standard package
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	20pcs a day

Product Details

product name	Portable Quick EV Charger	Input frequency	50Hz
Place of Origin	China	Packaging Details	wood standard package
Output Current	66A, 500V	Dimension	600mm600mm240mm
Model Number	ANS-DC-45kW	Supply Ability	20pcs a day
Certification	CE	Brand Name	ANS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Price	USD
Delivery Time	20days	Efficiency	3Phase
Minimum Order Quantity	1pc	power	45kW
Operation Temperature	-20℃- +45℃

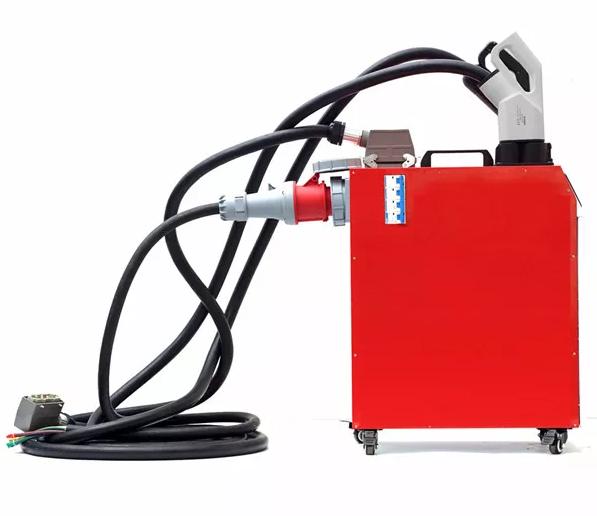

45kW CHAdeMO Charging Station with CHAdeMo Plug and CCS Combo 2 Plug Portable Quick EV Charger

It is supporting CCS and CHAdeMO only by replace the cable.
USB for firware update and RJ45 port for internet connect(optional)
Open door design,it is convenient to replace power module.
Real-time display: 4.3 inches LCD touch screen display with indicator function,which can remaining battery power,charging voltage,current,charging time and the charger’s failure state.
With emergency stop system: it can cut off the output current at the first time in an emergency.The air switch can cut off the AC input.
input cable and output cable stored separately.The connect between AC input charger connector and DC output charger are detachable connector.

input voltage	220/380/400/415/440 ±15% VAC,3Φ3L+PE,3Φ3L+N+PE
input frequency	50/60Hz±10%
input power factor	≥0.95
input THD current	≤5%
support battery	LiFePO4,li-ion,Lead acid etc
output voltage	50-500VDC
output power	0-25kW
output current	0-66A
output voltage accuracy	±0.1%
output current accuracy	±0.1%
output ground protection	support
HMI and command unit	LCD touch display
emergency stop	support
overall efficiency	93%
support protocol	GB,CHAdeMO,SAE,OCPP etc
parallel operation	support parallel operation
insulation test	Input&Output to Ground 1500V,Control Circuit to Ground 500V
protection degree	IP23 indoor / IP55 outdoor
overall weight	36kg
standard	GB,EN 61851; EN61000; JEVS; UL2202, 2231-1, 2231-2 ect

Certification: CE

45kW CHAdeMO Charging Station Portable EV Fast Charger With CCS Combo 2 Plug
