| Price | USD |
| MOQ | 1pc |
| Delivery Time | 20-30days |
| Brand | ANS |
| Place of Origin | China |
| Certification | TUV,CE |
| Model Number | ANS-RCD-32A |
| Packaging Details | standard export package |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs a day |
| Poles | 4Pole (3P+N) | Place of Origin | China |
| Packaging Details | standard export package | Standard | IEC 61008-1, IEC 62423 |
| Model Number | ANS-RCD-32A | Supply Ability | 1000pcs a day |
| Certification | TUV,CE | Brand Name | ANS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Price | USD |
| Delivery Time | 20-30days | Product name | Residual Current Circuit Breaker |
| Rated voltage | 4Pole: 400V/415V | Minimum Order Quantity | 1pc |
| Rated residual operation current | 30mA | Rated Current | 63A |
| Short-circuit current Inc | Ic 10000A | Rated frequency | 50/60Hz |
| DC | DC 6mA |

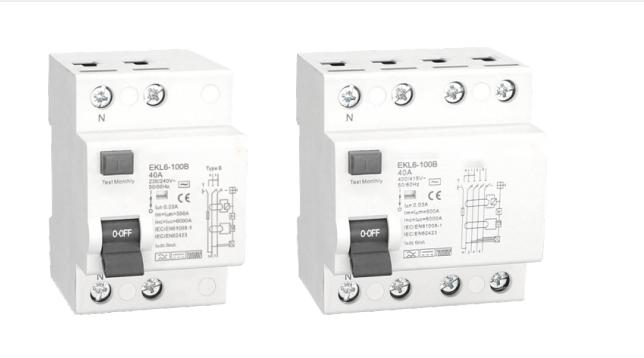

10KA 63A 415V B Type RCCB with DC 6mA Protection Residual Current Circuit Breaker
Technical Data
| Mode | Electromagnetic | ||||||||
| Type(wave form of the earth leakage sensed) Rated current In |
B 25,40,63A |
||||||||
| Poles | 2P,4P | ||||||||
| Rated voltage Ue | 2P 240V~, 4P 415V~ | ||||||||
| Insulation voltage Ui | 500V | ||||||||
| Rated frequency | 50/60Hz | ||||||||
| Rated residual operation current(I△n) | 30mA | ||||||||
| Rated residual operating current(I△dc) | 6mA | ||||||||
| Rated residual making and breaking capacity (I△m) | 500A(In≤40A), 10In(In＞40A) | ||||||||
| Short-circuit current Inc= I△c | 10,000A 10000 | ||||||||
| Break time under I△n Rated impulse withstand voltage(1.5/50) Uimp | ≤0.1s 4000V | ||||||||
| Dielectric test voltage at ind.Freq. for 1min | 2.5kV | ||||||||
| Electrical life | 2,000 Cycles | ||||||||
| Mechanical life | 4,000 Cycles | ||||||||
Installation
| Contact position indicator | Yes | ||||||||
| Protection degree Ambient temperature(with daily average≤35℃) |
IP20 -5℃~+40℃ |
||||||||
| Storage temperature | -25℃~+70℃ | ||||||||
| Terminal connection type | Cable/Pin-type busbar/U-type busbar | ||||||||
| Terminal size top/bottom for cable | 35mm2 18-3AWG | ||||||||
| Terminal size top/bottom for busbar | 35mm2 18-3AWG | ||||||||
| Tightening torque | 2.5Nm 22In-lbs | ||||||||
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device | ||||||||
| Connection | Power supply in both directions | ||||||||
| Lagging Angle 0° |
I△n＞0.01A 0.35I△n≤I△≤1.4I△n |
I△n≤0.01A 0.35I△n≤I△≤2I△n |
|||||||||||||||||||||||||||||
| 90° | 0.25I△n≤I△≤1.4I△n | 0.25I△n≤I△≤2I△n | |||||||||||||||||||||||||||||
| 135° | 0.11I△n≤I△≤1.4I△n | 0.11I△n≤I△≤2I△n | |||||||||||||||||||||||||||||
Certification:TUV
