| Price | Negotiable |
| MOQ | 3Pieces |
| Delivery Time | 5-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou China |
| Certification | ISO/TS16949:2009 |
| Model Number | 6×2 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union, Paypal or Others |
| Supply Ability | 1000PCS/Week |
| Air hole | G1/2 | Place of Origin | Guangzhou China |
| Warranty | 12 MONTHS | Number of convolutions | 2 |
| Top plate | 153.5mm | Packaging Details | Strong Carton Box or as Customers Requirement |
| Material | Rubber + Steel | Model Number | 6×2 |
| Supply Ability | 1000PCS/Week | Pressure | 0.2-0.8MPA |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union, Paypal or Others | Type | Convoluted Air Springs |
| OEM No. | Contitech FD 76-14 DS CR | Packing | Neutral Box Or As Customers' Request |
| Delivery Time | 5-8 Working Days | Minimum Order Quantity | 3Pieces |
| Certificate | ISO/TS16949:2009 |
Contitech FD 76-14 DS G1/2 CR Air Spring Replacement Double Convoluted Air Bags
OEM NO.
ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Norgren: M/31062 / M 31062 / M31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)
Specifications and Detailed Technical Parameters: 6×2
Top plate screw (nut) teeth: 4×M10
Screw (nut) teeth of the bottom cover plate: 4×M10
The screw center distance:127mm
Air hole/air inlet: G1/2
Top plate diameter (width): 153.5 mm
Diameter (width) of the bottom cover plate: 153.5 mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 175MM
Rubber bellows stroke: 80mm-195mm
Required installation space: 190mm
Without bumper block
With belt loop: One belt loop
Min. pressure: 0 bar
Return force to min.height: ≤180N
Overall weight with clamped plates: 2.6kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 155mm, minimum 145mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [KN] | 2.7 | 3.7 | 4.7 | 5.7 | 6.7 | 7.8 | 2.0 |
| Spring rate [N/cm] | 650 | 830 | 1015 | 1185 | 1360 | 1530 | |
| Natural frequency [Hz] | 2.5 | 2.4 | 2.3 | 2.3 | 2.3 | 2.2 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 170 | 2.2 | 3.0 | 3.8 | 4.7 | 5.6 | 6.5 | 2.1 |
| 150 | 2.8 | 3.9 | 4.9 | 6.0 | 7.1 | 8.2 | 1.9 | |
| 130 | 3.5 | 4.7 | 5.9 | 7.1 | 8.4 | 9.7 | 1.7 | |
| 110 | 4.1 | 5.4 | 6.8 | 8.2 | 9.6 | 11.1 | 1.4 | |
| 90 | 4.7 | 6.3 | 7.9 | 9.5 | 11.1 | 12.8 | 1.1 | |
Other Types Contitech DS Air Spring Shocks We could provide
FS 76-7 DS CR;
FS 138-8 DS;
FS 138-8 DS;
FS 210-10 DS;
FS 412-10 DS;
FS 614-13 DS;
FS 816-15 DS;
FD 138-18 DS;
FD 209-21 DS;
FD 210-22 DS;
FD 412-18 DS;
FD 614-26 DS;
FD 816-30 DS;
FT 76-20 DS CR;
FT 138-26 DS;
FT 210-32 DS;
FT 412-32 DS;
FT 614-36 DS;
FT 816-40 DS

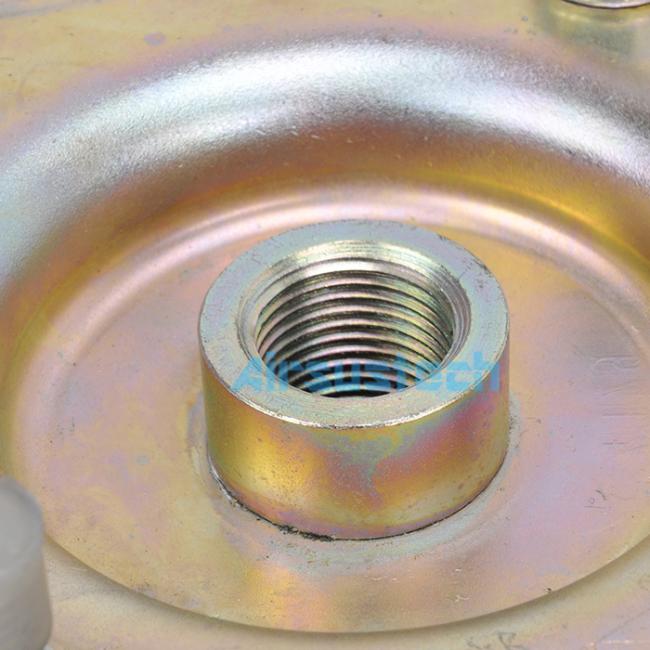

The related picture of 6×2
