| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1H7242 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Condition | 100% Brand-new | Place of Origin | Guangzhou, China |
| Warranty | 12 Months | Size | 33*33*22 |
| Packaging Details | Strong Carton Box or as Customers Requirement | Color | black |
| Material | Rubber+metal | Model Number | 1H7242 |
| Supply Ability | 1000pcs/week | Oe no. | 93166 |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union,Paypal or Others | Type | Suspension Spring |
| Packing | Neutral box or as customers' request | Delivery Time | 3-8 Working Days |
| Minimum Order Quantity | 3 pieces | Shock absorber type | Gas-Filled |
| Application | Air spring |

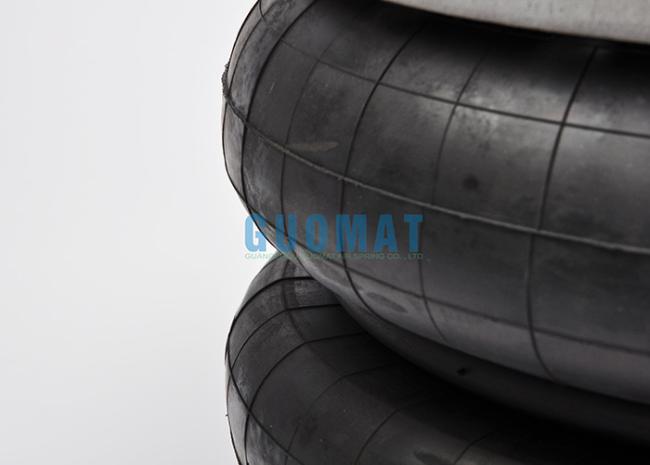

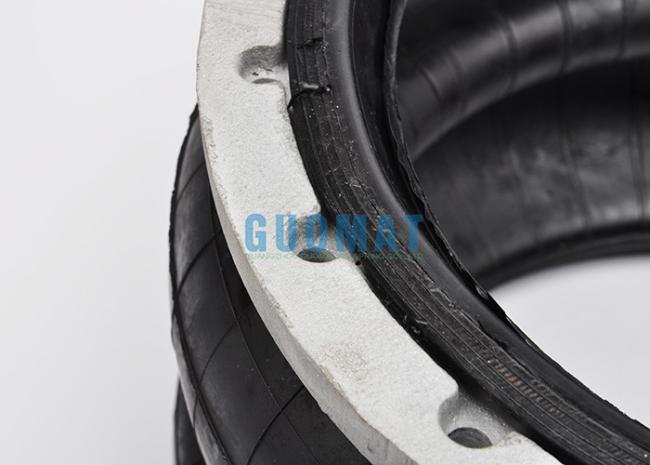

W01-358-7242 Double Convoluted Air Spring 93166 Bellows W01-358-7902 Style 29
AIRSUSTECH 1H7242 product description:
The air spring shock absorber AIRSUSTECH 1H7242 replace Air Spring 93166 Bellows W01-358-7902 Style 29 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber AIRSUSTECH 1H7242 replace Air Spring 93166 Bellows W01-358-7902 Style 29 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1H7242 replace Air Spring 93166 Bellows W01-358-7902 Style 29 must be used to absorb the force
• Before disassembling the air spring shock absorber AIRSUSTECH 1H7242 replace Air Spring 93166 Bellows W01-358-7902 Style 29, the internal air must be released to prevent accidents and personal injury.
• During operation, the rubber air spring shock absorber AIRSUSTECH 1H7242 replace Air Spring 93166 Bellows W01-358-7902 Style 29 shall not be in contact with other parts
AIRSUSTECH 1H7242 Cross OEM Original Equipment Manufacturer:
AIRSUSTECH Part Number:1H7242
TORPRESS Air Spring Bellows:29
TORPRESS Style:F2
Air Spring: MODEL 29
Air Spring:Standard Code 93166
Firestone Order Number: W01-358-7242 /
Firestone Order Number:WO13587242 /
Firestone Order Number:WO1-358-7242 /
Firestone Order Number:W013587242 /
Firestone Order Number:W01 358 7242
Firestone Part Number:W01-358-7242 /
Firestone Part Number:WO13587242 /
Firestone Part Number:WO1-358-7242 /
Firestone Part Number:W013587242 /
Firestone Part Number:W01 358 7242
Firestone Bellows Number: 29
| Force Table (Use for Airstroke™ actuator design) | |||||||
| Assembly Height (mm) | Volume @ 7 BAR (cu cm) | EFF Area @ 7 BAR (cm sq) | @ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR |
| 280 | 53863 | 1317 | 37.03 | 50.72 | 64.11 | 78.82 | 92.17 |
| 240 | 47704 | 1618 | 47.12 | 63.62 | 80.06 | 97.4 | 113.25 |
| 200 | 40443 | 1814 | 53.26 | 72.74 | 90.77 | 109.45 | 127 |
| 160 | 32306 | 1962 | 57.95 | 78.61 | 98.18 | 118.39 | 137.31 |
| 120 | 23824 | 2110 | 62.84 | 84.57 | 105.81 | 127.52 | 147.69 |
| 80 | 15280 | 2255 | 67.74 | 90.95 | 113.48 | 136.38 | 157.84 |
