Price	Negotiable
MOQ	3 pieces
Delivery Time	3-8 Working Days
Brand	AIRSUSTECH
Place of Origin	Guangzhou, China
Certification	ISO/TS16949, ISO9001
Model Number	1F6923
Packaging Details	Strong Carton Box or as Customers Requirement
Payment Terms	T/T, Western Union,Paypal or Others
Supply Ability	1000pcs/week

Product Details

Origin	China	Place of Origin	Guangzhou, China
Warranty	One Year	Position	Rear Air Springs
Packaging Details	Strong Carton Box or as Customers Requirement	HS Code	8708809000
Port	Huangpu, China	Specification	242422 cm
Material	Rubber and Iron	Model Number	1F6923
Trademark	Neutral	Supply Ability	1000pcs/week
Certification	ISO/TS16949, ISO9001	Brand Name	AIRSUSTECH
Payment Terms	T/T, Western Union,Paypal or Others	Pressure Ability	0.2-0.8 M PA
Type	air Suspension Spring	N.W.	2.2 Kg
Model NO.	1F6923	Delivery Time	3-8 Working Days
Transport Package	Cartons or as customer's need	OEM	86600
Minimum Order Quantity	3 pieces	Plates	Crimped Type

AIRSUSTECH 1F6923 Cross other OEM:

AIRSUSTECH 1F6923 Specifications and Technical Data

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 8 pcs X M8X1

Screw Center Distance of Top Cover Plate : 160.3 mm

Bottom Cover Plate Screw (Nut) Tooth : 8 pcs X M8X1

Screw Center Distance of Bottom Cover Plate : 160.3 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : NO

❸ Cover Plate

Top Cover Plate Diameter (Width): 179 mm

Bottom Cover Plate Diameter (Width): 179 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 255mm

Rubber Bellows Natural Diameter 224 mm

The Working Stroke : MAX 265 mm to MINn80 mm

Compressed Height: 80 mm / 3.12 inches

Design Height: 178mm-203mm / 7-8 inches

Bellows # NO.: 20

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

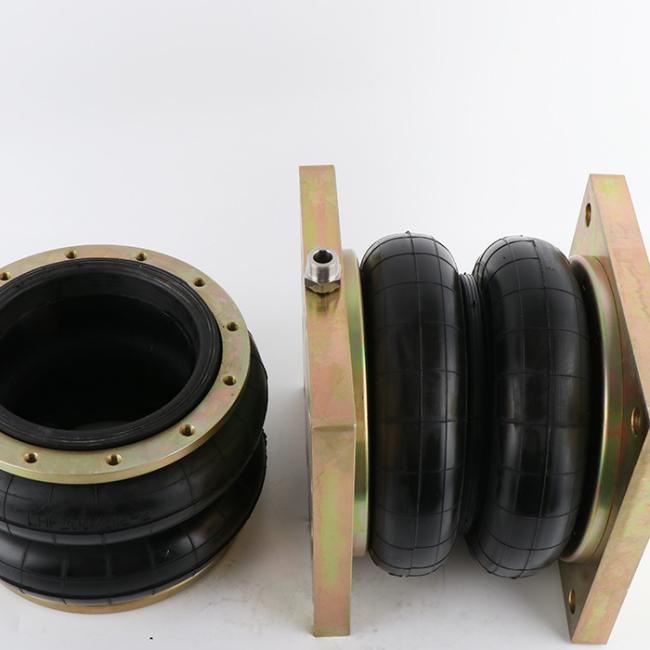

86600 Suspension Air Spring Torpress Air Actuators With Thread Hole 8pcs M8x1
