| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B7731 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Condition | 100% Brand-new | Place of Origin | Guangzhou, China |
| Warranty | 12 Months | Firestone Oe no. | 94047 |
| Size | 16*16*16 CM | Packaging Details | Strong Carton Box or as Customers Requirement |
| Color | Black | Material | Rubber+metal |
| Model Number | 1B7731 | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union,Paypal or Others | Type | Suspension Spring |
| Packing | Neutral box or as customers' request | Delivery Time | 3-8 Working Days |
| Minimum Order Quantity | 3 pieces | Shock absorber type | Gas-Filled |
| Application | Air spring |

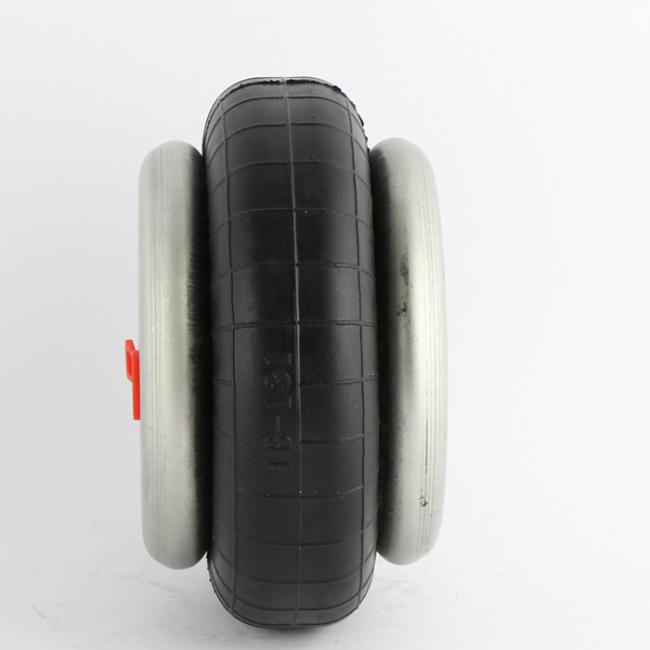

Air Spring Standard Code 94047 Model 131 Max OD 165 mm Air Inlet 1/4NPT
AIRSUSTECH 1B7731 can replace Air Spring Standard Code 94047 Model 131 product description:
The air spring shock absorber AIRSUSTECH 1B7731 can replace Air Spring Standard Code 94047 Model 131 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber AIRSUSTECH 1B7731 can replace Air Spring Standard Code 94047 Model 131 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B7731 can replace Air Spring Standard Code 94047 Model 131 must be used to absorb the force
• Before disassembling the air spring shock absorber AIRSUSTECH 1B7731 can replace Air Spring Standard Code 94047 Model 131 , the internal air must be released to prevent accidents and personal injury.
• During operation, the rubber air spring shock absorber AIRSUSTECH 1B7731 can replace Air Spring Standard Code 94047 Model 131 shall not be in contact with other parts
| 1B7731 Technical Parameters | |
| Top Cover Plate Diameter | 114.5 MM |
| Bottom Cover Plate Diameter | 114.5 MM |
| Screw Center Distance | 44.5MM |
| Distance Gas Hole Between Nut | 22.25MM |
| Gas Hole | 1/4NPTF |
| Top Screw (Nut) Tooth |
2pcsX3/8” - 16 UNC
|
| Bottom Screw (Nut) Tooth |
2pcsX3/8” - 16 UNC
|
| Rubber Bellows Diameter | Natural Φ145MM |
| The Height | Natural 90 MM |
| Connection | P1 |
| Max OD | 165 MM |
| Min. Height | 50 MM |
| Max. Height | 110 MM |
type 131B air spring,
type 1 bead plate,
(2) 16 blind nuts,
located at 1.75" center,
1/4" NPT center port
AIRSUSTECH 1B7731 Cross OEM Original Equipment Manufacturer:
AIRSUSTECH Part Number:1B7731
AIRSUSTECH Bellow Number:1B-131
AIRSUSTECH Bellow Number:1B 131
AIRSUSTECH Bellow Number:1B131
Air Spring Standard Code 94047
Model 131
Torpress Model 131
Connection P1
Firestone Bellows Number: 131
Firestone Bellows Number: W01-358-0131
Firestone Bellows Number: W01 358 0131
Firestone Bellows Number: W013580131
Firestone Bellows Number: WO1-358-0131
Firestone Bellows Number: WO1 358 0131
Firestone Bellows Number: WO13580131
Firestone Part Number: W01-358-7731
Firestone Part Number: W01 358 7731
Firestone Part Number: W013587731
Firestone Part Number: WO1-358-7731
Firestone Part Number: WO1 358 7731
Firestone Part Number: WO13587731
AIRSUSTECH 1B7731 For PERFECT BOUND MAGAZINE CUTTER:
