| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B-131 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Condition | 100% Brand-new | Place of Origin | Guangzhou, China |
| Warranty | 12 Months | Firestone Oe no. | W013587731 |
| Size | 16*16*16 CM | Packaging Details | Strong Carton Box or as Customers Requirement |
| Color | Black | Material | Rubber+metal |
| Model Number | 1B-131 | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949:2009 | AIRSUSTECH Bellow | 1B-131 |
| Brand Name | AIRSUSTECH | Payment Terms | T/T, Western Union,Paypal or Others |
| Type | Suspension Spring | Packing | Neutral box or as customers' request |
| Delivery Time | 3-8 Working Days | Minimum Order Quantity | 3 pieces |
| Shock absorber type | Gas-Filled | Application | Air spring |
Air Spring Shocks AIRSUSTECH 1B-131 Refer to Firestone Bellow 131 Stroke 50-110mm
1B-131 Specifications and Detailed Technical Parameters
❶ Nut/Blind Nut
Top
plate
screw
(nut)
teeth:
2X
3/8-16UNC
top
cover
Screw
center
distance:
44.5mm
Bottom
cover
Screw
(nut)
teeth:
2X
3/8-16UNC
Screw
center
bottom
cover
distance:
44.5
mm
❷
Air
hole/air
inlet/air
connector/air
fitting
Air
hole/air
inlet:
1/4NPTF
Screw
center
distance
between
air
hole
and
nut:
22
mm
❸Cover
plate
Top
plate
diameter:
115
mm
Bottom
cover
diameter:
115
mm
❺Bell-shaped
rubber
bellows
Rubber
bellows
Maximum
diameter:
165
mm
rubber
bellows
Natural
diameter:
145
mm
Working
stroke:
min.
50
mm
to
max.
110
mm
Maximum
height:
110
mm
Minimum
height:
50
mm
Stroke
height:
60
mm
Buffer
block/buffer
block
unbuffered
block
❻
Belt
loop
/
Belt
loop
With
hoop:
without
no
hoop
AIRSUSTECH 1B-131 Cross OEM Original Equipment Manufacturer:
| AIRSUSTECH Part Number:1B-131 | Firestone BellowsNumber: WO13580131 |
| AIRSUSTECH Bellows Number:1B-131 | |
| Firestone Bellows Number: 131 | Firestone Part Number: W01-358-7731 with air inlet not the same locatoin |
| Firestone BellowsNumber: W01-358-0131 | Firestone Part Number: W01 358 7731 with air inlet not the same locatoin |
| Firestone BellowsNumber: W01 358 0131 | Firestone Part Number: W013587731 with air inlet not the same locatoin |
| Firestone BellowsNumber: W013580131 | Firestone Part Number: WO1-358-7731 with air inlet not the same locatoin |
| Firestone BellowsNumber: WO1-358-0131 | Firestone Part Number: WO1 358 7731 with air inlet not the same locatoin |
| Firestone BellowsNumber: WO1 358 0131 | Firestone Part Number: WO13587731 with air inlet not the same locatoin |
AIRSUSTECH 1B-131 can replace Firestone Bellow 131 Air Spring Shocksdescription:
The air spring shock absorber AIRSUSTECH 1B-131 can replace Firestone Bellow 131 Air Spring Shocks can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber AIRSUSTECH 1B-131 can replace Firestone Bellow 131 Air Spring Shocks to the minimum height, a restoring force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B-131 can replace Firestone Bellow 131 Air Spring Shocks must be used to absorb the force
• Before disassembling the air spring shock absorber AIRSUSTECH 1B-131 can replace Firestone Bellow 131 Air Spring Shocks , the internal air must be released to prevent accidents and personal injury.
• During operation, the rubber air spring shock absorber AIRSUSTECH 1B-131 can replace Firestone Bellow 131 Air Spring Shocks shall not be in contact with other parts

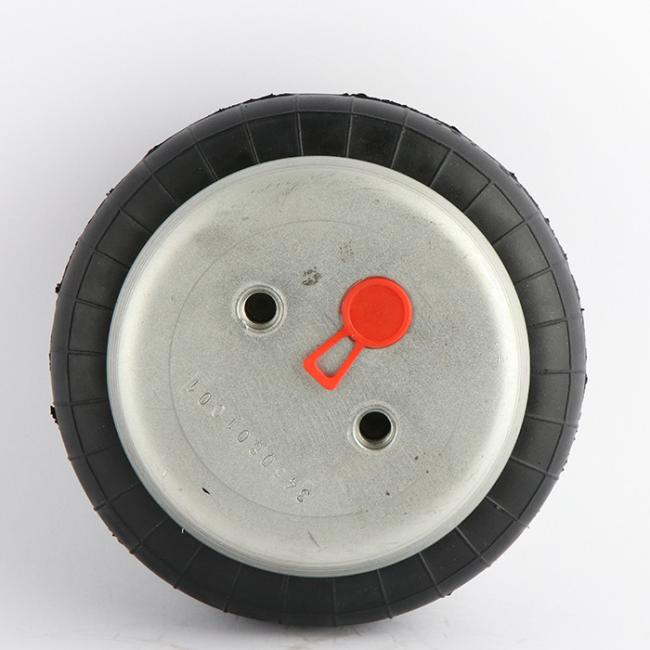

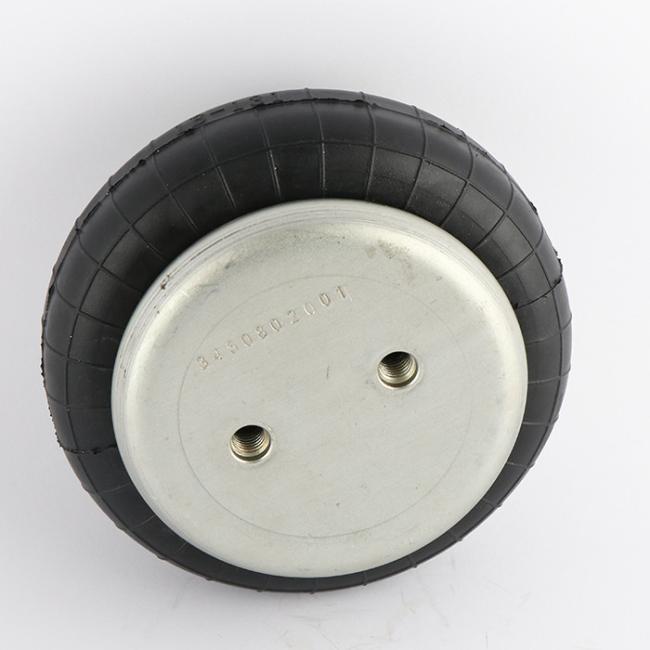

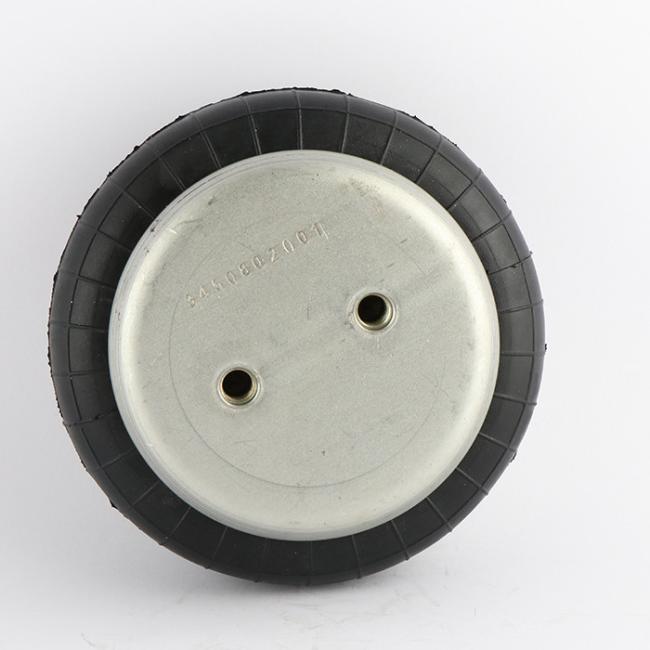

The real photos of AIRSUSTECH 1B-131 :
