| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Mexico |
| Certification | ISO/TS16949, ISO9001 |
| Model Number | 1B7650 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Place of Origin | Mexico | Warranty | One Year |
| Position | Front and Rear | Packaging Details | Strong Carton Box or as Customers Requirement |
| HS Code | 8708809000 | Port | Huangpu, China |
| Maximum Diameter | 250 mm | Specification | 24*24*24 cm |
| Material | Rubber and Iron | Model Number | 1B7650 |
| Trademark | AIRSUSTECH | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949, ISO9001 | Firestone Style | 115 |
| Brand Name | AIRSUSTECH | Payment Terms | T/T, Western Union,Paypal or Others |
| Pressure Ability | 0.2-0.8 M PA | Type | Ari spring |
| N.W. | 2.6 Kg | Firestone | W01-358-7650 |
| Delivery Time | 3-8 Working Days | Transport Package | Cartons |
| OEM | Yes | Minimum Order Quantity | 3 pieces |
1B7650 Cross OEM :
Firestone
Part
number:W01-358-7650
Firestone
Part
number:W01
358
7650
Fireston:W01-358-7469,
Firestone :W013587469,
Fireston:WO1-358-7469,
Fireston:WO13587469
Norgren
Part
number:81/4x1
Contitech
Part
number:
FS
200-10
1/4
Contitech Part number: FS200-10
Contitech Part number: FS 200-10
Contitech
Part
number:
FS200-10 1/4
Phoenix
Part
number:SP
1B
12
Phoenix
Part
number:SP1B12
Dunlop(FR)
Part
number:
9’’1/4x1
S09101
Dunlop(FR) Part number: 9’’1/4x1
Dunlop(FR)
Part
number:
S09101
Bosch
Part
number:
822419004
FestoPart
number
:EB-250-85
Rubber bellows only :W01-358-0118
Rubber bellows only :W01 358 0118
Rubber bellows only :W013580118
Goodyear Part number:1B9-215
Goodyear Part number:1B9215
Goodyear Part number:1B9 215
Goodyear bellows number: 578912215
Goodyear bellows number:578-91-2-215
Goodyear
bellows
number:578
91
3
201
Goodyear
bellows
number:578-91-3-201
Goodyear
bellows
number:578913201
ENIDINE Part number:YI-1B9-215
ENIDINE Part number:YI1B9215
Size of W01-358-7650 Firestone:
Nut/blind
nut
Top
plate
screw
(nut)
teeth:
2
x
3/8-16
BLIND
NUTS
(5/8
DEEP)
The
screw
center
distance
of
the
top
cover
plate:
89
mm
Screw
(nut)
teeth
of
the
bottom
cover
plate:
2
x
3/8-16
BLIND
NUTS
(5/8
DEEP)
Screw
center
distance
of
bottom
cover
plate:
89
mm
Air
hole/air
inlet/air
fitting
Air
hole/air
inlet:
1/4NPT
Center
distance
between
nut
and
air
inlet:
44.5
mm
Cover
plate
Top
plate
diameter
(width):
160
mm
Diameter
of
bottom
cover
(width):
160
mm
Rubber
bellows
Rubber
bellows
diameter:
222
mm
Compressed
height:
100
mm
/
4.1
inches
Maximum
height:
160
mm
Working
stroke:
60
mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :No of Girdle Hoop
SPRING FEATURES
LOAD RANGE(ISOLATOR)........
.640-3900|b
DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in
USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in
USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in
ASSEMBLY WE I GHT
FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib
NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in
Maximum
diameter
@
100
PSIG
(inches)
10.1
Maximum
height
(inch)
5.1
Maximum
stroke
(inch)
2.9
Minimum
usable
height
(inches)
2.2
Force
at
1
inch
(lb)
stroke
@
80PSI
3510
Force
at
a
stroke
of
3
inches
(lbs)
@
80PSI
2080
Force
at
maximum
stroke
@
80PSI
(pounds)
1820
Style
cross
reference
equivalent
high-intensity
style
number
124

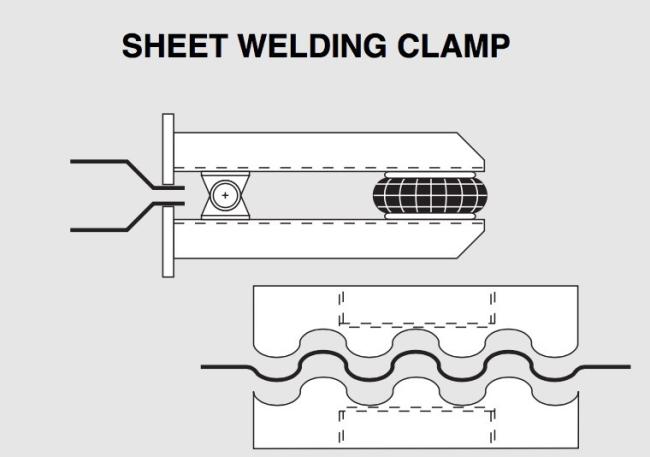

AIRSUSTECH air spring 1B7459 For SHEET WELDING CLAMP:
