| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | MB-90-3 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Origin | China | Shape | Convoluted |
| Bumper Block | Without | Packaging Details | Strong Carton Box or as Customers Requirement |
| HS Code | 8708809000 | Port | Huangpu, China |
| Design High | 152 mm | Load Type | Compression |
| Max Diameter | 222 mm | Trademark | Neutral |
| Supply Ability | 1000pcs/week | Function | Reduce Vibration |
| Transport Package | Cartons | Minimum Order Quantity | 3 pieces |
| Minimum Height | 87 mm | Stroke | 152 mm |
| Usage | Industrial | Place of Origin | Guangzhou, China |
| Warranty | One Year | Vibration Frequency | 2 |
| Color | Black | Specification | 24*24*24 cm |
| Material | Rubber | Model Number | MB-90-3 |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union,Paypal or Others | Pressure Ability | 0.2-0.88 MPa |
| N.W. | 1.4 Kg | Delivery Time | 3-8 Working Days |
| Production Process | Vulcanization |

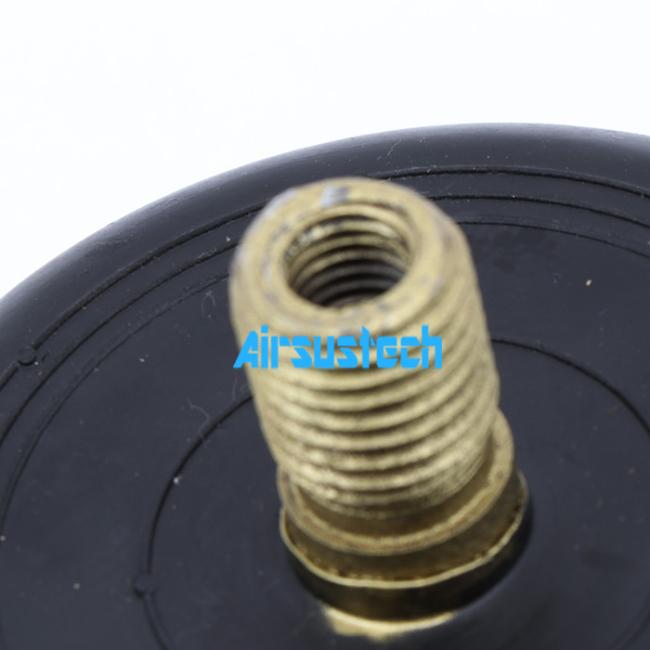

Quick details of MB-90-3 Replaces M-90-3 YOKOHAMA:
Net Weight:0.81 KG
Gross Weight:1.50 KG
Package Size:160mm*160mm*160mm
Compressed height:60mm
Maximum
Height:110mm
Full
stroke:50
mm
Working
medium:water,
air
Working
pressure:<
0.7Mpa
Burst
pressure:>
1.6Mpa
Endurance
cycle:>
10"
Temperature:-35℃
~+60℃
Detailed
Parameter
Table
of
M-90:
| GUOMAT NO. | ReMBerence No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| MB-90-3 | M-90-3 | 152 | 222 | 87 | ±45 | 160 |
| MB-90-2 | M-90-2 | 98 | 143 | 58 | ±30 | 160 |
| MB-90-1 | M90-1 | 76 | 106 | 46 | ±30 | 125 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| MB-90-3 | M-90-3 | 79 | 1.4 | 3.9 | 78 | 2.2 | 0.88 | 2.9-3.9 |
| MB-90-2 | M-90-2 | 79 | 0.85 | 3.9 | 118 | 2.7 | 0.88 | 2.9-3.9 |
| MB-90-1 | M90-1 | 63.5 | 0.5 | 3.1 | 103 | 2.9 | 0.88 | 3.9-4.9 |
Description
about
M-90-3
used
in
Knuckle
Type
Presses:
The
knuckle
type
presses,
with
the
elbow
joint
as
the
transmission
mechanism,
the
sliding
block
is
moved
to
the
lower
part
(called
the
lower
dead
point),
and
it
is
suitable
for
cold
forging.
There
is
also
an
elbow
-
type
punch
that
combines
connecting
rod
and
elbow.
