| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B7742 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Condition | 100% Brand-new | Place of Origin | Guangzhou, China |
| Warranty | 12 Months | Size | 16*16*16 CM |
| Packaging Details | Strong Carton Box or as Customers Requirement | Color | Black |
| Material | Rubber+metal | Model Number | 1B7742 |
| Supply Ability | 1000pcs/week | Oe no. | W01-358-7742 |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union,Paypal or Others | Type | Suspension Spring |
| Packing | Neutral box or as customers' request | Delivery Time | 3-8 Working Days |
| Minimum Order Quantity | 3 pieces | Shock absorber type | Gas-Filled |
| Application | Air spring |

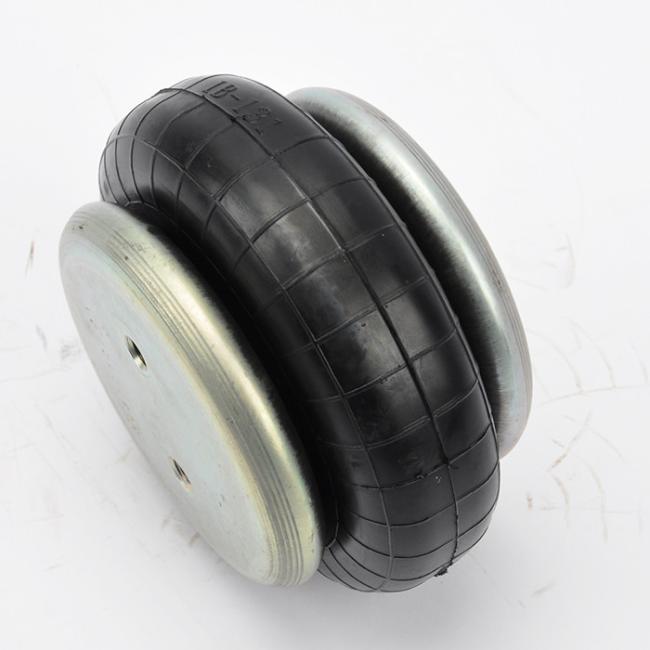

W01-358-7742 Firestone Air Spring Style 131 Rubber Bellows W01-358-0131 For Cows Milking System
AIRSUSTECH 1B7742 Cross OEM Original Equipment Manufacturer:
AIRSUSTECH Part Number:1B7742
Firestone Part Number: W01-358-7742
Firestone Part Number: W01-358-7742,
Firestone Part Number: W013587742,
Firestone Part Number: WO1-358-7742,
Firestone Part Number: WO13587742
AIRSUSTECH 1B7742 Technical Parameters:
| Top Cover Plate Diameter | 115mm |
| Bottom Cover Plate Diameter | 115mm |
| Screw Center Distance | 44.5mm |
| Distance Gas Hole Between Nut | 22.25 mm |
| Gas Hole | 1/4NPTF |
| Screw (Nut) Tooth | 2pcsX3/8-16UNC |
| Rubber Bellows Diameter | Natural Φ145 mm |
| The Height | Natural 90 mm |
AIRSUSTECH 1B7742 Technical Parameters in inch:
Material
2-layer
standard
line
End
cap
details
Bead
plate
type
1
Blind
nut
center
(inch)
1.75
Air
isolator
Design
height
3.5
Load
(at
design
height):
40
psig
(lbs)
550
Load
(at
design
height):
60
psig
(lbs)
850
Load
(at
design
height):
80
psig
(lbs)
1170
Natural
frequency
(@80
psig)
(cpm)
181
Isolation
percentage
at
mandatory
frequency
400
CPM
74.4
Isolation
percentage
at
mandatory
frequency
800
CPM
94.6
Isolation
percentage
at
mandatory
frequency
1500
CPM
98.5
Maximum
diameter
@
100
PSIG
(inch)
6.5
Maximum
height
(inch)
4.1
Maximum
stroke
(inch)
2.1
Minimum
usable
height
(inches)
2
Force
at
1
inch
(lb)
stroke
@
80PSI
1350
Force
at
maximum
stroke
@
80PSI
(pounds)
850
AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags product description:
The air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags must be used to absorb the force
• Before disassembling the air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags, the internal air must be released to prevent accidents and personal injury.
• During operation, the rubber air spring shock absorber AIRSUSTECH 1B7742 Replace W01-358-7742 Firestone Air Bags shall not be in contact with other parts
