| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | China |
| Certification | ISO/TS16949, ISO9001 |
| Model Number | 3H7760 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Origin | Guangdong,China | Car Make | Hendrickson |
| Stroke | 264 mm | Place of Origin | China |
| Warranty | One Year | Position | Front and Rear |
| Packaging Details | Strong Carton Box or as Customers Requirement | HS Code | 8708809000 |
| Port | Huangpu, China | Specification | 45*45*40 cm |
| Material | Rubber and Iron | Model Number | 3H7760 |
| Trademark | AIRSUSTECH Or Neutral | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949, ISO9001 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union,Paypal or Others | Pressure Ability | 0.2-0.8 M PA |
| Type | Shock Absorber | N.W. | 11.3 KG |
| Delivery Time | 3-8 Working Days | Transport Package | Carton |
| OEM | Yes | Minimum Order Quantity | 3 pieces |
W01-358-7760 Firestone Air Spring Style 312 Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w

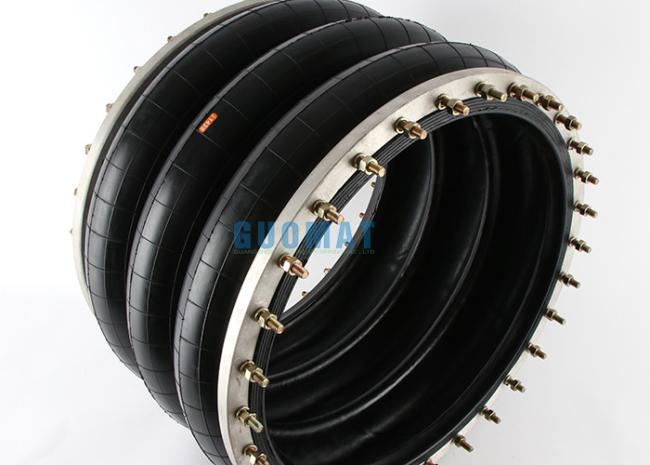

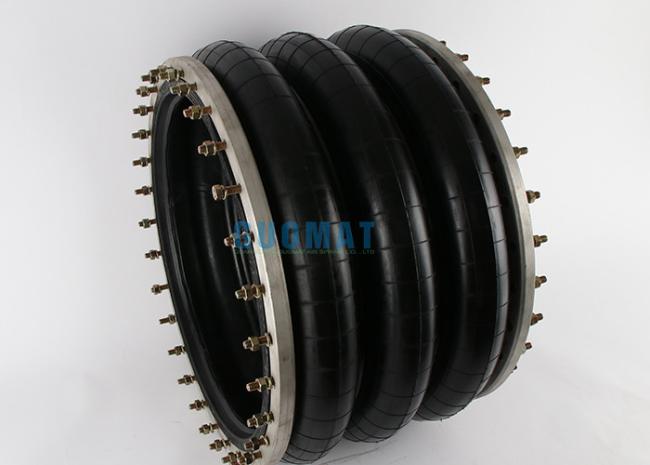

OEM CROSS AIRSUSTECH 3H7760 Convoluted Air Spring:
Manufacturer Brand:AIRSUSTECH
Manufacturer ID:7760
Firestone Style
312
Two
Ply
Bellows
Ribbed
neck
aluminum
bead
rings
(unequal
spacing)
17/8
b,n,w
Firestone
ID:W01-358-7760
Firestone ID:W01 358 7760
Firestone ID:W013587760
Firestone
part
number
W013587760
Part
number
changes:
W01-358-7760,
WO13587760,
WO1-358-77610
Contitech part number FT 960-34 RS UNF
Contitech part number FT960-34 RS UNF
Contitech
part
number
FT96034
RS
UNF
Additional
information:
WO1-358-7760,
type
312C
air
spring,
4
ring/7
aluminum
ball
8"
bolts,
nuts
and
washers
Specifications of AIRSUSTECH 3H7760:
| Maximum diameter @ 100 PSIG (inch) | 18.2 | Force at maximum stroke @ 80PSI (pounds) | 8740 |
| Maximum height (inch) | 14.9 | Style cross-reference equivalent high-intensity style number | 314 |
| Maximum stroke (inch) | 10.4 | Material | 2-layer standard line |
| Minimum usable height (inches) | 4.5 | End cap details Bead type | 4 |
| Force at 1 inch (lb) stroke @ 80PSI | 15,700 | ||
| Bolt circle diameter (inch) | 13.81 | ||
| Force at a stroke of 3 inches (lbs) @ 80PSI | 14,200 | ||
| Number of bolts (per ring) | 18 | ||
| Isolation percentage at mandatory frequency 400 CPM | 95.8 | ||
| Air isolator | |||
| Isolation percentage at mandatory frequency 800 CPM | 99 | Design height | 13 |
| Isolation percentage at mandatory frequency 1500 CPM | 99.7 | Load (at design height): 40 psig (lbs) | 5100 |
| Load (at design height): 80 psig (lbs) | 10730 | Load (at design height): 60 psig (lbs) | 7930 |
| Natural frequency (@80 psig) (cpm) | 80 |
