| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | China |
| Certification | ISO/TS16949, ISO9001 |
| Model Number | 2H320240 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Origin | Guangdong,China | Car Make | Hendrickson |
| Stroke | 8.6 inch | Place of Origin | China |
| Warranty | One Year | Position | Front and Rear |
| Packaging Details | Strong Carton Box or as Customers Requirement | HS Code | 8708809000 |
| Port | Huangpu, China | Specification | 45*45*35 cm |
| Material | Rubber and Iron | Model Number | 2H320240 |
| Trademark | AIRSUSTECH Or Neutral | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949, ISO9001 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union,Paypal or Others | Pressure Ability | 0.2-0.8 M PA |
| Type | Shock Absorber | N.W. | 5.6 Kg |
| Delivery Time | 3-8 Working Days | Transport Package | Carton |
| OEM | Yes | Minimum Order Quantity | 3 pieces |

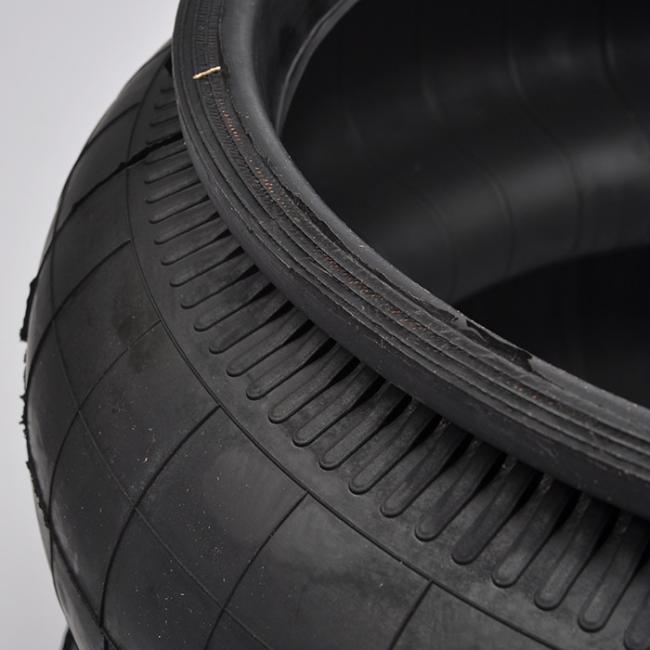

W01-358-7925 Firestone Rubber Air Spring Double Convolutions AIRSUSTECH 2H320240
Manufacturer brand:AIRSUSTECH
Firestone Rubber bellows only
Style
28
Two
Ply
Bellows
Ribbed
neck
aluminum
bead,rings
(equal
spacing),
45
mm,bolts,
nuts,
washers:W01-M58-7531;W01
M58
7531;W01M587531
Rolled
plate
assembly,1/2
blind
nuts,
3/4
NPT:SEE
NOTE
BELOW
Rubber
bellows
only:W01-358-7925;W01
358
7925;W013587925
Assembly
weight.:.8.62
kg.
Force
to
collapse
to
minimum
height
(@
0
BAR):169N.
| Design Height (mm) | 241 | Maximum Diameter @ 7 Bar (mm) | 442 |
| Load (at Design Height) at: 3 Bar (kN) | 22.2 | Maximum Height (mm) | 84 |
| Load (at Design Height) at: 5 Bar (kN) | 51.6 | Maximum Stroke (mm) | 173 |
| Load (at Design Height) at: 7 Bar (kN) | 54.1 | Minimum Usable Height (mm) | 257 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.7 | Force in kN @ 5 Bar at Stroke of 25 mm | 60.5 |
| % of Isolation at Forced Frequency 7 Hz | 92.8 | Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 50.9 |
| % of Isolation at Forced Frequency 13 Hz | 98.3 | Force in kN @ 5 Bar at Stroke of Maximum Stroke | 34.4 |
| % of Isolation at Forced Frequency 25 Hz | 99.5 | Style Cross-Ref High Strength Style Number | 201 |
| Material | 2-Ply Standard Cord |
