| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | Contitech |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | Fd138-18 Ds |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Bumper | Without | Origin | Europe |
| Shape | Convoluted | Packaging Details | Strong Carton Box or as Customers Requirement |
| HS Code | 8708809000 | Port | Huangpu, China |
| Load Type | Compression | Trademark | Norgren |
| Supply Ability | 1000pcs/week | Function | Reduce Vibration |
| Air Inlet | G3/4 | Transport Package | Cartons |
| Minimum Order Quantity | 3 pieces | Other OEM | 8"X2 |
| Usage | Industrial | Place of Origin | Guangzhou, China |
| Warranty | One Year | Specification | 24*24*24 cm |
| Material | Rubber and Aluminum | Model Number | Fd138-18 Ds |
| Certification | ISO/TS16949:2009 | Payment Terms | T/T, Western Union,Paypal or Others |
| Brand Name | Contitech | Pressure Ability | 0.2-0.8 M PA |

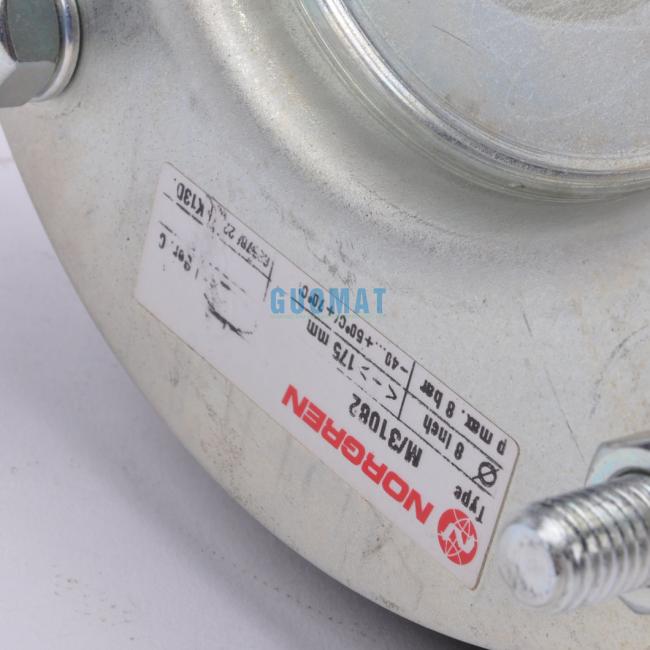

| N.W. | 3.5 Kg | Model NO. | M/31082 |
| Delivery Time | 3-8 Working Days | Top Plate Dia | 184 mm |
| Production Process | Vulcanization | Bottom Plate Dia | 184 mm |
|
Type |
Order No. |
|
Rubber bellows only |
66501 |
|
with dismountable plates, G1/2 air inlet |
66505 |
Min.
pressure
0
bar
Return
force
to
min
height
≤
300
N
Overall
weight
3.5
kg
Nut
/
Blind
Nut
Top
Cover
Plate
Screw
(Nut)
Tooth
: 4pcs
X
M10
Bottom
Cover
Plate
Screw
(Nut)
Tooth
: 4pcs
X
M10

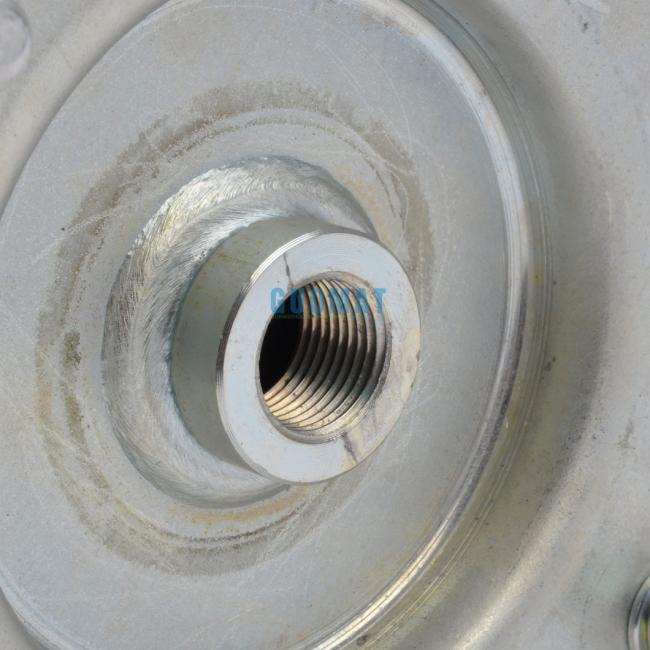

Gas
Hole
/
Air
inlet
/
Air
Fitting
Gas
Hole
/
Air
inlet
:
G3/4
Cover
Plate
Top
Cover
Plate
Diameter
(Width):
184
mm
Bottom
Cover
Plate
Diameter
(Width): 184
mm
Material
top
and
bottom
plate:Steel

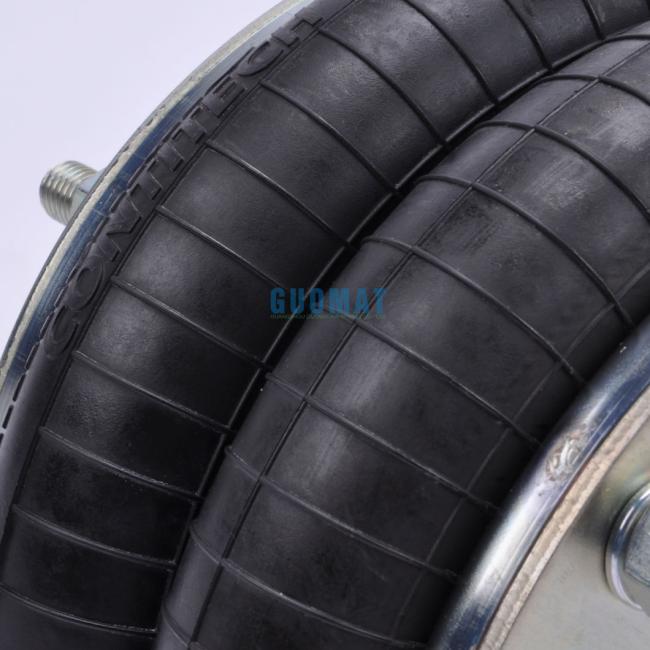

Rubber
Bellows
Diameter
max
at
7
bar:225MM
Stroke
of Rubber
Bellows:75mm-225m
Bumper
block
/
Buffer
block
Without
Bumper
Block
Girdle
Hoop
/
Girdle
Ring
With
Girdle
Hoop
:One
Pieces
of
Girdle
Hoop
|
Vibration
isolation
-
dynamic
characteristic
values |
|||||||
|
Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
|
Force (Load) [kN] |
3.9 |
5.3 |
6.7 |
8.2 |
9.7 |
11.3 |
|
|
Spring rate [N/mm] |
76 |
97 |
118.5 |
140 |
161 |
181.5 |
4.1 |
|
Natural frequency [Hz] |
2.2 |
2.2 |
2.1 |
2.1 |
2.1 |
2.0 |
|
|
Pneumatic
application
-
static
characteristic
values |
||||||||
|
Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
|
|
Height H [mm] |
220 |
2.9 |
4.03 |
5.16 |
6.41 |
7.65 |
8.98 |
4.3 |
|
200 |
3.86 |
5.27 |
6.68 |
8.21 |
9.73 |
11.3 |
4.1 |
|
|
150 |
5.9 |
8 |
10.1 |
12.4 |
14.7 |
16.9 |
3.2 |
|
|
100 |
8.2 |
10.9 |
13.7 |
16.6 |
19.4 |
22.4 |
2 |
|
Other
Norgen
air
springs
models:
| Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| M/31021 | 2 3/4" x 1 | 20 | G1/4 |
| M/31022 | 2 3/4" x 2 | 45 | G1/4 |
| M/31023 | 2 3/4" x 3 | 65 | G1/4 |
| M/31041 | 4 1/2" x 1 | 140 | G3/8 |
| M/31042 | 4 1/2" x 2 | 280 | G3/8 |
| M/31061 | 6" x 1 | 155 | G1/2 |
| M/31062 | 6" x 2 | 155 | G1/2 |
| M/31081 | 8" x 1 | 95 | G3/4 |
| M/31082 | 8" x 2 | 185 | G3/4 |
| M/31091 | 9 1/4" x 1 | 105 | G3/4 |
| M/31092 | 9 1/4" x 1 | 230 | G3/4 |
| M/31121 | 12" x 1 | 105 | G3/4 |
| M/31122 | 12" x 2 | 215 | G3/4 |
| M/31123 | 12" x 3 | 315 | G3/4 |
