| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | Norgren |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | M/31062 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Bumper | Without | Origin | Europe |
| Shape | Convoluted | Packaging Details | Strong Carton Box or as Customers Requirement |
| HS Code | 8708809000 | Port | Huangpu, China |
| Load Type | Compression | Trademark | Norgren |
| Supply Ability | 1000pcs/week | Function | Reduce Vibration |
| Air Inlet | G1/2 | Transport Package | Cartons |
| Minimum Order Quantity | 3 pieces | Other OEM | 6"X2 |
| Usage | Industrial | Place of Origin | Guangzhou, China |
| Warranty | One Year | Specification | 24*24*24 cm |
| Material | Rubber and Aluminum | Model Number | M/31062 |
| Certification | ISO/TS16949:2009 | Payment Terms | T/T, Western Union,Paypal or Others |
| Brand Name | Norgren | Pressure Ability | 0.2-0.8 M PA |
| N.W. | 3.5 Kg | Model NO. | M31062 |
| Delivery Time | 3-8 Working Days | Top Plate Dia | 153.5 mm |
| Production Process | Vulcanization | Bottom Plate Dia | 153.5 mm |
Norgren:
M/31062
OEM
Reference:
Norgren: M/31062 / M 31062 / M31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)
ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech
Bellow:
FD
76-14
/
FD76-14
/
FD7614
Specifications
and
Detail
Technical
Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M8
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
Cover Plate
Top Cover Plate Diameter (Width): 153.5 mm
Bottom Cover Plate Diameter (Width): 153.5 mm
Material top and bottom plate:Aluminium
Rubber Bellows
Diameter max at 7 bar:175MM
Stroke of Rubber Bellows:80mm-195m
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max load at 80 mm height and 8 bar:1415 daN
Other kinds of model air bellows:
Firestone Parts NO.: W01-R58-4070 - (6 x 2 Alu )
Firestone Parts NO.: W01-R58-4053 - (6 x 2 Steel )
Firestone Parts NO.: W01-R58-4078 - (6 x1 Alu )
Firestone Parts NO.: W01-R58-4081 (2 3/4" x3)
Firestone Parts NO.: W01-R58-4051 Dunlop Style 4,5 " x 2
Firestone Parts NO.: W01-R58-4052 - (6" x1 steel)
Firestone Parts NO.: W01-R58-4057 - (10 x1 steel)
Firestone Parts NO.: W01-R58-4054 - 8x1 Steel
Firestone Parts NO.: W01-R58-4028 - 8"x1 Epichlorhydrin
Firestone Parts NO.: W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone Parts NO.: W01-R58-4090 - 8"x2 Butyl
Firestone Parts NO.: W01-R58-4055 - 8x2 Steel
Firestone Parts NO.: W01-R58-4060 (12 x1 steel)Firestone Parts NO.: W01-R58-4077 (12 x1 Herclor )
Firestone Parts NO.: W01-R58-4056 -8"x3 Steel
Firestone Parts NO.: W01-R58-4062 (12 x3 Steel)
Firestone Parts NO.: W01-R58-4065 (14 1/2 x3 Steel)
Firestone Parts NO.: W01-R58-4098 (14 1/2 x1 Herclor)
Firestone Parts NO.: W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone Parts NO.: W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone Parts NO.: W01-R58-4059 - (10" x3 steel)
Spar Part Bellow 8"x2 W01-R58-4045
Firestone Parts NO.: W01-R58-4064 -14" 1/2 x2
Firestone Parts NO.: W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone Parts NO.: W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone Parts NO.: W01-R58-4060- 12" x2 steel
Firestone Parts NO.: W01-R58-4070 - (6 x 2 V2a )
Firestone Parts NO.: W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone Parts NO.: W01-R58-4050
W01-R58-4080
-
2
3/4"
x
1

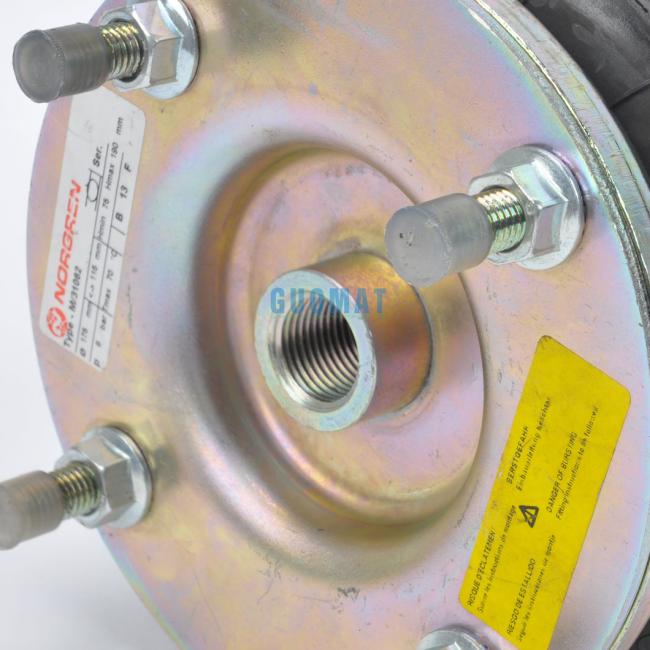

Details
pictures
1
of
M31062
Norgren
Air
Spring:

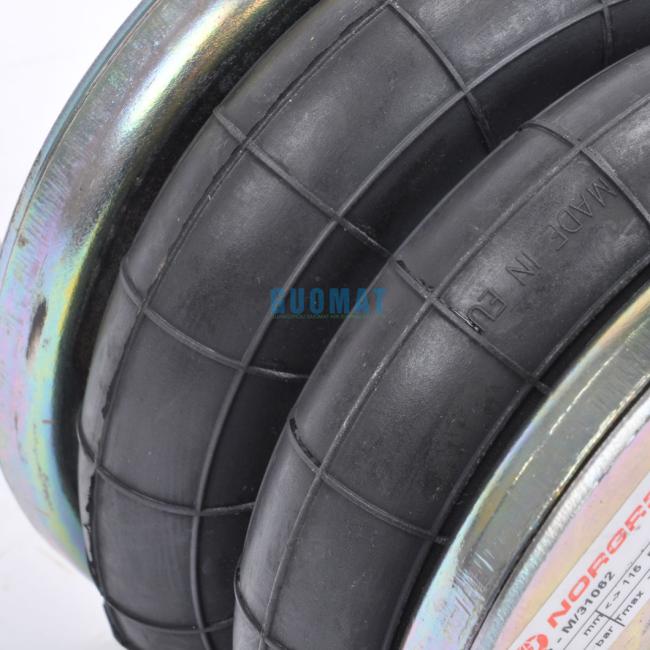

Details
pictures
2
of
M31062
Norgren
Air
Spring:
Details
pictures
3
of
M31062
Norgren
Air
Spring:
