| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949, ISO9001 |
| Model Number | 3B10X3 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Origin | China | Packaging Details | Strong Carton Box or as Customers Requirement |
| HS Code | 8708809000 | Port | Huangpu, China |
| Trademark | Neutral | Supply Ability | 1000pcs/week |
| Bottom Plate Hole/Stud | No | Bellows Dia | 254 mm |
| Air Inlet | 1/4 NPT | Transport Package | Cartons |
| Minimum Order Quantity | 3 pieces | Place of Origin | Guangzhou, China |
| Warranty | One Year | Position | Front and Rear |
| Specification | 24*24*24 cm | Material | Rubber and Iron |
| Model Number | 3B10X3 | Certification | ISO/TS16949, ISO9001 |
| Payment Terms | T/T, Western Union,Paypal or Others | Brand Name | AIRSUSTECH |
| Pressure Ability | 0.2-0.8 M PA | Type | Suspension Spring |
| N.W. | 1.5 Kg | Delivery Time | 3-8 Working Days |
| Top Plate Hole/Stud | No | OEM | Yes |
| Manufacturer: | Complete Numbers |
| Airkraft: | 115056 |
| Contitech: |
FT
210-32DS FT 210 32DS FT21032DS |
| Dunlop: |
SP1539(10X3) SP1539 10X3 |
| Weforma: |
WBD-G450 WBD G450 |
| Stroke: | 230mm |
| Condition: | New |
OEM
Original
Equipment
Manufacturer:
Rubber
Bellows
In
0.7
M
pa,Rubber
Bellows
Diameter
:
256
mm
Rubber
Bellows
Natural
Height
:230
mm
Bumper
block
/
Buffer
block
Without
Bumper
Block
Girdle
Hoop
/
Girdle
Ring
With
2
Girdle
Hoop
Pneumatic
applications
-
static
characteristics
Force
F
[kN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H [mm] | 350 | 5,62 | 7,66 | 9,75 | 11,8 | 14 | 16,3 | 11 |
| 300 | 7,1 | 9,56 | 12 | 14,5 | 17,1 | 19,8 | 9,5 | |
| 250 | 8,62 | 11,6 | 14,6 | 17,6 | 20,7 | 24 | 8,2 | |
| 200 | 10,3 | 13,8 | 17,3 | 20,8 | 24,4 | 28,3 | 6,6 | |
| 150 | 12,1 | 16,1 | 20,1 | 24,2 | 28,3 | 32,6 | 4,7 |

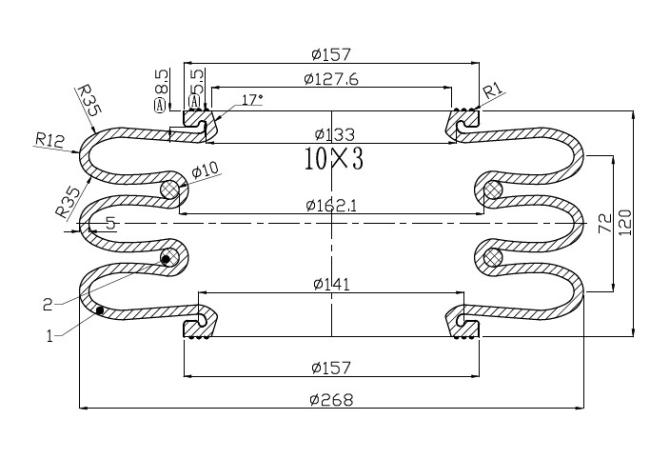

The draiwng of 10X3:
Working
principle
of
air
spring:
Thus,
in
the
effective
stroke
of
the
air
spring,
the
height
of
the
air
spring,
the
volume
of
the
inner
cavity,
and
the
load
carrying
capacity
are
smoothly
controlled
by
the
flexible
transmission,
the
amplitude
and
the
vibration
load
with
the
increase
and
decrease
of
the
vibration
load.
It
is
also
possible
to
adjust
the
stiffness
and
bearing
capacity
of
the
spring
by
increasing
or
decreasing
the
amount
of
inflation,
and
an
auxiliary
air
chamber
can
be
attached
to
achieve
self-control
adjustment.
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | ||
| FT44-15DICR | FT 44-15 DI CR | ||
| FT76-20DICR | FT 76-20 DI CR | ||
| FT76-20DSCR | FT 76-20 DS CR | ||
| FT138-26DS | FT 138-26 DS | ||
| FT210-32DS | FT 210-32 DS | ||
| FT412-32DS | FT 412-32 DS | ||
| FT614-36DS | FT 614-36 DS | ||
| FT816-40DS | FT 816-40 DS | ||
