| Price | Negotiable |
| MOQ | 3 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B5080 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union,Paypal or Others |
| Supply Ability | 1000pcs/week |
| Condition | 100% Brand-new | Place of Origin | Guangzhou, China |
| Warranty | 12 Months | Size | 16*16*16 CM |
| Packaging Details | Strong Carton Box or as Customers Requirement | Color | Black |
| Material | Rubber+metal | Model Number | 1B5080 |
| Supply Ability | 1000pcs/week | Oe no. | Firestone Bellow 131 |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union,Paypal or Others | Type | Suspension Spring |
| Packing | Neutral box or as customers' request | Delivery Time | 3-8 Working Days |
| Minimum Order Quantity | 3 pieces | Shock absorber type | Gas-Filled |
| Application | Air spring |

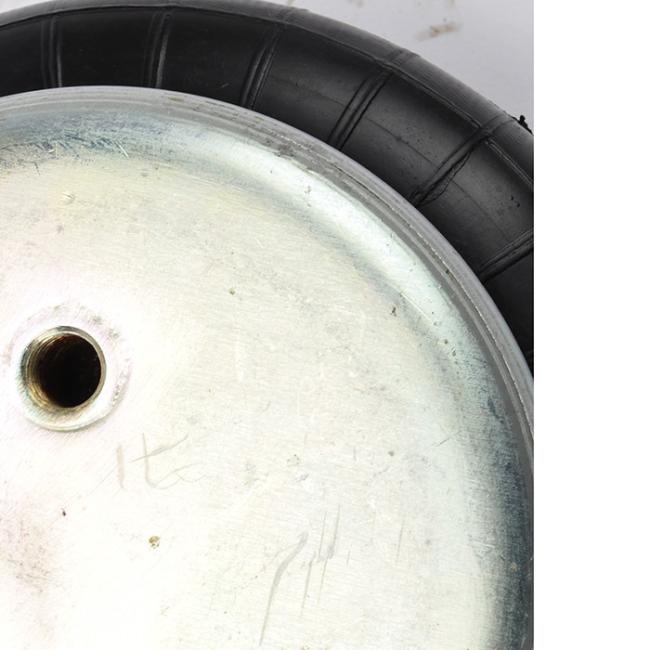

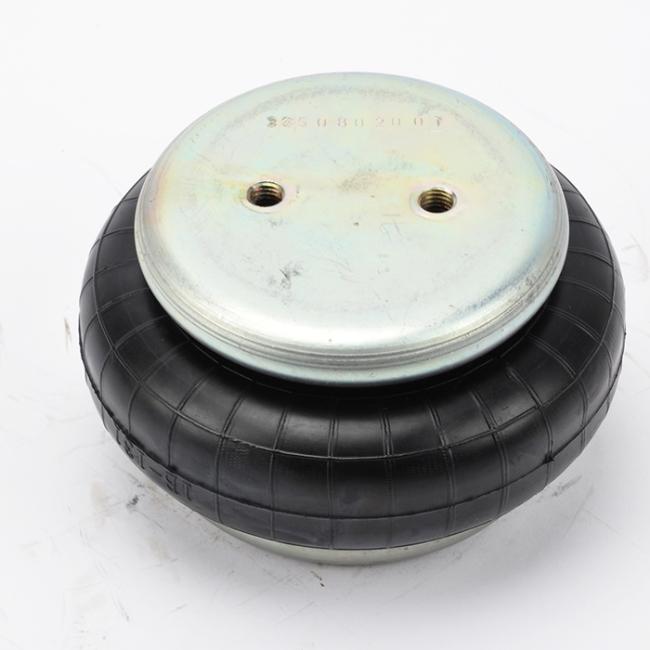

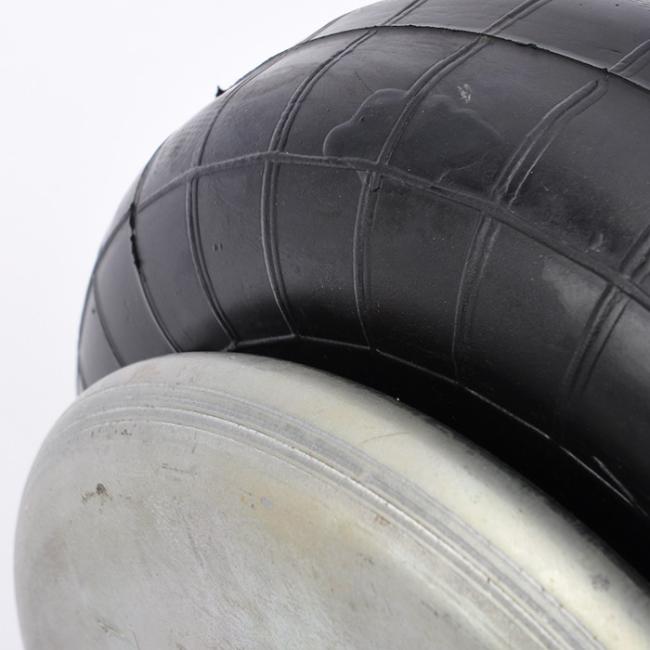

Firestone Bellow 131 Air Spring Actuator AIRSUSTECH 1B5080 For Vibrating Equipment and Conveyers
AIRSUSTECH 1B5080 product description:
The air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 must be used to absorb the force
• Before disassembling the air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131, the internal air must be released to prevent accidents and personal injury.
• During operation, the rubber air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 shall not be in contact with other parts
AIRSUSTECH 1B5080 Cross OEM Original Equipment Manufacturer:
AIRSUSTECH Part Number:1B5080
Firestone :Bellow 131
| AIRSUSTECH 1B5080 Technical Parameters | |
| Top Cover Plate Diameter | 160mm |
| Bottom Cover Plate Diameter | 160mm |
| Screw Center Distance | 89mm |
| Distance Gas Hole Between Nut | 44.5mm |
| Gas Hole | 1/4NPTF |
| Screw (Nut) Tooth | 2pcsXM10 |
| Rubber Bellows Diameter | Natural Φ220mm |
| The Height | Natural 110mm |
