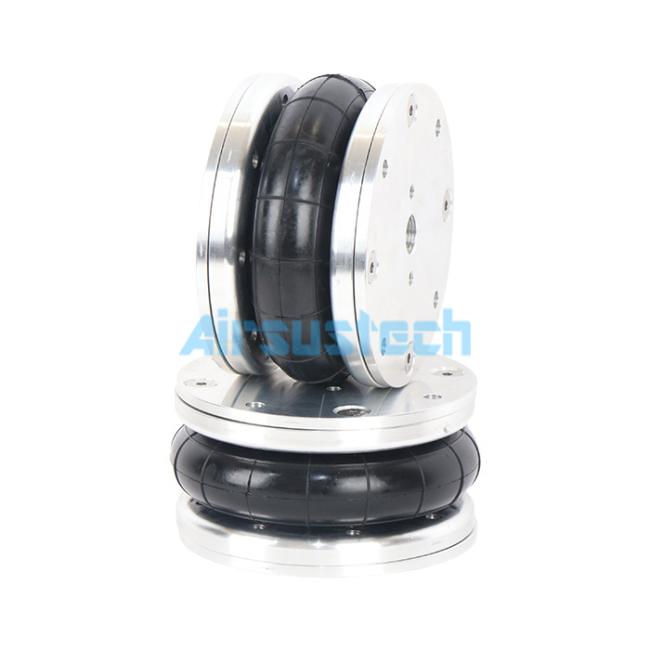

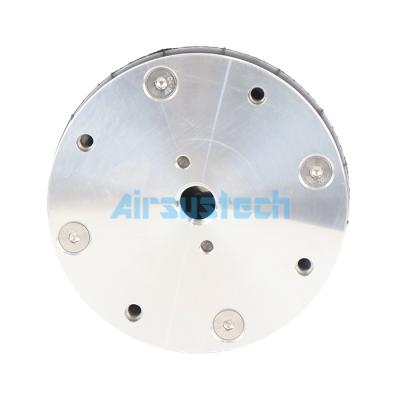

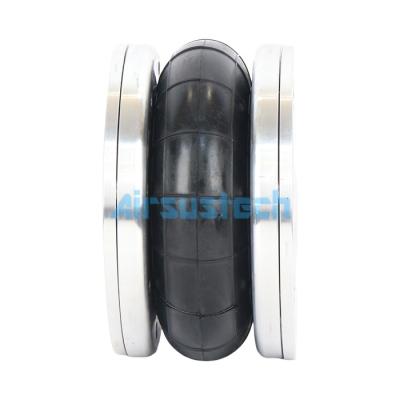

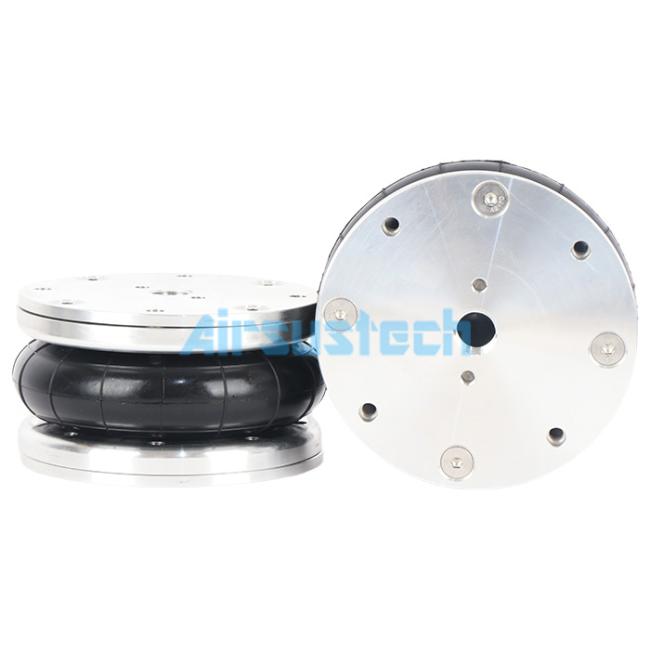

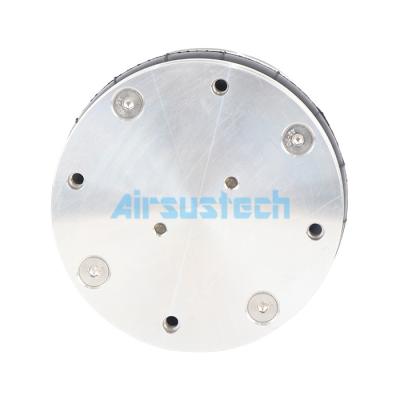

G1/2
Air
Connection
W01R584078
Firestone
Air
Actuators
for
Pneumatic
Applications
1B6
×1P
Air
Bellows
Cross
Code
Norgren
Number:
PM/31061,
PM31061,
PM
31061
Firestone
Number:
W01-R58-4078,
WO1-R58-4078,
W01R584078,
WO1R584078,
W01
R58
4078,
WO1
R58
4078
Dunlop
Pneuride
Number:
6''×1,
6'×1,
6×1
Dunlop
Springride
Number:
SP2913
Contitech
Number:
FS
76-7
DI,
FS76-7
DI,
FS
767
DI,
FS767
DI,
FS
76
7
DI,
FS76
7
DI
Parker
Number:
9109004A
Technical
Specifications
|
Bottom
Plate
Alignment
|
Parallel
|
|
Bottom
Plate
Center
To
Center
Diameter
|
127
mm
|
|
Bottom
Plate
Diameter
|
152.5
mm
|
|
Bottom
Plate
Hole
Quantity
|
4×M18
|
|
Bottom
Plate
Type
|
Steel
|
|
Top
Plate
Alignment
|
Parallel
|
|
Top
Plate
Center
To
Center
Diameter
|
127
mm
|
|
Top
Plate
Diameter
|
152.5
mm
|
|
Top
Plate
Hole
Quantity
|
4×M18
|
|
Top
Plate
Type
|
Steel
|
|
Expanded
Height
|
110
mm
|
|
Compressed
Height
|
55
mm
|
|
Spring
Type
|
Single
Convolution
|
|
Max
Rubber
Bellow
Diameter
|
175
mm
|
|
Air
Connection
|
G1/2
|
|
Operation
|
Gas-filled
|
Product
Applications
-
Vehicle
applications
-
Automation
technology
-
Conveyor
systems
-
Agricultural
machinery
-
Food
industry
-
Paper
and
textile
equipment
-
Pantograph
drives
-
Sawmill
machinery
-
Punch
and
forming
presses
Other
Types
of
Rubber
Air
Shock
Springs
|
Type
|
Plate
Diameter
(mm)
|
Min.
Height
(mm)
|
Max.
Height
(mm)
|
Total
Stroke
(mm)
|
Static
Height
(mm)
|
Center
Distance
(mm)
|
Space
Installation
(mm)
|
|
4
1/2×1
|
125
|
45
|
90
|
45
|
65
|
93
|
140
|
|
6×1
|
162
|
50
|
110
|
60
|
80
|
127
|
180
|
|
4
1/2×2
|
125
|
65
|
145
|
80
|
100
|
93
|
140
|
|
6×2
|
168
|
75
|
215
|
140
|
140
|
127
|
180
|
|
21
1/2×2
|
570
|
90
|
390
|
300
|
200
|
N/A
|
595
|
|
2
1/4×3
|
78
|
80
|
145
|
65
|
119
|
64
|
95
|
|
4
1/2×3
|
125
|
100
|
200
|
100
|
145
|
93
|
140
|
|
6×3
|
168
|
109
|
262
|
153
|
187
|
127
|
180
|
