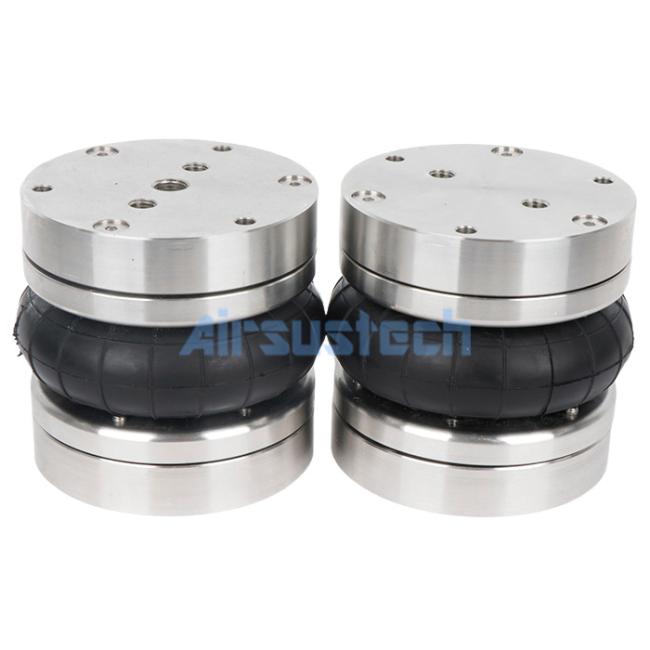

4.5×1
Air
Spring
Actuator
Parker
9109400
Pneumatic
Air
Bellows
for
Anti-Vibration
Table
4.5
×1
Air
Spring
Actuator
Parker
9109400
Pneumatic
Air
Bellows
for
Anti-Vibration
Table
Product
Introduction
AIRSUSTECH
air
springs
represent
a
premium
solution
for
both
actuation
and
vibration
isolation
needs,
combining
exceptional
durability
with
precision
engineering
and
cost-effectiveness.
These
components
are
designed
to
deliver
superior
performance
across
various
industrial
applications
through
proven
designs
and
robust
construction.
The
air
springs
feature
fabric-reinforced
Neoprene
or
Natural
Rubber
flex
members,
complemented
by
corrosion-resistant
end
retainers,
ensuring
long-term
reliability
and
consistent
operation.
Our
comprehensive
product
range
includes
Single,
Double,
and
Triple
Convoluted
Bellows,
along
with
Rolling
Lobe
and
Sleeve
Type
configurations,
available
in
multiple
sizes
to
suit
specific
application
requirements.
The
Features
of
1B4.5
×1P
Air
Bag
-
This
single
convoluted
air
spring
is
manufactured
from
high-quality
natural
rubber
with
steel
cover
plates.
It
features
a
minimum
compressed
height
of
45
mm,
a
maximum
extended
height
of
90
mm,
and
a
working
stroke
of
45
mm.
-
For
the
1B4.5×1P
model,
the
cover
plate
diameter
is
125
mm,
and
the
center-to-center
distance
is
110
mm.
When
the
air
pressure
reaches
0.7
MPa,
the
maximum
outer
diameter
of
the
rubber
component
reaches
125
mm.
-
The
industrial
convoluted
rubber
air
spring
operates
via
gas
filling.
Its
air
connection
is
3/8
BSP,
and
the
screw
nut
size
is
M6.
Corresponding
International
Models
|
Original
Manufacturer
|
Cross
References
|
|
Parker
|
9109400
|
|
Firestone
Style
|
W01-R58-4050,
W01R584050,
W01
R58
4050
WO1-R58-4050,
WO1R584050,
WO1
R58
4050
|
|
Dunlop
Pneuride
|
4
1/2"x1,
4
1/2x1,
4
1/2'x1
|
|
Dunlop
Springride
|
SP2334
|
|
Contitech
|
FS
44-5
DI,
FS
445
DI,
FS
44
5
DI
FS44-5
DI,
FS445
DI,
FS44
5
DI
|
|
Norgren
|
PM/31041,
PM31041,
PM
31041
|
Packaging
&
Shipping
Packing
Details
-
One
piece
in
a
poly
bag.1piece
in
a
carton.
-
Mark
the
product
numbers
and
the
QTY
outside
the
carton.
-
As
your
requirement.
Shipping
Details
-
Delivery
time:
Usually
2-8
working
days
after
receiving
the
payment.
-
Shipping
by
Air,
By
Sea,
By
Express
(DHL,
UPS,
FEDEX...)
-
Please
make
sure
the
address
is
correct,
after
the
goods
are
shipped,
we
will
track
the
logistics
information
until
you
receive
the
goods.
The
Detailed
Pictures
Our
Technicians
Measure
the
Air
Springs
Production
Equipments
