| Price | Negotiable |
| MOQ | 1 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B5330P07 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability | 1000pcs/week |
| Place of Origin | Guangzhou, China | Packaging Details | Strong Carton Box or as Customers Requirement |
| Number of Ply Bellows | 1 | Shipment | By Sea, By Air, by DHL/Fedex/UPS |
| Material | Rubber and Steel | Operation | Gas-Filled |
| Model Number | 1B5330P07 | Supply Ability | 1000pcs/week |
| Threaded Holes | 4×3/8-16UNC | Certification | ISO/TS16949:2009 |
| Brand Name | AIRSUSTECH | Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Price | Negotiable | Delivery Time | 3-8 Working Days |
| Minimum Order Quantity | 1 pieces | Factory Warranty | One Year |

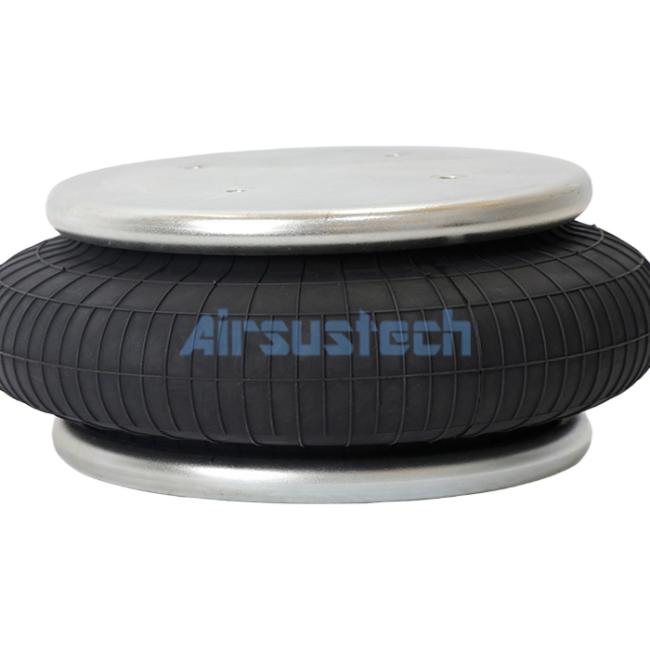

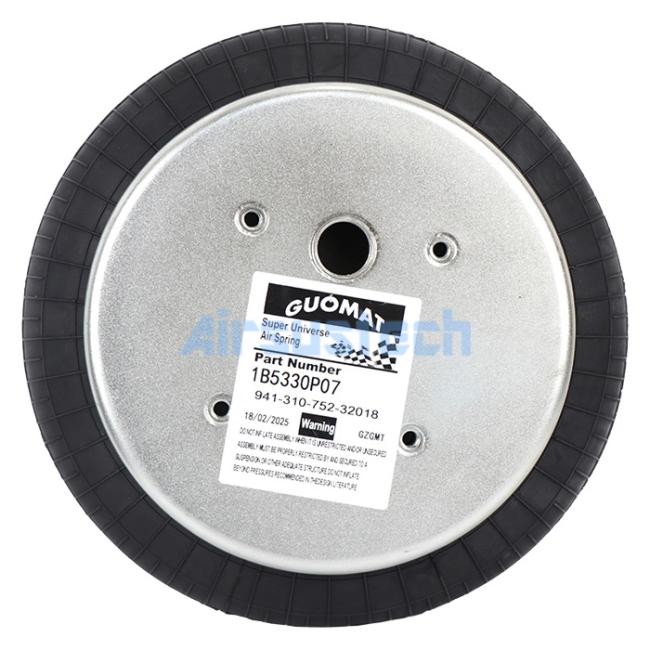

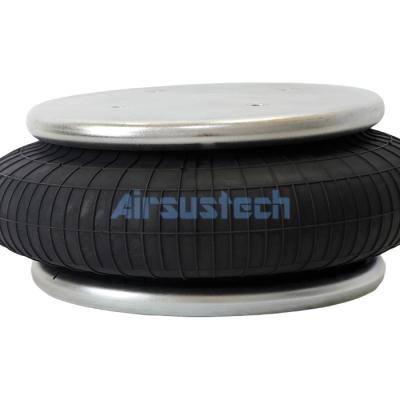

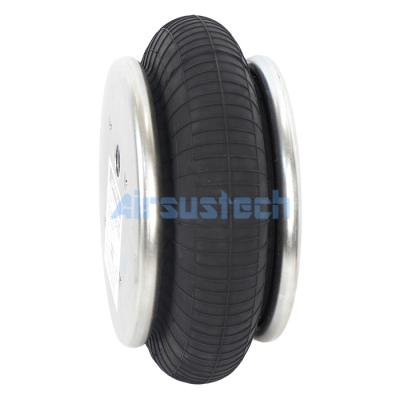

Working Stroke 105MM AIRSUSTECH 1B5330P07 Single Convoluted Rubber Air Spring
Product Description
Carefully designed to deliver exceptional performance and versatility for a wide range of applications. The foundation of their robust construction is a pressed assembly that provides increased strength and durability. Additionally, the cylinder is made of natural rubber. Known for its exceptional dynamic properties and excellent overall performance, this material makes our actuators robust and adaptable to a wide range of operating conditions. The actuator's top and bottom plates are also pressed and galvanized. This additional feature provides excellent corrosion resistance and ensures the actuator maintains its high performance over the long term. With a unique combination of performance, adaptability, and durability, our folding pneumatic actuators are a reliable choice for any industrial requirement.
The
Specifications
of
AIRSUSTECH
1B5330P07
| Minimum Usable Height | 55 MM |
| Maximum Usable Height | 160 MM |
| Max. Outer Diameter | 325 MM |
| Cover Plate Width | 231 MM |
| Center Distance Diameter | 157.5 MM |
| Port Size | 1/4NPTF |
| Threaded Holes | 3/8-16UNC |
| Distance Between Air Hole and Holes | 73 MM |
| Bellows Type | Single Convolution |
The Must be Enough Clearance Around The Air Bellows
Same Cover Plate 231MM Diameter Cross References
| AIRSUSTECH NO. | Other Part Numbers |
| 1B5330 1/4NPTF |
Firestone
W01-358-7008 |
| 1B6994 |
Firestone W01-358-6994 Firestone W01-358-6919 Contitech FS 330-11 647 Triangle 6374/4467 |
| 1B5330 1/4NPT with bumper |
Firestone
W01-358-7009 |
| 1B5330 M10-G1/4 | Contitech FS 330-11 |
