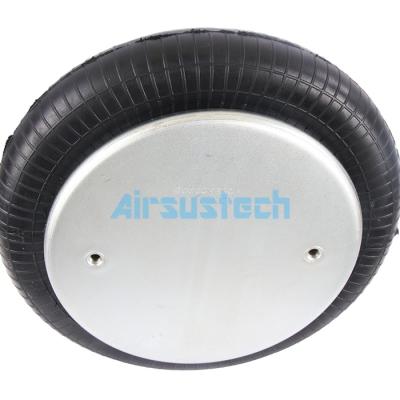

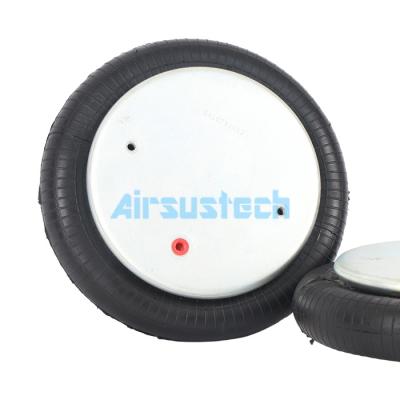

Contitech Convoluted Suspension Air Spring FS 330-11 Industrial Bellows M10 Holes

Price	Negotiable
MOQ	1 pieces
Delivery Time	3-8 Working Days
Brand	AIRSUSTECH
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Model Number	1B5330
Packaging Details	Strong Carton Box or as Customers Requirement
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability	1000pcs/week

Product Details

Product Specification

Stroke	105 MM	Place of Origin	Guangzhou, China
Advantages	Serviceable	Packaging Details	Strong Carton Box or as Customers Requirement
Port Size	G1/4	Threaded Hole	M10
Model Number	1B5330	Supply Ability	1000pcs/week
Certification	ISO/TS16949:2009	Brand Name	AIRSUSTECH
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram	Pressure Ability	0 Bar to 8 Bar
Firestone	W01-358-7008	Price	Negotiable
Delivery Time	3-8 Working Days	Minimum Order Quantity	1 pieces

Product Description

Contitech Convoluted Suspension Air Spring FS 330-11 Industrial Bellows M10 Holes

The Features of AIRSUSTECH 1B5330

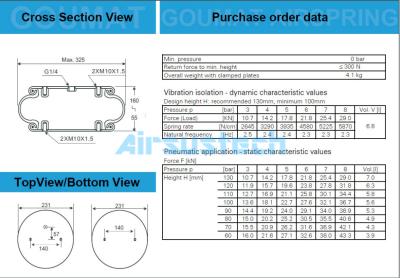

This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 55 mm, a maximum extended height of 160 mm, and a working stroke of 105 mm.
For the 1B5330 model, the cover plate diameter is 231 mm, and the center-to-center distance is 140 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 325 mm.
The industrial convoluted rubber air spring operates via gas filling. Its air connection is G1/4, and the screw nut size is 2×M10×1.5.

1B5330 Cross References

G1/4 air inlet with M10 threaded holes:

Contitech: FS 330-11 / FS 33011 / FS 330 11

1/4NPTF air hole with 3/8-16UNC threaded holes:

Firestone Style: W01-358-7008 / W013587008 / W01 358 7008

Contitech: FS 330-11 474 / FS 33011 474 / FS 330 11 474

Goodyear: 1B12-300 / 1B12 300 / 1B12300

Goodyear: 1B12-313 / 1B12313 / 1B12313

Triangle: 6374 4474

Holland (Neway): 90557226

1/4NPTF gas hole with 3/8-16UNC threaded holes, bumper:

Firestone: W01-358-7009 / W013587009 / W01 358 7009

Contitech: FS 330-11 468 / FS 33011 468 / FS 330 11 468

Goodyear: 1B12-301 / 1B12301 / 1B12 301

Goodyear Bellows No. 578913301

Triangle: 6374/4468

SAF Holland: 90557002 / AR741

Ridewell: 1003587009C

The Pros of AIRSUSTECH Convoluted Air Springs

Features: One-piece molding, high airtightness, high surface density, and fracture resistance.
Installation: Dimensions are identical to those of the original model, allowing for direct replacement without modification. Easy installation.
Quality: Advanced technology improves product performance and extends service life.

Precautions for Installing AIRSUSTECH Airbags

- Before installing the air bellow, check it carefully for any damage it may have suffered from transport or improper storage.
- Do not inflate the air bellow until it has been secured properly.
- Deflate the air bellows fully before removing.
- Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and welding sparks.

AIRSUSTECH Support and Services

The Suspension Air Springs product technical support and services include:
