Price	Negotiable
MOQ	1 pieces
Delivery Time	3-8 Working Days
Brand	AIRSUSTECH
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Model Number	1B130070
Packaging Details	Strong Carton Box or as Customers Requirement
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability	1000pcs/week

Product Details

Stroke	41 MM	Place of Origin	Guangzhou, China
Part Number	1B130070	Packaging Details	Strong Carton Box or as Customers Requirement
Port Size	1/4BSP	Max Inflation Pressure	7 Bar
Material	Rubber and Steel Plate	Model Number	1B130070
Supply Ability	1000pcs/week	Certification	ISO/TS16949:2009
Brand Name	AIRSUSTECH	Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Firestone	W01-358-7001	Price	Negotiable
Delivery Time	3-8 Working Days	Manufacturer Warranty	One Year
Minimum Order Quantity	1 pieces	Supplier	AIRSUSTECH

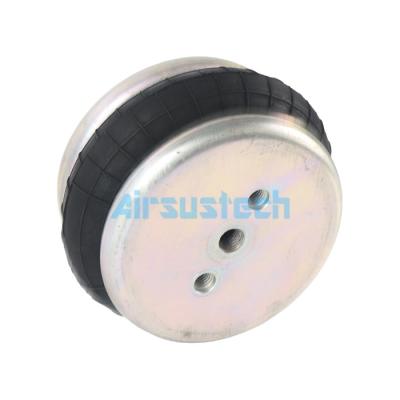

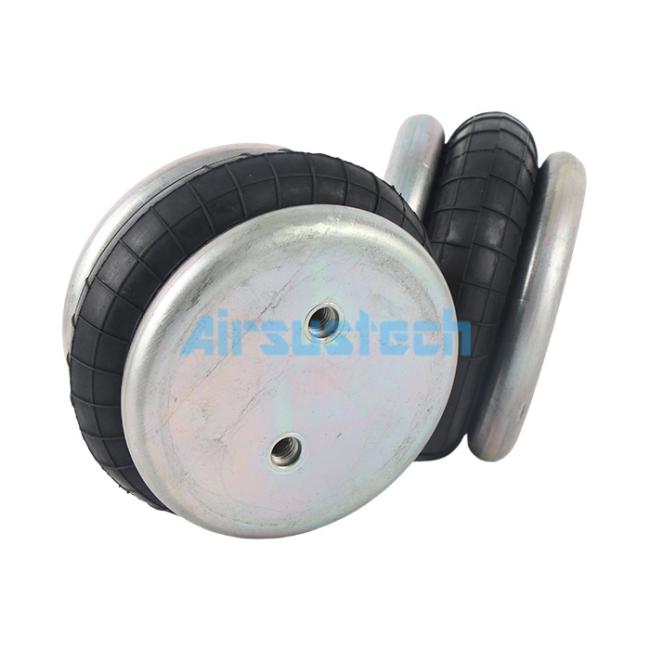

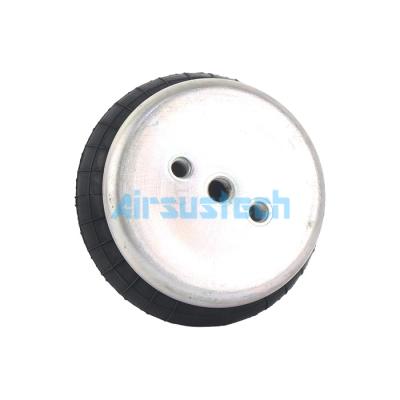

Single Convoluted Bellows W01-358-0017 Firestone Industrial Air Spring from China

Single Convoluted Bellows W01-358-0017 Firestone Industrial Air Spring from China

Quick Details

The Technical Datas of AIRSUSTECH 1B130070

Dynamic Characteristics at 75 mm Design Height

Gauge Pressure (BAR)	Load (kN)	Spring Rate (kN/m)	Natural Frequency (Hz)
3	2.04	140	4.13
4	2.76	177	3.99
5	3.52	217	3.91
6	4.36	256	3.82
7	5.10	293	3.78

Force Table

Assembly Height (mm)	Volume @ 100 BAR (cu cm)	EFF Area @ 7 BAR (cu sq)	kN Force @ 3 BAR	kN Force @ 4 BAR	kN Force @ 5 BAR	kN Force @ 6 BAR	kN Force @ 7 BAR
80	575	61	1.61	2.25	2.89	3.62	4.26
70	492	83	2.37	3.20	4.06	4.98	5.81
60	39.0	99	2.85	3.88	4.89	5.95	6.93

Firestone Style 16 Metric M8 Air Spring Numbers

Blind nuts, 1/4 BSP	W01-M58-6140, W01M586140, W01 M58 6140 WO1-M58-6140, WO1M586140, WO1 M58 6140
Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws)	W01-358-0017, W013580017, W01 358 0017 WO1-358-0017, WO13580017, WO1 358 0017
Rubber bellows only	W01-358-0010, W013580010, W01 358 0010 WO1-358-0010, WO13580010, WO1 358 0010

Firestone Style 16 Imperial 3/8-16 UNC Air Spring Numbers

Blind nuts, 1/4NPT	W01-358-7001, W013587001, W01 358 7001 WO1-358-7001, WO13587001, WO1 358 7001
Blind nuts, 3/4NPT	W01-358-6996, W013586996, W01 358 6996 WO1-358-6996, WO13586996, WO1 358 6996
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)	W01-358-0017, W013580017, W01 358 0017 WO1-358-0017, WO13580017, WO1 358 0017
3/4NPT (only) upper plate, blind nuts lower plate	W01-358-0286, W013580286, W01 358 0286 WO1-358-0286, WO13580286, WO1 358 0286
Rubber bellows only	W01-358-0010, W013580010, W01 358 0010 WO1-358-0010, WO13580010, WO1 358 0010

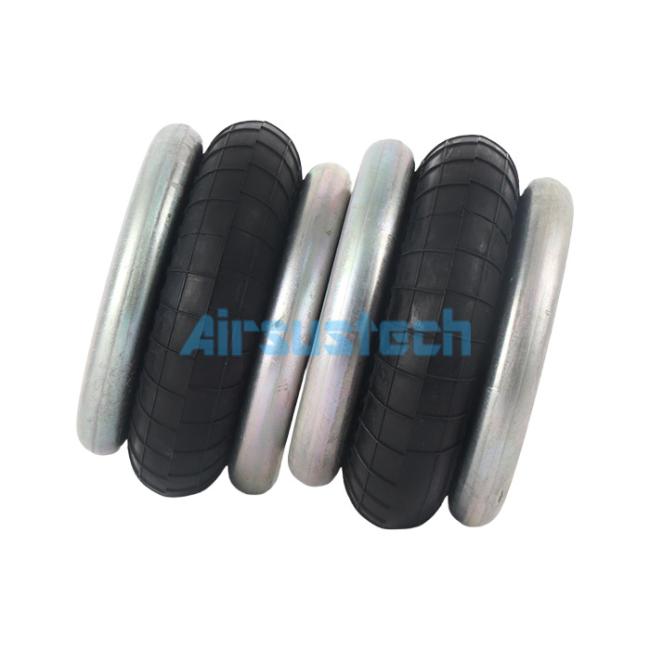

Related Images of 1B130070 Air Actuator
