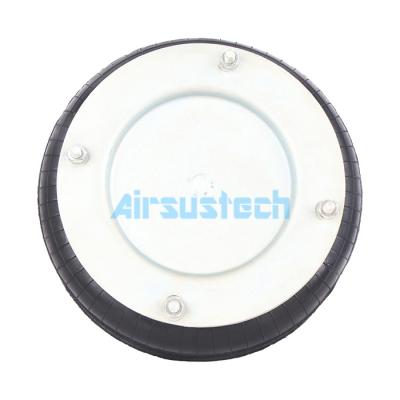

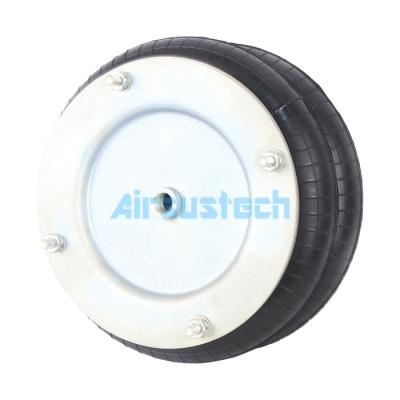

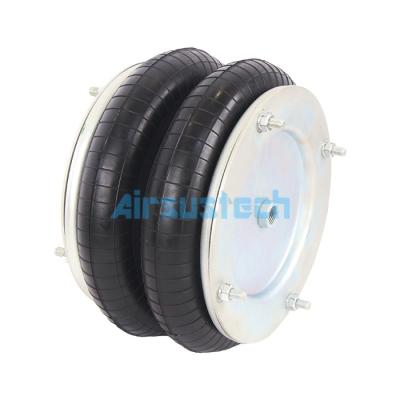

W01-R58-4064
Air
Spring
Assembly
by
Firestone
14''1/2×2
Pneumatic
Air
Actuator
W01-R58-4064
Air
Spring
Assembly
by
Firestone
14
''1/2×2
Pneumatic
Air
Actuator
2B14.5
×2T
Cross
Part
Numbers
|
Original
Manufacturer
|
OEM
Number
|
|
Firestone
|
W01-R58-4064,
W01R584064,
W01
R58
4064
WO1-R58-4064,
WO1R584064,
WO1
R58
4064
|
|
Dunlop
Pneuride
|
14''1/2×2,
14'1/2×2,
14
1/2×2
|
|
Dunlop
Springride
|
SP1556
|
|
Contitech
|
FD
614-26
DS,
FD
61426
DS,
FD
614
26
DS
FD614-26
DS,
FD61426
DS,
FD614
26
DS
|
|
Norgren
|
M/31142,
M31142,
M
31142
|
|
Parker
|
9109061
|
The
Specifications
of
AIRSUSTECH
2B14.5
×2T
Minimum
usable
height:
75
mm
Maximum
usable
height:
340
mm
Cover
plate
diameter:
310
mm
Center-to-center
diameter:
282.5
mm
Max.
outer
diameter:
400
mm
Installation
space
required:
425
mm
The
Significant
Advantages
of
AIRSUSTECH
Air
Springs
An
air
spring
functions
as
a
precisely
engineered
flexible
container
that
encapsulates
a
compressed
air
column.
The
rubber-fabric
bellows
acts
solely
as
a
containment
structure,
while
the
pressurized
air
column
provides
the
actual
force
generation
and
load
support.
This
sophisticated
design
allows
for
dynamic
adjustment
and
consistent
performance
under
varying
conditions.
AIRSUSTECH
air
springs
feature
a
meticulously
engineered
four-layer
composite
structure:
-
Inner
Liner:
Calendered
rubber
layer
providing
airtight
sealing
and
smooth
interior
surface
-
First
Reinforcement
Ply:
Fabric-reinforced
rubber
with
optimized
cord
orientation
for
initial
strength
-
Second
Reinforcement
Ply:
Additional
fabric
layer
with
cords
positioned
at
specific
bias
angles
to
the
first
ply,
creating
a
cross-ply
pattern
that
maximizes
structural
integrity
-
Outer
Cover:
Protective
calendered
rubber
layer
resisting
environmental
damage
and
wear
Other
Convoluted
Rubber
Bellows
Model
Numbers
|
AIRSUSTECH
NO.
|
Firestone
|
Dunlop
Pneuride
|
Dunlop
Springride
|
Contitech
|
Norgren
|
Parker
|
|
2
3/4''×2P
|
|
2
3/4''×2
|
SP2904
|
FD
22-4
DI
|
|
9109009
|
|
2B4.5×2P
|
W01-R58-4051
|
4
1/2''×2
|
SP2441
|
FD
44-10
DI
|
PM/31042
|
9109401
|
|
2B4.5×2-E
|
|
|
|
|
|
|
|
2B6×2T(AI)
|
W01-R58-4070
|
6''×2(AI)
|
SP2917
|
FD
76-14
DI
|
PM/31062
|
9109001A
|
|
2B6×2T(Steel)
|
W01-R58-4053
|
6''×2(Steel)
|
SP1482
|
FD
76-14
DS
|
M/31062
|
9109001
|
|
2B8×2T
|
W01-R58-4055
|
8''×2
|
SP1490
|
FD
138-18
DS
|
M/31082
|
9109011
|
|
2B10×2T
|
W01-R58-4058
|
10''×2
|
SP1538
|
FD
210-22
DS
|
M/31102
|
9109021
|
|
2B12×2T
|
W01-R58-4061
|
12''×2
|
SP1541
|
FD
412-22
DS
|
M/31122
|
9109041
|
|
2B12''×2-E
|
W01-R58-4039
|
12''×2
Extend
|
SP2782NB
|
|
|
|
|
2B14
1/2''×2T
|
W01-R58-4064
|
14''
1/2×2
|
SP1556
|
FD
614-26
DS
|
M/31142
|
9109061
|
|
2B16×2T
|
W01-R58-4067
|
16''×2
|
SP1557
|
FD
816-30
DS
|
M/31162
|
9109171
|
