| Price | Negotiable |
| MOQ | 1 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1H1026 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability | 1000pcs/week |
| Stroke | 126 MM | Place of Origin | Guangzhou, China |
| Bellows Type | Single Convolution | Warranty | One Year |
| Part Number | 1H1026 | Max. Usable Diameter | 569 MM |
| Packaging Details | Strong Carton Box or as Customers Requirement | Material | Natural Rubber |
| Model Number | 1H1026 | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram | Firestone | W01-M58-7718 |
| Price | Negotiable | Delivery Time | 3-8 Working Days |
| Minimum Order Quantity | 1 pieces | Supplier | AIRSUSTECH |

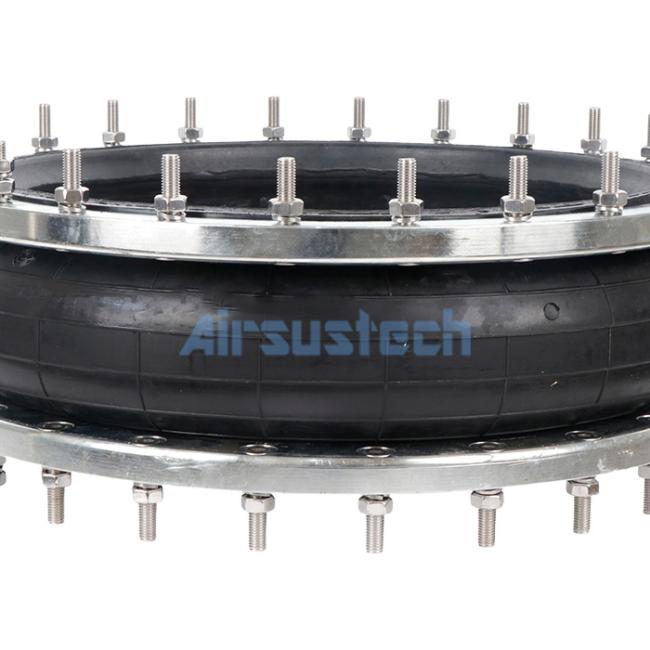

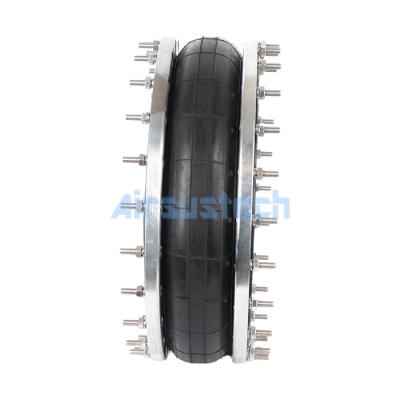

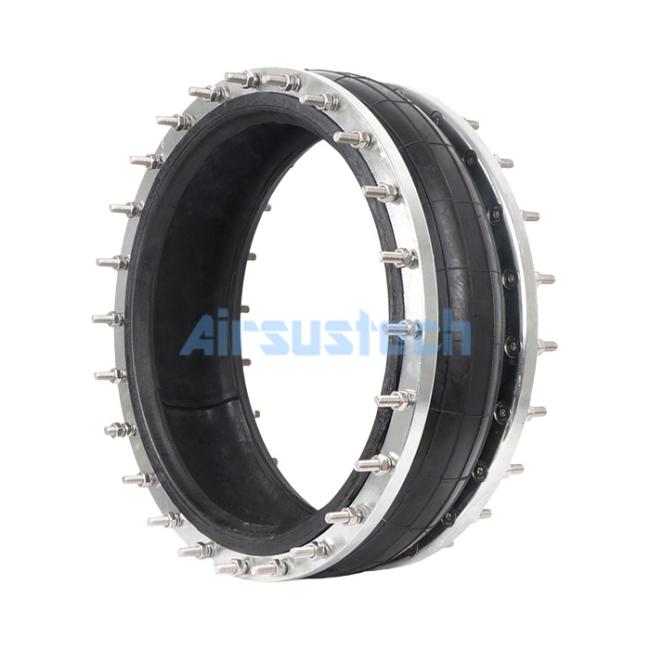

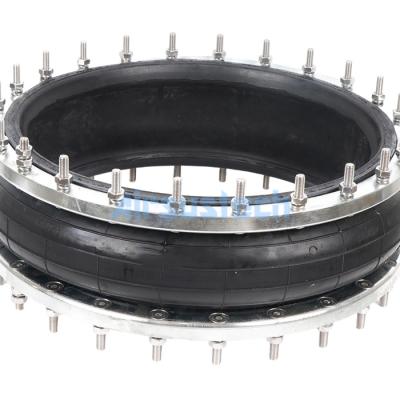

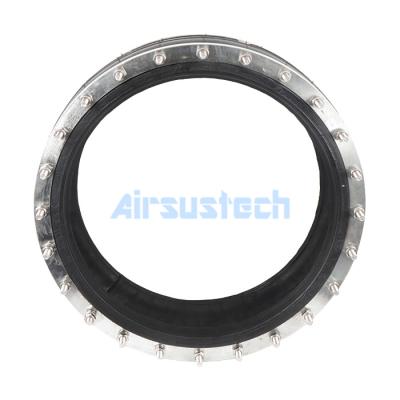

Industrial Air Bellows Only W01-358-1026 Cross Firestone W01-M58-6973 with Flange
| Gauge Pressure (BAR) | Load (kN) | Spring Rate (kN/m) | Natural Frequency (Hz) |
|---|---|---|---|
| 3 | 53.10 | 1184 | 2.35 |
| 4 | 71.42 | 1512 | 2.29 |
| 5 | 89.75 | 1828 | 2.25 |
| 6 | 109.40 | 2154 | 2.21 |
| 7 | 127.49 | 2458 | 2.19 |
| Assembly Height (mm) | Volume @ 100 BAR (cu cm) | EFF Area @ 7 BAR (cu sq) | kN Force | ||||
|---|---|---|---|---|---|---|---|
| @ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR | |||
| 160 | 27186 | 1355 | 37.05 | 51.09 | 64.81 | 80.58 | 94.86 |
| 140 | 23871 | 1660 | 47.71 | 64.48 | 81.24 | 99.48 | 116.2 |
| 120 | 20206 | 1863 | 54.46 | 73.23 | 91.96 | 111.95 | 130.41 |
| 100 | 16216 | 2006 | 58.95 | 79.48 | 99.52 | 120.68 | 140.38 |
| 80 | 12022 | 2101 | 62.03 | 83.35 | 104.45 | 126.58 | 147.09 |
| 60 | 7743 | 2153 | 63.76 | 85.23 | 106.86 | 129.60 | 150.66 |
Rubber bellows only
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
Rolled plate assembly, 1/2 blind nuts, 3/4 BSP
The Suspension Air Springs product technical support and services include:
| 1 | Expert troubleshooting assistance to diagnose and resolve technical issues |
| 2 | Guidance on proper installation and maintenance procedures |
| 3 | Product documentation, including user manuals and technical specifications |
| 4 | Product training and education for customers and service technicians |
| 5 | Warranty and repair services, including replacement parts and exchange programs |
| 6 | Customer support for urgent technical issues or service needs |
