Price	Negotiable
MOQ	1 pieces
Delivery Time	3-8 Working Days
Brand	AIRSUSTECH
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Model Number	1B7070
Packaging Details	Strong Carton Box or as Customers Requirement
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability	1000pcs/week

Product Details

Stroke	65 MM	Place of Origin	Guangzhou, China
Bellows Type	Single Convolution	Contitech	FS 70-7
Packaging Details	Strong Carton Box or as Customers Requirement	Color	Black
Threaded Hole	G1/4	Model Number	1B7070
Supply Ability	1000pcs/week	Certification	ISO/TS16949:2009
Brand Name	AIRSUSTECH	Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Price	Negotiable	Delivery Time	3-8 Working Days
Product NO.	1B7070	Minimum Order Quantity	1 pieces
Name of Goods	Industrial Convoluted Air Spring

1B7070 Convoluted Air Spring Direct Replacement Phoenix SP 1B 05 Air Suspension

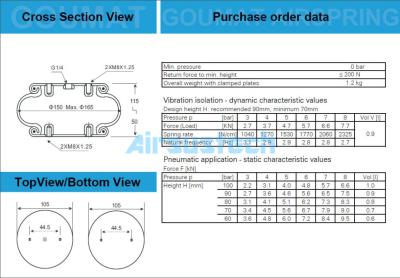

The Technical Datas of 1B7070 Air Bag

Minimum height: 50 mm

Maximum height: 115 mm

Maximum diameter: 165 mm

Cover plate width: 105 mm

Center to center distance: 44.5 mm

Natural diameter: 150 mm

Threaded hole type: 2×M8×1.25

Port Size: G1/4

OEM Part Numbers

The Features of AIRSUSTECH Air Spring Assembly

Crimped Assembly: This robust construction method ensures the structural integrity and reliability of the air actuator, bolstering its ability to withstand operational demands over a prolonged period.
Convoluted Bellow Made with Natural Rubber: Crafted with high-quality natural rubber, the convoluted bellow ensures extraordinary dynamic performance. This feature offers exceptional versatility, making the actuator suitable for a broad spectrum of applications.
Exceptional Dynamic Capability: Designed for peak performance, this air actuator exhibits a very high dynamic capability. This allows for excellent responsiveness and adaptability under various operating conditions, further enhancing its effectiveness.
Excellent Universal Properties: With its premium construction and intelligent design, the air actuator exhibits outstanding universal properties. This allows it to adapt to diverse operational requirements and ensure consistent, high-quality performance.
Crimped Steel Zinc Plated Top and Bottom Plates: The air actuator is equipped with top and bottom plates crafted from crimped, zinc-plated steel. This results in enhanced durability and corrosion resistance, ensuring that the device can endure even the harshest of operating environments.

Other Single Type Air Springs Cross Phoenix Air Bellows

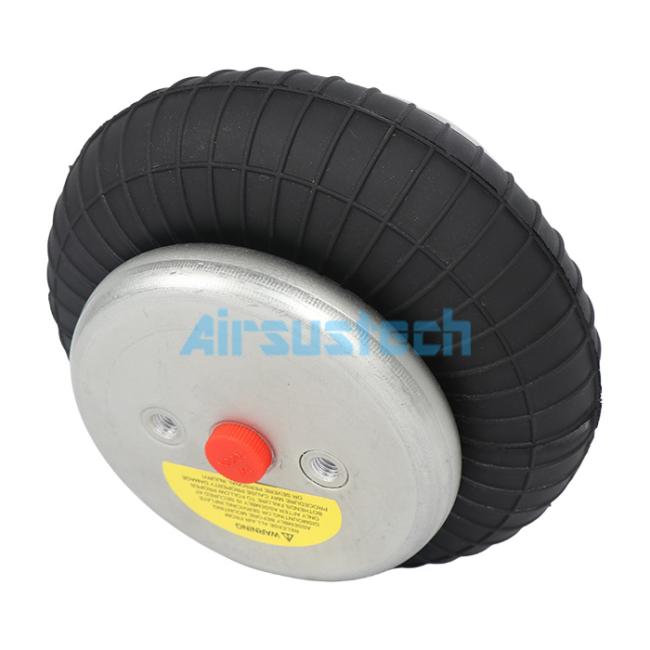

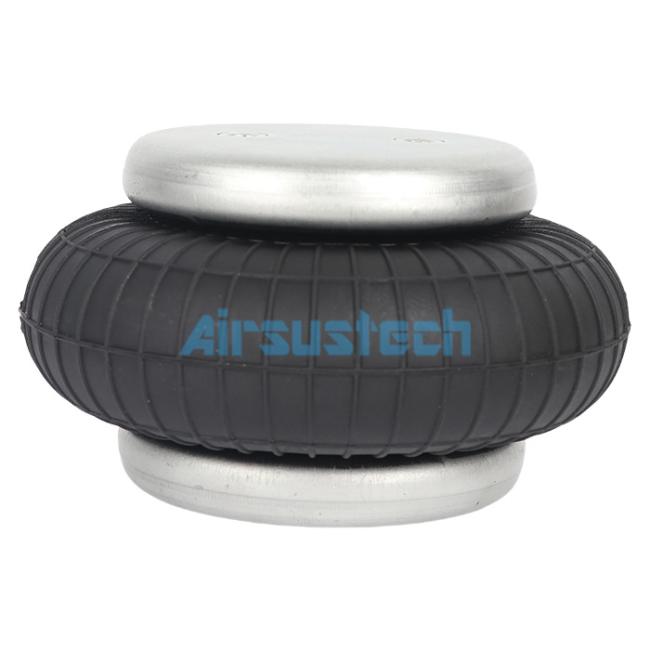

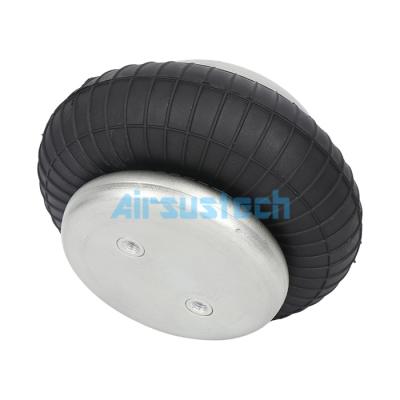

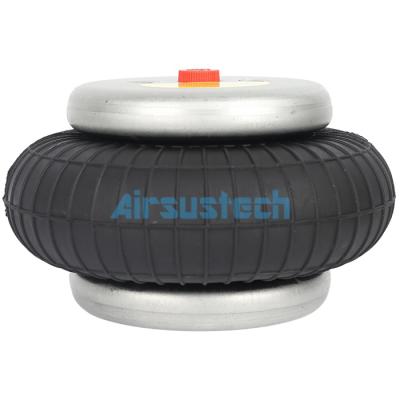

AIRSUSTECH 1B7070 Real Pictures
