| Price | Negotiable |
| MOQ | 1 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B5510S |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability | 1000pcs/week |
| Stroke | 70 MM | Place of Origin | Guangzhou, China |
| Packaging Details | Strong Carton Box or as Customers Requirement | Color | Black |
| Number of Ply Bellows | 1 | After-sales Service | 12 Months |
| Model Number | 1B5510S | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram | Goodyear | 1B5-550 |
| Price | Negotiable | Delivery Time | 3-8 Working Days |
| Product NO. | 1B5510S | Gas Hole | 1/4''BSP |
| Minimum Order Quantity | 1 pieces |
579-91-3-501 Goodyear Pneumatic Air Spring Stroke 70MM for Anti-Vibration Table
The Technical Parameters of 1B5510S Air Bag
Min. compressed height: 50 mm
Max. extended height: 120 mm
Full stroke: 70 mm
Cover plate diameter: 85 mm
Max. outer diameter: 150 mm
Center to center distance: 44.5 mm
Threaded hole: 3/8''UNC
Air connection: 1/4''BSP
Manufacturer Part Numbers
|
Goodyear Bellow NO. 579-91-3-501 Goodyear Bellow NO. 579913501 Goodyear Bellow NO. 579 91 3 501 |
|
Goodyear Manufacturer Number: 1B5-550 Goodyear Manufacturer Number: 1B5550 Goodyear Manufacturer Number: 1B5 550 |
|
Enidine Inc. YI-1B5-510 Enidine Inc. YI1B5510 Enidine Inc. YI 1B5 510 |
The Must be Enough Clearance Around The Air Bellows
The Detailed Data of Other Air Bags Cross Goodyear Convoluted Air Springs
| Part No. | Usable Stroke | Max Dia. @ 100 psi In | Min Height Inches | Max Height Inches | Bumper | Force At Actuator Height Limit (Pounds) | Force At Compressed Height Limit (Pounds) | ||||||
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi | ||||||
| 1B5-500 | 2.00 | 5.70 | 1.80 | 3.80 | NO | 570 | 425 | 290 | 175 | 1525 | 1210 | 900 | 595 |
| 1B5-502 | 2.00 | 5.70 | 1.80 | 3.80 | NO | 570 | 425 | 290 | 175 | 1525 | 1210 | 900 | 595 |
| 1B5-503 | 2.00 | 5.70 | 1.80 | 3.80 | NO | 570 | 425 | 290 | 175 | 1525 | 1210 | 900 | 595 |
| 1B5-510 | 3.00 | 6.00 | 1.80 | 4.80 | NO | 530 | 390 | 260 | 145 | 1620 | 1290 | 955 | 635 |
| 1B5-512 | 3.00 | 6.00 | 1.80 | 4.80 | NO | 530 | 390 | 260 | 145 | 1620 | 1290 | 955 | 635 |
| 1B5-520 | 4.00 | 6.50 | 1.80 | 5.80 | NO | 445 | 305 | 180 | 80 | 2100 | 1660 | 1230 | 850 |
| 1B5-521 | 4.00 | 6.50 | 1.80 | 5.80 | NO | 445 | 305 | 180 | 80 | 2100 | 1660 | 1230 | 850 |
| 1B9-201 | 2.70 | 11.00 | 3.20 | 5.90 | YES | 1575 | 1215 | 875 | 560 | 5130 | 4090 | 3045 | 2010 |
| 1B9-202 | 3.60 | 11.00 | 2.30 | 5.90 | NO | 1575 | 1215 | 875 | 560 | 5625 | 4500 | 3350 | 2225 |
| 1B9-204 | 3.60 | 11.00 | 2.60 | 5.90 | NO | 1575 | 1215 | 875 | 560 | 5625 | 4500 | 3350 | 2225 |
| 1B9-205 | 2.70 | 11.00 | 3.20 | 5.90 | YES | 1575 | 1215 | 875 | 560 | 5130 | 4090 | 3045 | 2010 |
| 1B9-207 | 3.60 | 11.00 | 2.30 | 5.90 | NO | 1575 | 1215 | 875 | 560 | 5623 | 4500 | 3350 | 2225 |
| 1B9-208 | 2.70 | 11.00 | 3.20 | 5.90 | YES | 1575 | 1215 | 875 | 560 | 5130 | 4090 | 3045 | 2010 |
| 1B12-301 | 13.20 | 4.60 | 2.60 | 7.20 | YES | 3640 | 2710 | 1840 | 1095 | 9035 | 7110 | 5250 | 3480 |
| 1B12-304 | 13.20 | 4.90 | 2.30 | 7.20 | NO | 3640 | 2710 | 1840 | 1095 | 9195 | 7185 | 5305 | 3520 |
| 1B12-305 | 4.60 | 13.20 | 2.60 | 7.20 | YES | 3640 | 2710 | 1840 | 1095 | 9035 | 7110 | 5250 | 3480 |
| 1B12-313 | 4.90 | 13.20 | 2.30 | 7.20 | NO | 3640 | 2710 | 1840 | 1095 | 9195 | 7185 | 5305 | 3520 |
| 1B14-350 | 1.90 | 15.20 | 2.30 | 7.20 | NO | 4910 | 3705 | 2625 | 1605 | 13320 | 10585 | 7975 | 5290 |
| 1B14-351 | 3.00 | 15.20 | 4.20 | 7.20 | YES | 4910 | 3705 | 2625 | 1605 | 11760 | 9345 | 7000 | 4630 |
| 1B14-352 | 4.90 | 15.20 | 2.30 | 7.20 | NO | 4910 | 3705 | 2625 | 1605 | 13320 | 10585 | 7975 | 5290 |
| 1B14-362 | 3.00 | 15.90 | 2.30 | 8.30 | NO | 4865 | 3625 | 2530 | 1520 | 14870 | 11705 | 8730 | 4795 |
| 1B14-364 | 6.00 | 15.90 | 2.30 | 8.30 | NO | 4865 | 3625 | 2530 | 1520 | 14870 | 11705 | 8730 | 5795 |
| 1B15-375 | 5.60 | 17.50 | 2.30 | 7.90 | NO | 4980 | 3775 | 2470 | 1490 | 16750 | 13450 | 9665 | 6510 |
| 1B15-376 | 3.70 | 17.50 | 4.20 | 7.90 | YES | 4980 | 3775 | 2470 | 1490 | 13960 | 11140 | 8295 | 54656 |
| 1B15-377 | 5.60 | 17.50 | 2.30 | 7.90 | NO | 4980 | 3775 | 2470 | 1490 | 16750 | 13450 | 9665 | 6510 |
| 1B15-378 | 3.70 | 17.50 | 4.20 | 7.90 | YES | 4980 | 3775 | 2470 | 1490 | 13960 | 11140 | 8295 | 5465 |

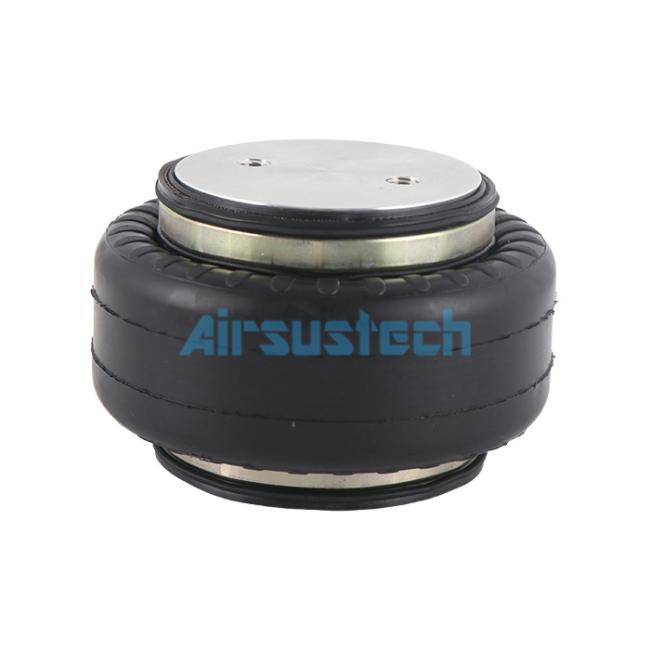

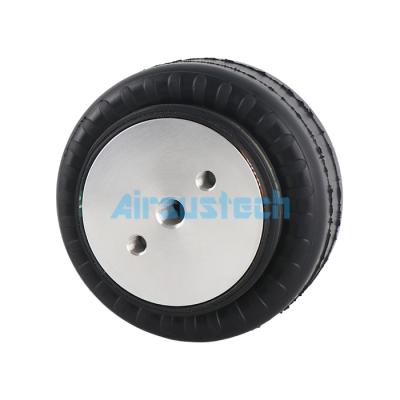

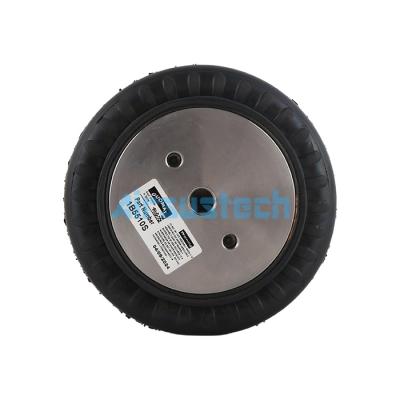

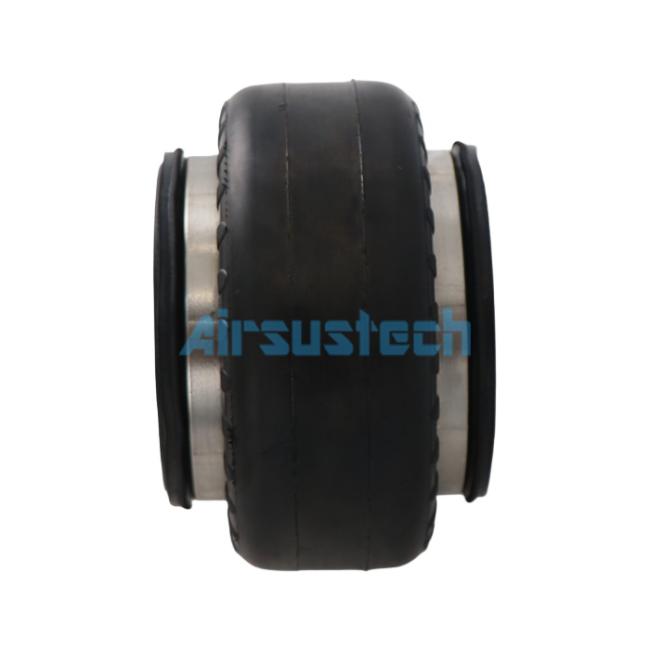

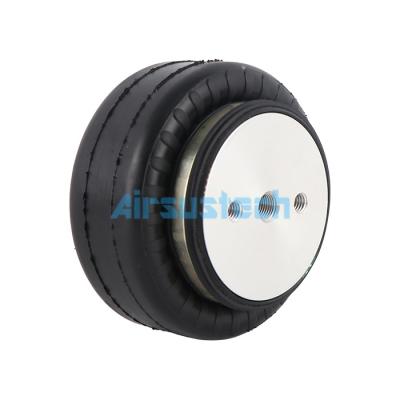

The Real Pictures
