Price	Negotiable
MOQ	1 pieces
Delivery Time	3-8 Working Days
Brand	AIRSUSTECH
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Model Number	1B130070
Packaging Details	Strong Carton Box or as Customers Requirement
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability	1000pcs/week

Product Details

Place of Origin	Guangzhou, China	Bellows Type	Single Convoluted
Max. Extended Height	100 MM	Transportation	By Sea/By Air/By DHL/By FedEx/By UPS
Packaging Details	Strong Carton Box or as Customers Requirement	Threaded Hole	M10
Compressed Height	50 MM	Model Number	1B130070
Supply Ability	1000pcs/week	Certification	ISO/TS16949:2009
Brand Name	AIRSUSTECH	Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Brand	AIRSUSTECH	Model NO.	1B130070
Price	Negotiable	Delivery Time	3-8 Working Days
Quality	100% Tested	Minimum Order Quantity	1 pieces

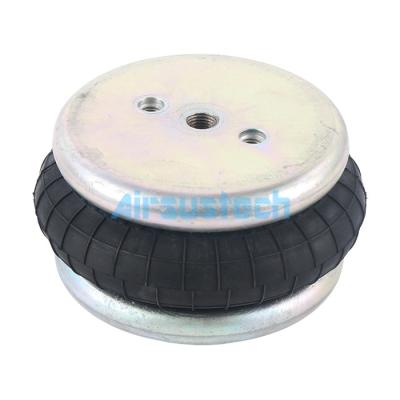

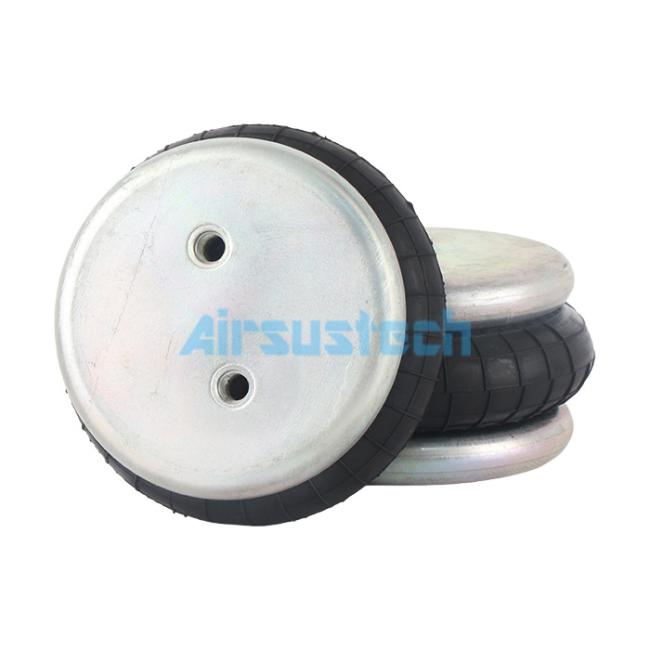

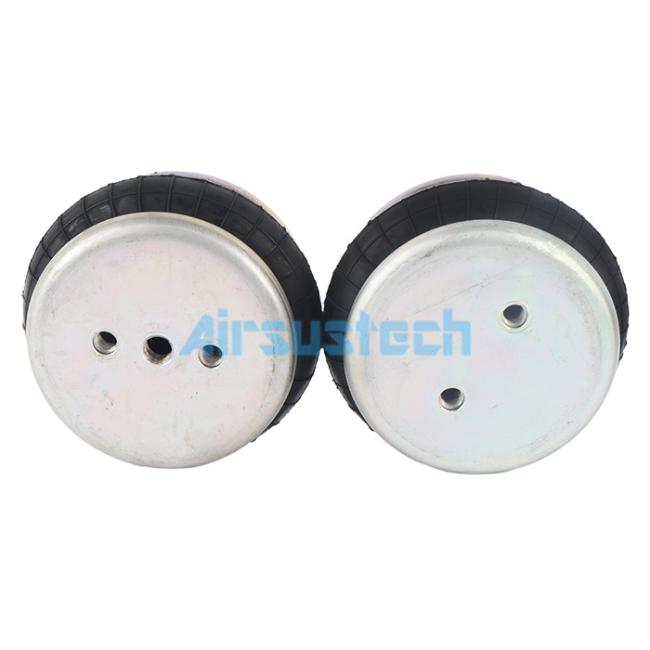

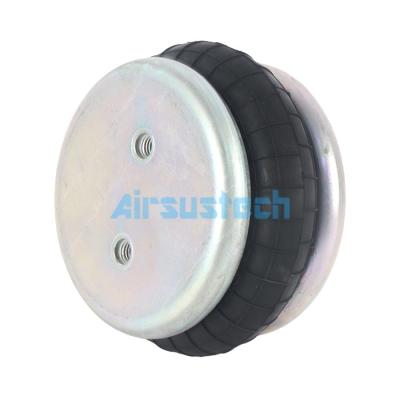

Stroke 41MM W01-358-0017 Firestone Air Spring Assembly Use for Anti-Vibration Table

Product Attributes

Attribute	Value
Brand	AIRSUSTECH
Model NO.	1B130070
Threaded Hole	M10
Compressed Height	50 MM
Max. Extended Height	100 MM
Bellows Type	Single Convoluted
Quality	100% Tested
Transportation	By Sea/By Air/By DHL/By FedEx/By UPS

Product Specifications: AIRSUSTECH VS. Firestone

Firestone Style 16 Cross References

Blind nuts, 1/4BSP	W01-M58-6140, W01M586140, W01 M58 6140 WO1-M58-6140, WO1M586140, WO1 M58 6140
Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws)	W01-358-0017, W013580017, W01 358 0017 WO1-358-0017, WO13580017, WO1 358 0017
Rubber bellows only	W01-358-0010, W013580010, W01 358 0010 WO1-358-0010, WO13580010, WO1 358 0010

Blind nuts, 1/4NPT	W01-358-7001, W013587001, W01 358 7001 WO1-358-7001, WO13587001, WO1 358 7001
Blind nuts, 3/4NPT	W01-358-6996, W013586996, W01 358 6996 WO1-358-6996, WO13586996, WO1 358 6996
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)	W01-358-0017, W013580017, W01 358 0017 WO1-358-0017, WO13580017, WO1 358 0017
3/4NPT (only) upper plate, blind nuts lower plate	W01-358-0286, W013580286, W01 358 0286 WO1-358-0286, WO13580286, WO1 358 0286
Rubber bellows only	W01-358-0010, W013580010, W01 358 0010 WO1-358-0010, WO13580010, WO1 358 0010

Do You Know What Role Air Springs Play in Industry?

Air springs are used in a variety of mechanical devices to dampen and absorb vibration, control motion or increase pressure. Compared with air cylinders or other elastic elements with the same function, the air spring has a simple structure, reliable operation, no complicated parameter calculation and structural design, no seal leakage, convenient use and maintenance, and long service life.
During the stamping process such as stamping, the car cover, door, etc., should use the necessary buffer devices. The buffer must withstand large periodic shock loads during handling. Its performance directly affects the machining accuracy of the product. Using air springs as buffers can reduce machining costs and ensure machining accuracy. In material conveying, the silo is driven by a vibrator to make the material evenly mixed or flow into the silo. Vibration can cause fatigue and even damage the bin supports, so vibration isolation devices must be used.
More flexibility is provided if air springs are used. Adjusting the amount of spring inflation can meet different working load and height requirements without affecting the vibration isolation effect.
