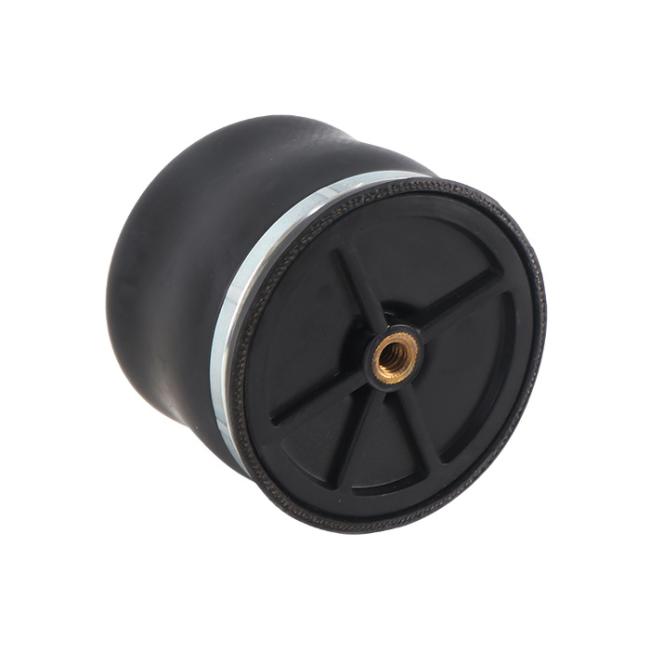

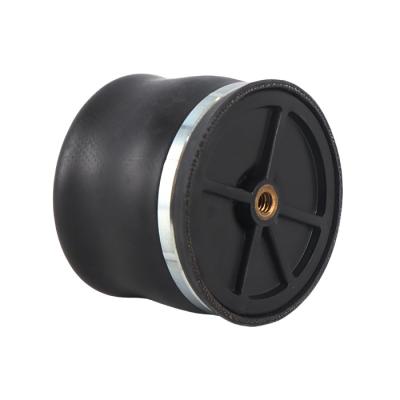

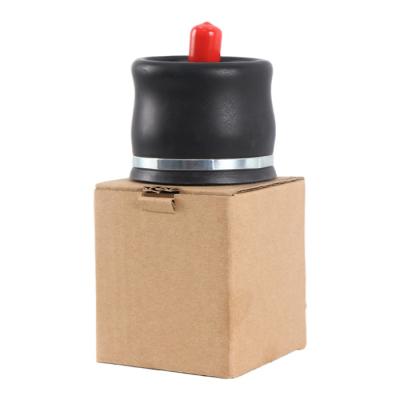

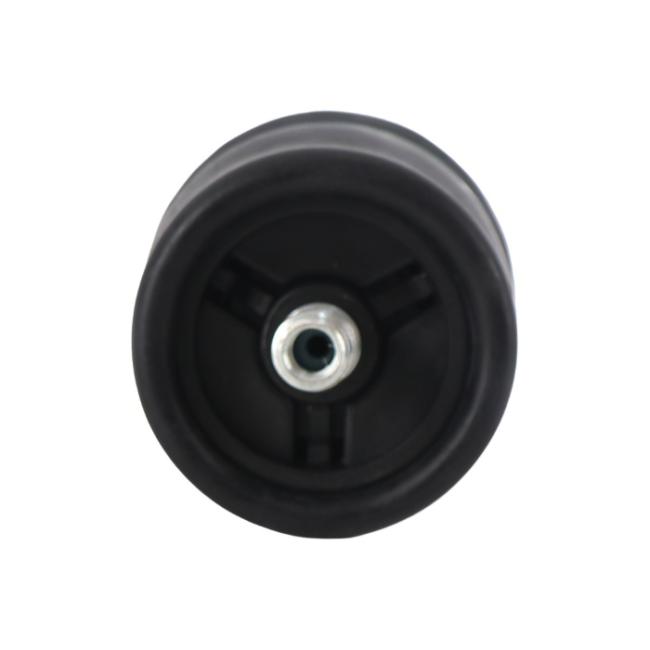

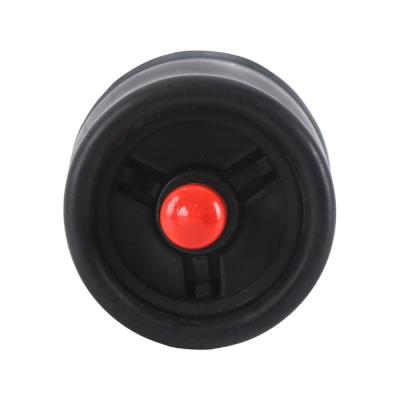

Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension

Price	Negotiable
MOQ	1 pieces
Delivery Time	3-8 Working Days
Brand	AIRSUSTECH
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Model Number	G3014
Packaging Details	Strong Carton Box or as Customers Requirement
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability	1000pcs/week

Product Details

Product Specification

Air Fitting	1/4NPT	Stroke	1.8 Inches
Place of Origin	Guangzhou, China	Warranty	12 Months
Sample	Available	Packaging Details	Strong Carton Box or as Customers Requirement
Model Number	G3014	Supply Ability	1000pcs/week
Certification	ISO/TS16949:2009	Brand Name	AIRSUSTECH
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram	Firestone	W02-358-3001
Model No.	G3014	Price	Negotiable
Delivery Time	3-8 Working Days	Minimum Order Quantity	1 pieces
Temperature Range	-40℃+70℃	Supplier	AIRSUSTECH

Product Description

Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension

Product Attributes

Attribute	Value
Supplier	AIRSUSTECH
Model No.	G3014
Air Fitting	1/4NPT
Sample	Available
Stroke	1.8 Inches
Firestone	W02-358-3001
Temperature Range	-40℃+70℃
Warranty	12 Months

Product Description

Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension

Product Corresponding Models

ContiTech SK37-6P02
ContiTech SK376P02
ContiTech SK37 6P02
Goodyear 1S3-013
Goodyear 1S3013
Goodyear 1S3 013
Firestone W02-358-3000
Firestone W023583000
Firestone W02 358 3000
Firestone W02-358-3001
Firestone W023583001
Firestone W02 358 3001
Prevost 95020

Product Specifications and Technical Data

[1] Minimum height: 1.5 in.

[2] Maximum height: 3.3 in.

[3] Total stroke: 1.8 in.

[4] Piston height: 0.98 in.

[5] Maximum outer width: 3.46 in.

[6] Installation space: 3.94 in.

[7] Piston diameter: 2.99 in.

[8] Top plate width: 2.40 in.

[9] Air fitting: 1/4 NPT, 5/8-11UNC

[10] Screw type: 5/16-18UNC

Vibration Isolation - Dynamic Characteristics Values

Pressure P [psi]	40	60	80	100	120	Vol. V[l]
Force (Load) [lbf]	231	327	439	553	677	9.15
Spring Rate [lbf/in.]	174	241	312	378	441
Natural Frequency [Hz]	2.8	2.7	2.7	2.6	2.6

Pneumatic Application - Static Characteristic Values

Pressure p	[psi]	40	60	80	100	120	Vol.[l]
Height H [in.]	3.0	180	262	347	431	519	12
	2.5	211	319	429	537	647	9.8
	2.0	226	341	456	574	691	7.3
	1.5	238	358	477	598	718	4.9

Ideal Applications

Ride springs for passenger cars and trucks
Isolators for truck cab suspensions
Seat springs and cab springs for trucks and buses
Actuators and isolators for industrial applications

Six Reasons to Choose Us

High stability
In situ installation
Ride comfort
Safe and durable
Effective shock absorption
Reduce the sound

We Have Other Sleeve Types Air Springs

Part Number	Piston Number	Cross Reference
1S3-011	ASB-06-7-014	FIRESTONE W02-358-4001 LES AUTOBUS G5006637 LINK CAB&SEAT SPRINGS 1101-0001 NOVABUS N12687 PREVOST 95-0208
1S3-013	ASB-06-7-017	FIRESTONE W02-358-3000 FIRESTONE W02-358-3001 PREVOST 950208
1S4-007	ASC-08-7-139	CONTI 67770 CONTI SC29-0001 FIRESTONE W02-358-7001 FIRESTONE W02-358-7002 FIRESTONE W02-358-7031
1S4-008	ASC-08-7-005	FIRESTONE W02-358-7010 LINK CAB&SEAT SPRINGS 1101-0021 Mac-k truck TRUCK 227QS39301
1S4-016	ASC-08-7-137	INT'L/NAVISTAR 1680378c1
1S4-030	ASC-08-7-093	FREIGHTLINER 20-12461
1S4-035	ASC-08-7-163	CONTI 62844 CONTI SZ70-5060P02 FIRESTONE W02-358-7003 FIRESTONE W02-358-7050 FIRESTONE W02-358-7055
1S4-042	ASC-08-7-219	VOL-VO 66003-0007
1S4-044	ASC-08-7-194	CONTI 62561 CONTI SZ70-5067 LINK CAB&SEAT SPRINGS 1101-0023
1S4-056	ASC-08-7-194	FIRESTONE W02-358-7040 LINK CAB&SEAT SPRINGS 1101-0024
1S4-058	ASC-08-7-139	CONTI 67858 CONTI SC29-0086 FIRESTONE W02-358-7086
1S4-067	ASC-08-7-137	FIRESTONE W02-358-7007 Mac-k truck TRUCK 227QS34B
1S4-074	ASC-08-7-134	VOL-VO 66003-3201
1S4-123	ASC-08-7-157	CONTI 67769 CONTI SC29-0046 CONTI SZ70-5060P02 FIRESTONE W02-358-7046
1S4-175	ASC-08-7-157	CONTI 67858 CONTI SZ29-0086 LINK CAB&SEAT SPRINGS 1101-0025
1S4-187	579-08-1-049	DANA/SPICER SR1VA103
