| Price | Negotiable |
| MOQ | 1 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 1B1209 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability | 1000pcs/week |
| Temperature Rating | -40℃+70℃ | Place of Origin | Guangzhou, China |
| Product Number | 1B1209 | Packaging Details | Strong Carton Box or as Customers Requirement |
| Shipment | By Sea/By Air/By DHL/By FedEx/By UPS | Model Number | 1B1209 |
| Supply Ability | 1000pcs/week | Certification | ISO/TS16949:2009 |
| Brand Name | AIRSUSTECH | Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Brand | AIRSUSTECH | Firestone | W01-M58-6165 |
| Price | Negotiable | Delivery Time | 3-8 Working Days |
| Quality | 100% Tested | Minimum Order Quantity | 1 pieces |
| Production Process | Blasting Test | Quality Assurance | 12 Months |

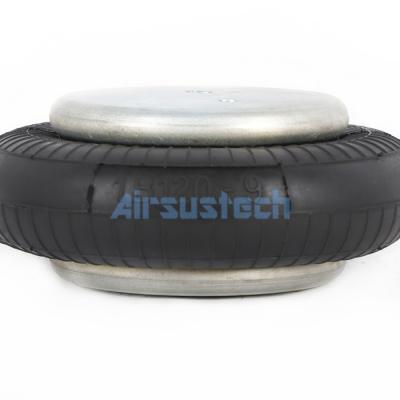

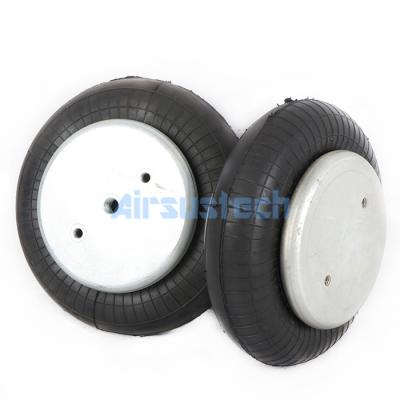

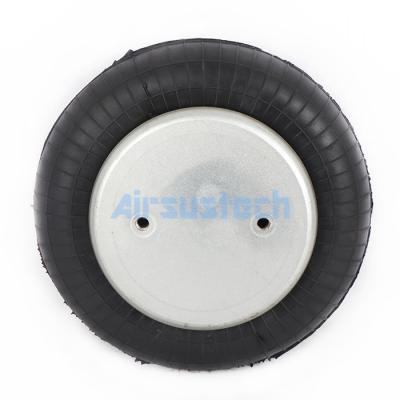

2PCS Suspension Air Spring Festo EB-215-80 Convoluted Pneumatic Rubber Air Actuator
Product Description
Air bellows are ideal for short-stroke, high-thrust, and single-acting actuators. They are made of fabric-reinforced synthetic rubber and are available with single, double, or triple rotations, depending on the stroke and model. Bellows contain no reciprocating metal parts, resulting in virtually frictionless thrust compared to conventional air cylinders.
Cross References
Phoenix
SP
1
B
07
Firestone
W01-M58-6165
Contitech
FS
120-9
Dunlop
8''x1
S08101
Bosch
822419003
Festo
EB-215-80
Norgren
PM/31081(8x1)
Weforma
WBE
300-E1
Airtech
140293
Airtech
111003/1B-190FB
Megatech
1S120-9
3/4
M8
Firestone
W01-M58-6166
Dunlop(FR)
8''x1
S08100
Bosch
822419008
Weforma
WBE
300-E2
Product Features
[1]
Mounting
thread:
M8
[2]
Compressed
air
supply
port:
G1/4
[3]
Maximum
Outside
Diameter:
215
mm
[4]
Bellows
Type:
single
convolution
[5]
Min.
installation
height:
50
mm
[6]
Max.
extended
height:
115
mm
[7]
C-to-C
distance:
70
mm
[8]
Total
Stroke:
65
mm
[9]
Cover
plate
diameter:
135
mm
Product Technical Parameters
Vibration isolation - dynamic characteristics values
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 |
| Spring Rate [N/cm] | 1315 | 1620 | 1925 | 2230 | 2535 | 2840 | |
| Natural Frequency [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 2.6 |
Pneumatic application - static characteristic values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 120 | 3.1 | 4.3 | 5.6 | 6.9 | 8.0 | 9.2 | 1.9 |
| 110 | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 | |
| 100 | 4.5 | 6.1 | 7.9 | 9.7 | 11.0 | 12.4 | 1.7 | |
| 90 | 5.0 | 6.8 | 8.9 | 10.8 | 12.2 | 13.8 | 1.5 | |
| 80 | 5.5 | 7.4 | 9.7 | 11.6 | 13.3 | 15.0 | 1.3 | |
| 70 | 5.9 | 7.9 | 10.3 | 12.3 | 14.2 | 16.0 | 1.1 | |
| 60 | 6.3 | 8.2 | 10.7 | 13.0 | 15.0 | 17.0 | 0.9 |
AIRSUSTECH Support and Services
The
Suspension
Air
Springs
product
technical
support
and
services
include:

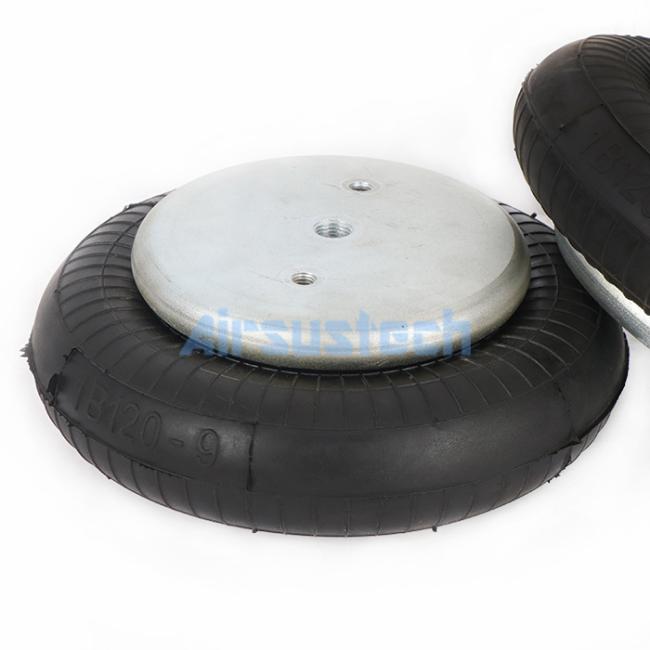

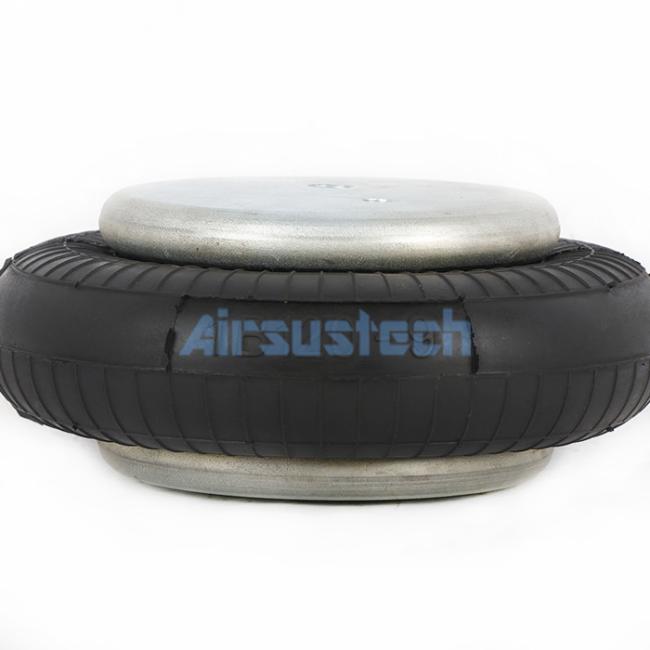

The Detailed Photos of 1B1209
