Price	Negotiable
MOQ	1 pieces
Delivery Time	3-8 Working Days
Brand	AIRSUSTECH
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Model Number	1B5021
Packaging Details	Strong Carton Box or as Customers Requirement
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability	1000pcs/week

Product Details

Air Connection	1/4NPTF	Place of Origin	Guangzhou, China
Product Number	1B5021	Packaging Details	Strong Carton Box or as Customers Requirement
Fitment Type	Direct Replacement	Operation	Gas-filled
Model Number	1B5021	Supply Ability	1000pcs/week
Certification	ISO/TS16949:2009	Brand Name	AIRSUSTECH
Payment Terms	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram	Firestone	W01-358-7451
Price	Negotiable	Delivery Time	3-8 Working Days
Minimum Order Quantity	1 pieces	Warranty Special	12 Months
Total Stroke	90 MM

Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring

Quick Details

Firestone Style 110 Cross References

Blind nuts, 1/4NPT	W01-358-7451 / W013587451 / W01 358 7451 WO1-358-7451 / WO13587451 / WO1 358 7451
Blind nuts, 3/4NPT	W01-358-7484 / W013587484 / W01 358 7484 WO1-358-7484 / WO13587484 / WO1 358 7484
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)	W01-358-0112 / W013580112 / W01 358 0112 WO1-358-0112 / WO13580112 / WO1 358 0112
Rubber bellows only	W01-358-0100 / W013580100 / W01 358 0100 WO1-358-0100 / WO13580100 / WO1 358 0100

Product Features

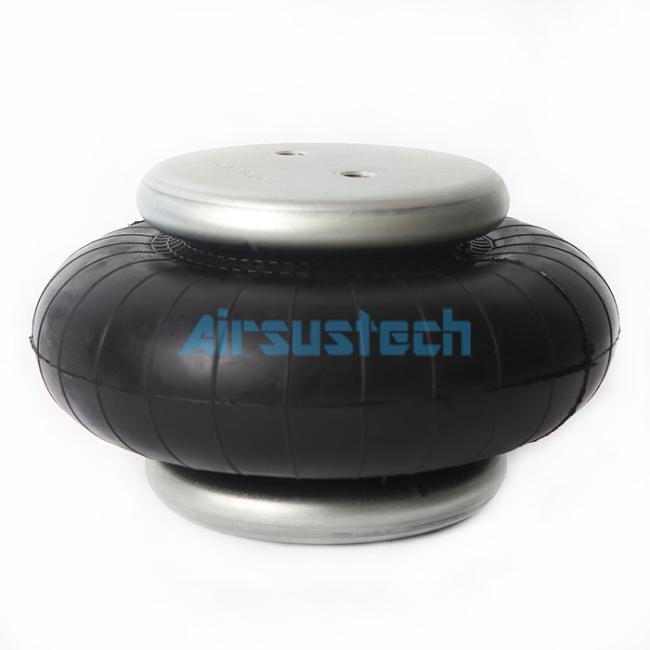

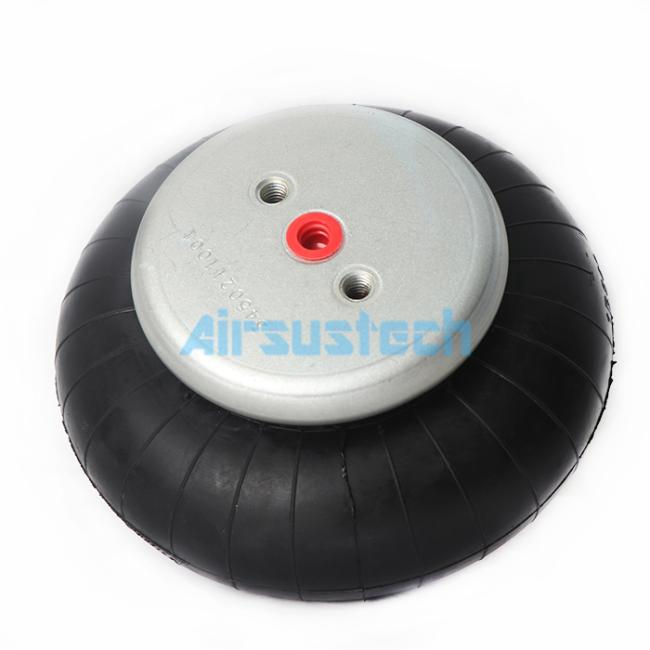

This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 50 mm, a maximum extended height of 140 mm, and a working stroke of 90 mm.
For the 1B5021 model, the cover plate diameter is 115 mm, and the center-to-center distance is 44.5 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 205 mm.
The industrial convoluted rubber air spring operates via gas filling. Its air connection is 1/4 NPTF, and the screw nut size is 2×3/8-16 UNC.

Applications

1. Pulp and paper industry

Used for vibration isolation in paper machines to reduce vibrations from rollers and cylinders, ensuring paper quality and minimizing equipment wear.

2. Lumber mills

Installed on saws and planers to absorb shocks during cutting and material handling, protecting machinery structure and reducing noise.

3. Lift tables

Act as cushioning elements in lifting mechanisms to ensure smooth vertical motion and prevent mechanical shocks from sudden load changes.

4. Tooling and machining systems

Isolate ground vibrations in precision machining equipment to maintain accuracy and suppress resonance during high-speed spindle operation.

Other Kinds of Firestone Industrial Air Bellows

The Detailed Pictures

Factory Workshop

Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
