| Price | Negotiable |
| MOQ | 1 pieces |
| Delivery Time | 3-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou, China |
| Certification | ISO/TS16949:2009 |
| Model Number | 2B8×2T |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability | 1000pcs/week |
| Place of Origin | Guangzhou, China | Packaging Details | Strong Carton Box or as Customers Requirement |
| Parker | 9109011 | Operation | Gas-Filled |
| Model Number | 2B8×2T | Supply Ability | 1000pcs/week |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram | Price | Negotiable |
| Delivery Time | 3-8 Working Days | Minimum Order Quantity | 1 pieces |
| Manufacturer | AIRSUSTECH | Maximum Height | 225 MM |
| Structure | Double Cylinder | Compatibility | Universal |
| Minimum Height | 72 MM |

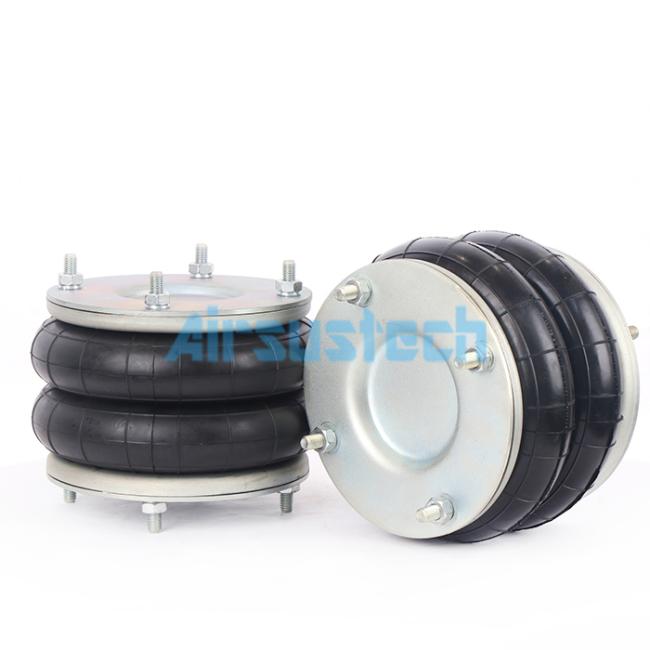

2PCS Dunlop Pneuride 8''×2 Air Spring Assembly M10 Screw for Pneumatic Applications
Quick Details
Manufacturer Warranty: 12 Months
Working Temperature: -40℃+70℃
Quality: 100% Tested
Origin of Place: Guangzhou, China
Packaging: Cartons Or As Customers' Request
Shipment: By Air,By Sea,By Express (DHL,UPS,FEDEX...)
HS Code: 8708809000
Product Information
| Nut/Blind nuts | |
| Nut length | 25 mm |
| Number of screws on the top cover | 4 |
| Number of bottom cover screws | 4 |
| Top cover plate screw (nut) tooth | 4-M10 |
| Top cover screw center distance | 156 mm |
| Screw (nut) teeth of the bottom cover plate | 4-M10 |
| Center distance of bottom cover plate screw | 156 mm |
| Air hole/air inlet/air connector | |
| Air hole/air inlet | 1/2BSP |
| Cover plate | |
| Top cover diameter | 184 mm |
| Diameter of bottom cover | 184 mm |
| Rubber bellows | |
| Max. diameter of rubber bellows | 230 mm |
| Buffer block/buffer block | |
| Waist ring/waist ring | |
| Strap ring: no strap ring | |
Superseded Part Number
| Dunlop Pneuride NO. | 8''×2, 8'×2, 8×2 |
| Firestone NO. |
W01-R58-4055, W01R584055, W01 R58 4055 WO1-R58-4055, WO1R584055, WO1 R58 4055 |
| Dunlop Springride NO. | SP1490, SP 1490, SP 14 90 |
| Contitech NO. |
FD 138-18 DS, FD 13818 DS, FD 138 18 DS FD138-18 DS, FD13818 DS, FD138 18 DS |
| Norgren NO. | M/31082, M31082, M 31082 |
| Parker NO. | 9109011 |
The Applications of Flange Ring Air Springs
The Datas of Other Types Flange Connection Air Bags
| Type | Plate Diameter (mm) | Max. Diameter (mm) | Min. Height (mm) | Max. Height (mm) | Total Stroke (mm) | Static Height (mm) | Center Distance (mm) | Space Installation (mm) |
| 6×1 | 153 | 168 | 45 | 90 | 45 | 80 | 127 | 180 |
| 8×1 | 184 | 230 | 47 | 120 | 73 | 90 | 156 | 240 |
| 10×1 | 210 | 280 | 50 | 135 | 85 | 95 | 181 | 295 |
| 12×1 | 260 | 330 | 50 | 145 | 95 | 95 | 232 | 345 |
| 14 1/2×1 | 310 | 395 | 47 | 165 | 118 | 105 | 283 | 410 |
| 6×2 | 153 | 168 | 73 | 170 | 97 | 120 | 127 | 180 |
| 8×2 | 184 | 230 | 72 | 225 | 153 | 150 | 156 | 240 |
| 10×2 | 210 | 280 | 70 | 240 | 170 | 160 | 181 | 295 |
| 12×2 | 260 | 330 | 74 | 240 | 166 | 160 | 232 | 345 |
| 14 1/2×2 | 310 | 395 | 70 | 280 | 210 | 180 | 283 | 410 |
| 16×2 | 310 | 430 | 77 | 320 | 243 | 180 | 283 | 445 |
| 6×3 | 153 | 168 | 105 | 255 | 150 | 180 | 127 | 180 |
| 8×3 | 184 | 215 | 100 | 350 | 250 | 230 | 156 | 240 |
| 10×3 | 210 | 280 | 100 | 365 | 265 | 235 | 181 | 295 |
| 12×3 | 260 | 330 | 100 | 430 | 330 | 222 | 232 | 345 |
| 14 1/2×3 | 310 | 395 | 100 | 476 | 376 | 280 | 283 | 410 |
| 16×3 | 310 | 430 | 125 | 500 | 375 | 280 | 283 | 445 |
