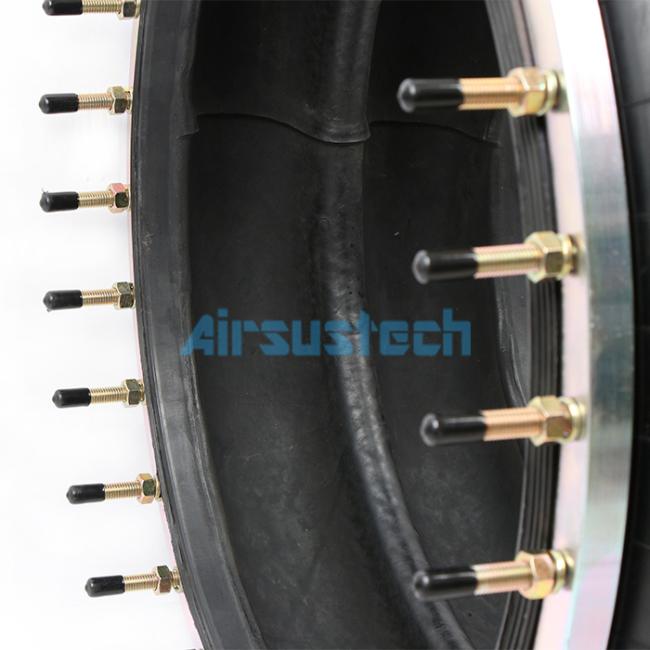

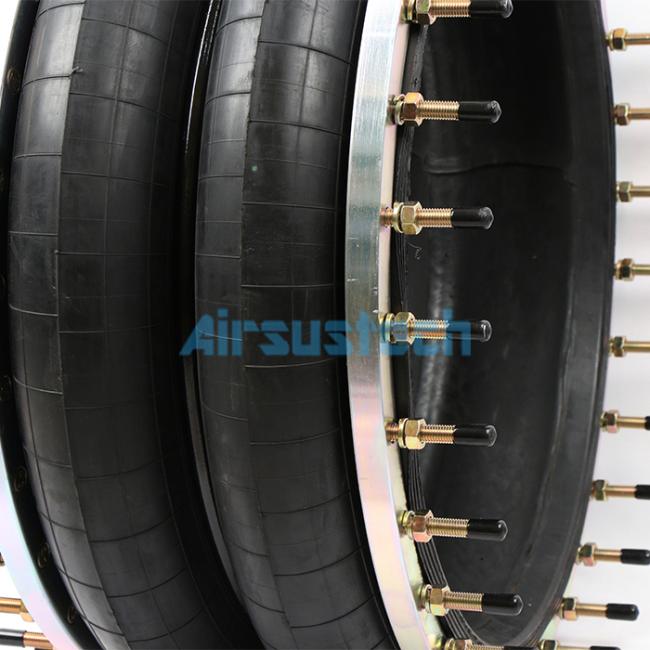

Firestone Rubber Air Spring W01-358-7772 Pneumatic Air Bellow Aluminum Bead Rings

Firestone Rubber Air Spring W01-358-7772 Pneumatic Air Bellow Aluminum Bead Rings

The Introduction of Flange Connection Air Springs

This series air suspension features a removable flange design for easy maintenance and replacement. Air spring bellows consist of four layers of material: an inner layer, two layers of re inforcement fabric, and an outer sleeve. Flange-mounted air springs utilize the compression and expansion of a rubber bladder to absorb shock and vibration. When a load is applied, the internal air pressure adjusts to the weight, allowing the air spring to maintain a stable height and effectively isolate vibrations from external sources. Its design features sealed end plates and requires no additional components for easy installation. This construction provides excellent shock and impact absorption for increased comfort and safety. These air springs are ideal for use in a wide variety of machinery and vehicles, offering reliable performance in a wide range of applications.

Product Specifications

Operating Temperature: -40℃+70℃
Working Pressure: 0 bar... 8 bar
Maximum Diameter: 26.0 inches
Number of Convolutions: two
Working Stroke: 8.5 inches
Operation: gas filled
Materials - Body: natural rubber and aluminum
Dimensions - Min. Height: 3.5 inches
Dimensions - Max. Height: 12 inches

Dimensions - Cover Plate: 22.64 inches

Center to Center Distance Diameter: 22.00 inches

Bolts Type: 24(3/8-24) bolts
Country of Origin: China

The Same Firestone Style 200 Air Rubber Bellows

We Also Have Other Air Bags Replacements to Firestone Rubber Air Springs

Firestone W01-358-7772 200C B.RING 1 7/8 BNW
Firestone W01-358-7775 200C B.RING EVEN 3/8 BNW
Firestone W01-358-7781 233D2 RB 4X3/8BN 1/4OFF
Firestone W01-358-7789 20F2 B.RING 1 3/4 BNW
Firestone W01-358-7798 313C RB 4X3/8BN 1/4NPT OFF 4BN
Firestone W01-358-7801 313C B.RING 1 3/4B,N,W
Firestone W01-358-7802 313C 4X3/8BN 3/4NPT OFFSET 4BN
Firestone W01-358-7807 313C RB 4X3/8BN 3/4OFF 4BN
Firestone W01-358-7811 313C RB 4X3/8BN 1/4NPT 4BN
Firestone W01-358-7813 211CH B.RING 1 7/8 BNW
Firestone W01-358-7815 39D 4X3/8BN 3/4NPT (HSC)
Firestone W01-358-7826 324C 4BN ROLLCRIMP
Firestone W01-358-7829 324C B.RING 1 7/8 BNW HSC
Firestone W01-358-7834 211CH B.RING 1 7/8 BNW
Firestone W01-358-7838 333C RB 3/8BN 1/4NPT
Firestone W01-358-7842 333C 4BN 3/4NPT 4BN
Firestone W01-358-7845 333C 4BN 1/4NPTOFF
Firestone W01-358-7849 333C RB BN 3/4NPT
Firestone W01-358-7864 333C 4BN 1/2NPT
