| Price | Negotiable |
| MOQ | 5 |
| Delivery Time | 5-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Model Number | 3H6971 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union, Paypal or Others |
| Supply Ability | 1000PCS/Week |
| Place of Origin | Guangzhou,China | Bellow MAX. OD | 950 MM |
| Packaging Details | Strong Carton Box or as Customers Requirement | Product Name | AIRSUSTECH Air Springs |
| Distance between bolts | 830 MM | Bolts Type | M10×1.5 |
| Material | Rubber+Aluminum | Minimum Height | 140 MM |
| Model Number | 3H6971 | Supply Ability | 1000PCS/Week |
| Certification | ISO/TS16949:2009 | Brand Name | AIRSUSTECH |
| Payment Terms | T/T, Western Union, Paypal or Others | Price | Negotiable |
| Delivery Time | 5-8 Working Days | Minimum Order Quantity | 5 |
| Maximum Height | 584 MM |
The flange air springs are adjustable. By controlling the pressure of compressed air, the height and hardness of the vehicle can be adjusted. This allows the driver to adjust the vehicle's suspension system according to road conditions and personal needs, providing a more comfortable and stable driving experience. Whether driving on city roads or rugged mountain roads, flange air springs can provide optimal suspension adjustment.
Specifications and Technical Parameters:
3H6971 Specifications:
Bolts Type: M10×1.5
Number of Bolt: 40
Distance Betweeen Bolts: 830 mm
Top Cover Plate Diameter: 890 mm
Bottom Cover Plate Diameter: 890 mm
Bellow MAX. Diameter at 7 Ba: 950 mm
Minimum Height: 140 mm
Maximum Heigh: 584 mm
3H6971 Technical Parameters:
| Force Table (Use for Airstroke actuator design) | |||||||
|
Assembly Height (mm) |
Volume @ 7BAR (cu cm) |
EFF Area @ 7 BAR (cm sq) |
kN Force | ||||
|
@ 3 BAR |
@ 4 BAR |
@ 5 BAR |
@ 6 BAR |
@ 7 BAR |
|||
| 480 | 270750 | 4561 | 127.37 | 173.02 | 217.83 | 270.35 | 319.21 |
| 440 | 250951 | 4919 | 138.66 | 188.24 | 237.29 | 292.98 | 344.32 |
| 400 | 230507 | 5189 | 146.63 | 199.91 | 252.25 | 310.21 | 363.21 |
| 360 | 208945 | 5418 | 153.57 | 209.53 | 264.45 | 324.50 | 379.23 |
| 320 | 185692 | 5635 | 160.48 | 217.86 | 274.75 | 337.23 | 394.37 |
| 280 | 161999 | 5837 | 166.81 | 225.16 | 283.33 | 348.39 | 408.53 |
| 240 | 138075 | 6014 | 171.63 | 231.86 | 290.68 | 357.85 | 420.92 |
| 200 | 113324 | 6165 | 175.04 | 238.45 | 297.89 | 366.36 | 431.46 |
| 160 | 87906 | 6334 | 180.41 | 245.13 | 306.87 | 377.11 | 443.32 |
Cross References:
| Firestone |
W01-M58-6971, W01 M58 6971, W01M586971 WO1-M58-6971, WO1 M58 6971, WO1M586971 |
|
W01-358-9603, W01 358 9603, W01358 9603 WO1-358-9603, WO1 358 9603, WO13589603 |
|
|
W01-358-1023, W01 358 1023, W013581023 WO1-358-1023, WO1 358 1023, WO13581023 |
Product Application:
FAQ:
Q: Why should you buy from us not from other suppliers?
A: Our company specializes in various models of steering parts, chassis parts, engine parts, transmission parts, and whole vehicle maintenance products. We can accept product customization and have 18 years of experience in domestic and foreign trade.
Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.
Q: Is the sample available?
A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

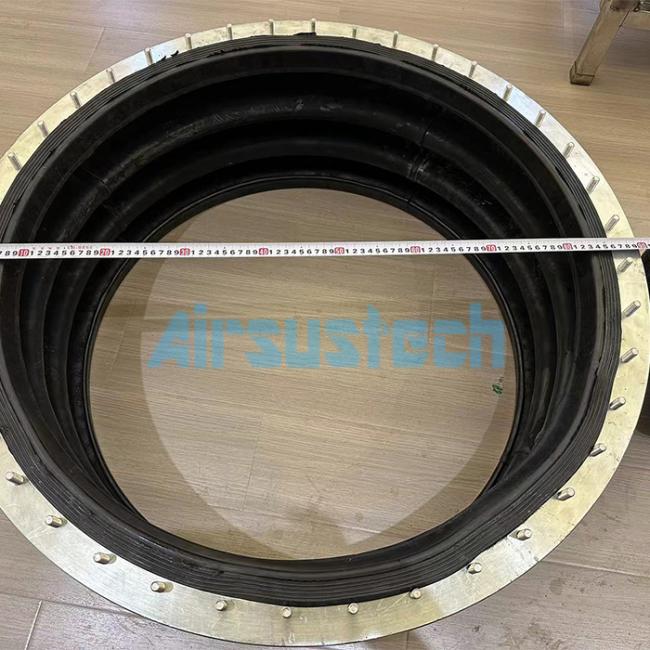

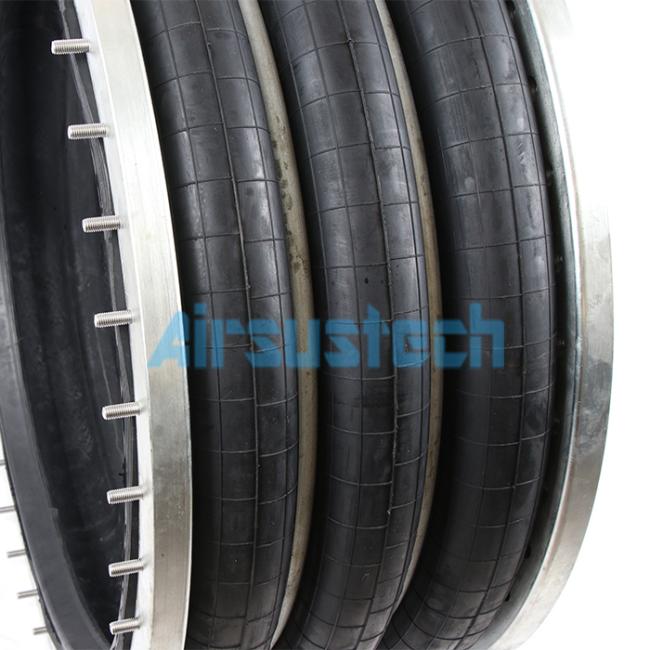

The Real Pictures of 3H6971:
