| Price | Negotiable |
| MOQ | 3Pieces |
| Delivery Time | 5-8 Working Days |
| Brand | AIRSUSTECH |
| Place of Origin | Guangzhou China |
| Certification | ISO/TS16949:2009 |
| Model Number | 2B7781 |
| Packaging Details | Strong Carton Box or as Customers Requirement |
| Payment Terms | T/T, Western Union, Paypal or Others |
| Supply Ability | 1000PCS/Week |
| Min. Height | 104mm | Place of Origin | Guangzhou China |
| Warranty | 12 Months | Position | Front Or Rear |
| Packaging Details | Strong Carton Box or as Customers Requirement | Material | Rubber and Iron |
| Convolution Number | Double Convoluted | Model Number | 2B7781 |
| Supply Ability | 1000PCS/Week | Certification | ISO/TS16949:2009 |
| Brand Name | AIRSUSTECH | Payment Terms | T/T, Western Union, Paypal or Others |
| Type | Industrial Air Spring | OEM No. | Ridewell 1003587781C |
| Packing | Neutral Box Or As Customers' Request | Delivery Time | 5-8 Working Days |
| OEM | Welcome | Minimum Order Quantity | 3Pieces |
Ridewell 1003587781C Double Convoluted Rubber Industrial Air Springs
OEM numbers: Ridewell 1003587781C,Firestone Part No. W01-358-7781, Firestone Part No. W01 358 7781, Firestone Part No. W013587781, Firestone Part No. WO1-358-7781, Firestone Part No. WO1 358 7781, Firestone Part No. WO13587781, Contitech FD 530-35 545; Contitech FD 530 35 545, Contitech FD530-35 545, Contitech FD530 35 545; Contitech FD53035 545; Contitech FD53035545
Applicable to: .After market spare parts for industrial equipments, trucks and heavy vehicles
2B7781 specifications and Tecnical Data
4pcs ×3/8-16UNC nut/blind nut Top plate screw (nut) teeth; 3/4NPT Air hole/air inlet/air fittings; 289mm top/bottom cover plate; 406mm max. rubber bellows; minumum 104mm to maximum 391mm working stroke; with bumper/bumper block; one piece of belt loop/girdle hoop/girdle ring
About air spring
The main function of the rubber air spring is to eliminate and reduce the transmission of mechanical vibration, and finally achieve the purpose of noise reduction, shock absorption and impact reduction.
The rubber air spring is a curved capsule made of rubber as the main raw material, and uses air as the medium for balancing, buffering, and transmitting pressure. In the actual application process, the performance requirements of different parts of the rubber air spring are different. Generally, the outer rubber layer of the air spring needs to be resistant to aging, flexing, and has good adhesion to the cord, and has a high tensile stress; the inner rubber layer needs to be resistant to aging, has low air permeability, and has good adhesion to the cord; the cord requires a rubber compound It has the characteristics of flex resistance, heat resistance and high adhesion of cloth layer.
Operational Cautions
Air Spring failure can be caused by a variety of situations, including internal or external rubbing, excessive heat and overextension.
Temperature/Pressure Range
The ambient operating temperature range for standard air springs may vary. See the technical parameters or consult relevant personnel
The maximum pressure is 100 PSI.
Packing details, Delivery and Payment
|
Packing |
Delivery |
Payment |
|
1. Neutral strong box |
1. Small quantity, we could ship the goods by express, such as Fedex-IP, DHL, UPS, TNT and so on. |
T/T, Western Union, Paypal or Others |
|
2. Do customized as per customers' requirements |
2. Large quantity: by sea or others. |

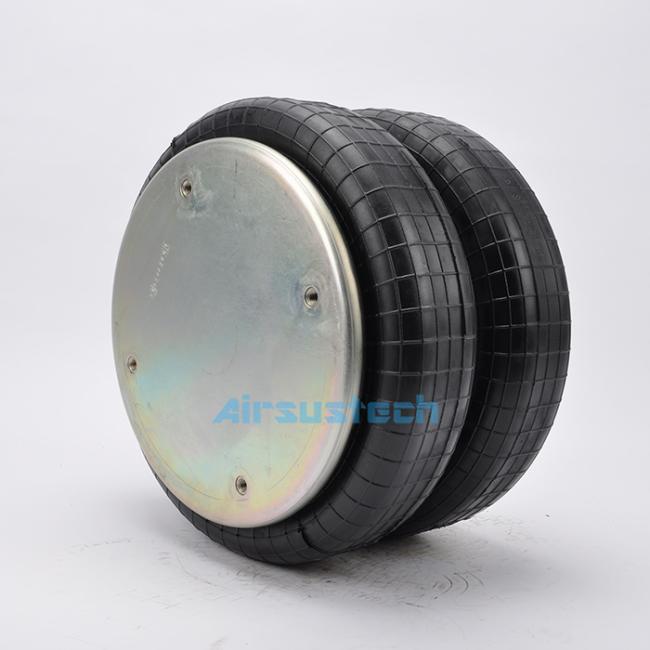

The related picture of 2B7781 air spring/pneumatic cylinder
