Electric 2.2KW Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine

Price	By negotiation
MOQ	1set
Delivery Time	Min.30working days
Brand	I-suntop
Place of Origin	China
Certification	SGS
Packaging Details	Plastic film+wooden box
Payment Terms	L/C,T/T
Supply Ability	Up to different machine

Product Details

Product Specification

Place of Origin	China	Warranty	1year
Packaging Details	Plastic film+wooden box	cutting machine	2.2KW
Supply Ability	Up to different machine	Certification	SGS
Brand Name	I-suntop	Payment Terms	L/C,T/T
Price	By negotiation	Delivery Time	Min.30working days
Max Capacity	5-10mm	Minimum Order Quantity	1set
Application	for FTTH drop cable

Product Description

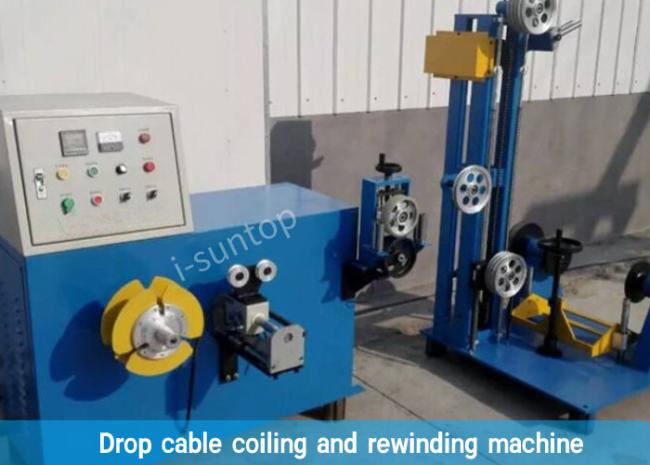

Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine

High-speed heavy-duty FTTH drop cable cutting machine is suitable for looping, meter counting and binding of the ftth drop cable, butterfly cable, 12 core cable, etc. The equipment has the advantages of high production efficiency, good cable arrangement quality, no pressing, orderly arrangement and convenient cable removal, which completely solves the problems of low production efficiency and poor cable arrangement quality of the previous optical cable industry.

2. Specification for Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine

Cable dia	5.0~10.0mm
Cut the cable length	Lam≤990M
Appropriate weight	400kgs,5CBM
Outer diameter of reel	φ 380mm (adjustable)
Inner core of reel	φ 120mm
Reel width:	40-120mm
Winding shaft speed	0-600r / min
Power supply	220VAC 50/60Hz
Cable cutting type	drop cable, butterfly cable, self-supporting drop cable, 12 core cable
Power:	2.2KW
cable send speed	cable send speed

3. Features for Indoor And Outdoor FTTH Drop Cable Coiling And Rewinding Machine

It is quick and convenient to load and unload the reel. The cantilever type combined guide wheel is used for cable storage, and the linkage brake mechanism is used for paying off without disorderly line.
Smooth rod type guide wheel and tension type automatic cable arrangement are adopted for cable arrangement. The cable arrangement is neat and beautiful. Mature operators can arrange one reelcable in 30-40 seconds.
After the optical cable is in a circle, the self expanding cable take-up shaft can be used, the inner diameter can be freely tightened, can be quickly tied and easily removed, with high efficiency and short time.
Right side put in cable and left side put out the cable.
Spindle motor speed 1650.
