| Price | By negotiation |
| MOQ | 1set |
| Delivery Time | Min.30working days |
| Brand | I-SUNTOP |
| Place of Origin | china |
| Certification | SGS |
| Model Number | isp-1897 |
| Packaging Details | Plastic film+wooden box |
| Payment Terms | L/C, T/T |
| Supply Ability | Up to different machine |
| Place of Origin | china | Packaging Details | Plastic film+wooden box |
| Model Number | isp-1897 | Supply Ability | Up to different machine |
| Certification | SGS | Weight | 32KG |
| Noise level | <70dBA | Brand Name | I-SUNTOP |
| Payment Terms | L/C, T/T | Stripping lengths | Front end:0-50mm (1.95in) Rear end:0-30mm (1.17in) |
| Wire range | 0.1-6.0mm2 (AWG10-AWG32) | Price | By negotiation |
| Delivery Time | Min.30working days | Minimum Order Quantity | 1set |
| Twisting lengths | Front end :0-50mm (1.95in) Rear end:0-30mm (1.17in) | power | AC220V |
1. Description of Automatic Wire Stripping And Twisting Machine
·The machine adopts the digital intelligent control device, the key operation, the performance is stable, the operation is convenient
·Aimed at the electronic wire, silicon rubber wire, wire, fiberglass wire, isolation line, and other automatic cutting, stripping and semi-stripping
2. Technical of Description of Automatic Wire Stripping And Twisting Machine
|
Wire range |
0.1-6.0mm2
(AWG10-AWG32) |
|
Stripping lengths |
Front end:0-50mm (1.95in) Rear end:0-30mm (1.17in) |
|
Twisting lengths |
Front end :0-50mm (1.95in) Rear end:0-30mm (1.17in) |
|
Max.conduit diameter |
6-7mm(0.234-0.273in) |
|
Length accuracy |
±(0.002*L)mm |
|
Productivity |
83-167pcs/min (L=100mm) |
|
Noise level |
<70dBA |
|
Electrical connection |
AC 220/110V/50/60HZ 450W |
|
Operation interface |
Bilingual |
|
Wire material |
PVC, Braided ,Fiberglass Wire |
|
Machine dimension |
420*390*280mm (16.38*15.21*10.92in) |
|
Weight |
32kg |

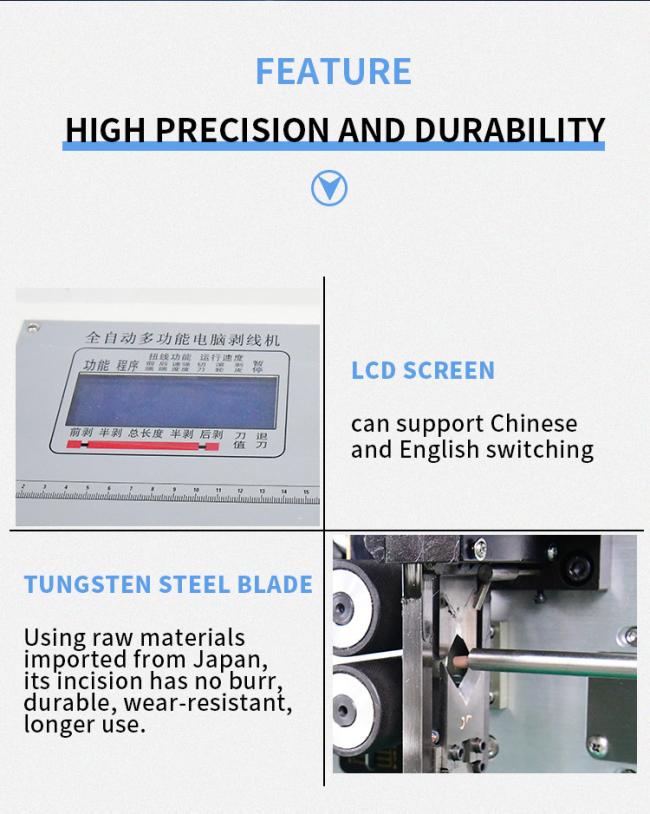

3. Features for Automatic Wire Stripping And Twisting Machine
