| Price | USD300/KM ~ USD1000/KM |
| MOQ | 2KM |
| Delivery Time | 7-11 working days |
| Brand | OEM/Takfly |
| Place of Origin | China |
| Certification | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number | GYTA53 |
| Packaging Details | 2-4km per Wooden Drum |
| Payment Terms | T/T, Western Union, MoneyGram, Paypal, L/C |
| Supply Ability | 2000km channels each month |
| Long Term Tensile Strength | 1000N | Outer Sheath Material | HDPE , MDPE |
| Place of Origin | China | Thickness of Outer sheath | 1.7mm |
| Packaging Details | 2-4km per Wooden Drum | Product Name | 12 to 144 Cores GYTA53 Outdoor Fiber Optic Cable |
| Model Number | GYTA53 | Fiber Type | SM G652D , G657A , G657B |
| Supply Ability | 2000km channels each month | Certification | CE,ROHS,REACH,ISO9001,ISO14001 |
| strength member | Steel wire or Steel wire with PE cover | Armored | Steel |
| Brand Name | OEM/Takfly | Payment Terms | T/T, Western Union, MoneyGram, Paypal, L/C |
| Price | USD300/KM ~ USD1000/KM | Delivery Time | 7-11 working days |
| Minimum Order Quantity | 2KM | Length per Drum | 2KM or customized |
| Short Term Tensile Strength | 3000N | Loose tube | PBT/PP |

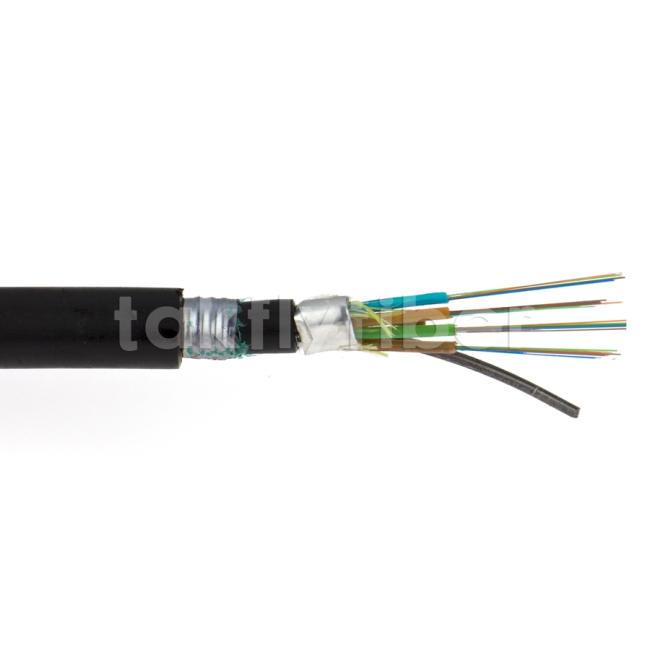

12 to 144 Cores GYTA53 Outdoor Fiber Optic Cable , SM G652D, For Duct and Direct buried
GYTA53 Outdoor Fiber Optic Cable Description:
GYTA53 Outdoor Fiber Optic Cable is widely used in Aerial, Duct, Direct buried Outdoor Application, because it's double armored structure.
GYTA53 uses metal strength member as central strength member to provide excellent strain performance of the cable. Double jacket structure provide the cable nice properties of moisture resistance and crush resistance.
Double armored structure provides cable good property of rodent-resistance. A layer of water-blocking material is appliedaroundthe cable core to prevent water ingress. It can be used for duct and direct buried application.
S
GYTA53 Outdoor Fiber Optic Cable Characteristic
GYTA53 Outdoor Fiber Optic Cable Application:
Fiber Charateristic:
| G.652.D | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
GYTA53 Outdoor Fiber Optic Cable Technical Data:
| Item | Contents | Value |
| Loose tube | material | PBT/PP |
| diameter | Ф2.0mm | |
| Central strength member | material | Steel wire/Steel wire with PE cover |
| diameter | Ф1.4~2.0mm | |
| Inner sheath | material | MDPE/HDPE |
| Thickness | 1.0mm | |
| Outer sheath | material | MDPE/HDPE |
| Thickness | 1.7mm |
GYTA53 Outdoor Fiber Optic Cable Mechanical characteristic:
| Cable type |
Diameter (mm) |
Weight (Kg/km) |
Max.Tension (N) |
Crush Resistance (N/100mm) |
Min. Bending Radius (mm) |
Storage temperature (℃) |
|
| Long/Short Term | Long/Short Term | Dynamic | Static | ||||
| GYTA53-2~60 | 12.5 | 160 | 600/1500 | 1000/3000 | 20D | 10D | -20~+70 |
| GYTA53-62~72 | 14.5 | 210 | 1000/3000 | ||||
| GYTA53-74~96 | 15.7 | 245 | |||||
| GYTA53-122~144 | 18.5 | 320 | |||||
For your information, established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
1. We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
2. Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
3. Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
4. High quality, attractive price and fast delivery
