| Price | US$0.01~37.99/PC |
| MOQ | 50 |
| Delivery Time | 5-15 working days depends on QTY |
| Brand | Takfly/DF/OEM |
| Place of Origin | Shenzhen, China |
| Certification | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number | FTKS-1805-24A1,FTKS-1805-24A2 |
| Packaging Details | Export Standard Packing |
| Payment Terms | Western Union, T/T, MoneyGram, Paypal |
| Supply Ability | 50000PCS/Month |
| Place of Origin | Shenzhen, China | IL | ≤0.2dB |
| Size | 320*240*100mm, 317 x 237 x101mm | Packaging Details | Export Standard Packing |
| Product Name | Proof and Waterproof IP65 FTTH Fiber Optic Termination Box | Color | Grey/White |
| Input Port | 2 | Adapter | SC |
| Material | ABS and PC | Model Number | FTKS-1805-24A1,FTKS-1805-24A2 |
| Supply Ability | 50000PCS/Month | Certification | CE/ROHS/REACH/ISO9001/ISO14001 |
| Brand Name | Takfly/DF/OEM | Payment Terms | Western Union, T/T, MoneyGram, Paypal |
| Price | US$0.01~37.99/PC | Delivery Time | 5-15 working days depends on QTY |
| Minimum Order Quantity | 50 | Working Temperature | -40～+85℃ |
| Water Proof | IP65 | Return Loss | ≥60dB(APC); ≥50dB |
| Application | FTTH/FTTX | Output Port | 24 |

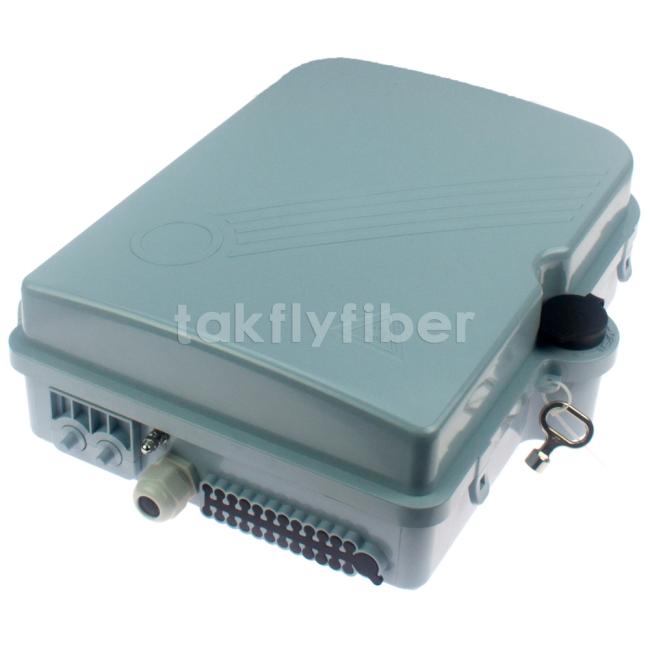

Dust Proof IP65 FTTH Fiber Optic Termination Box Outdoor Network
Takfly's 24 port Fiber Termination Box comes in a compact and easy to use design. This model is applicable for wall-mount or pole mount, Indoor or outdoor rails installation. Generally used for Fiber To The Home fiber termination and splicing.
Fiber Optic Termination Box Features:
Fiber Optic Termination Box Specification:
| Work Temperature | -40 ⁰ C ~+85 ⁰C |
| Relative Humidity | ≤85% (+30 ⁰C) |
| Atmospheric Pressure | 70Kpa~106Kpa |
| Insert Loss | ≤0.2dB |
| UPC Return Loss APC | ≥50dB |
| Return Loss | ≥60dB |
| Pull out Life Insulation | ≥1000 times |
| Withstand Voltage | The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current) Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current) |
Configuration table:
| Model | Description | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | |
| A*B*C(mm) | Splitter | Splice | A*B(mm) | ||
| FTKS-1805-24A1 | Distribution Box | 320*240*100 | 24 | 24 | 190*298 |
| FTKS-1805-16C | Distribution Box | 320*240*100 | 16 | 16 | 190*298 |
| FTKS-1805-12C | Distribution Box | 225*200*65 | 12 | 12 | 168*210 |
| FTKS-1805-24A2 | Distribution Box | 317*237*101 | 24 | 24 | 274*206 |
Fiber Optic Termination Box Application:
FTTH, FTTB, FTTX, LAN, WAN

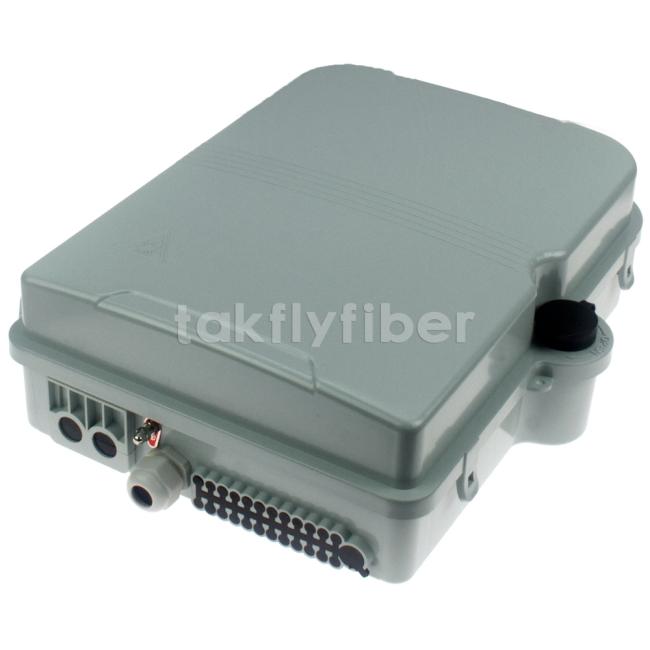

More Pictures:
Why
choose
TAKFLY---
Advantages
as
follows:
Professional
manufacturer:
Quality
Control:
Delivery:
Price: If your QTY is big, the price could be negotiated.
