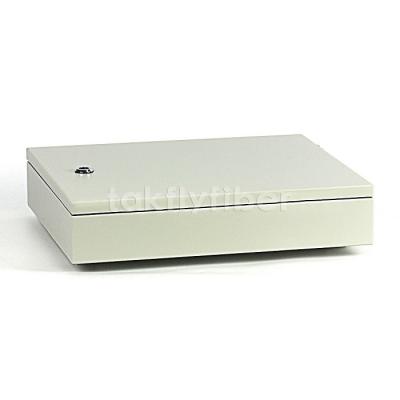

24 FC Port Outdoor Wall Mount Fiber Optic Patch Panel For FTTB FTTX

24 FC Port Outdoor Wall Mount Fiber Optic Patch Panel For FTTB FTTX

Wall Mount Patch Panels are a means of simplifying maintenance in the future, furthering the overall efficiency of your fiber optic network.

You cannot beat the safety, security, and convenience of a Fiber Optic Wall Mount Patch Panel. Keeping your fiber connections organized in a secure and centralized location safeguards delicate network components, while promoting efficiency through expediting system maintenance as well as minimizing network downtime.

The Wall Mount Fiber Optic Patch Panel is also called Wall Mount terminal box , which is made of quality metal. The material has excellent mechnical strength. It is of nice shape and appearance with electro-static spray painting. The maximum volume is 24, 12 cores. Each tray can be drawing out. The internal storage structure allows storing fiber and fiber pigtail, as well as storing excess active connector of fiber pigtail.Therefore it is easy for capacity expansion.


Wall Mount Fiber Optic Patch Panel Features:

• Dimension (cm): 35*38*7cm
• Weight (kg):4.2
• Outdoor using, water-proof, capacity is 24 cores
• FC, LC, SC, ST output interfaces optional
• Splice tray inside changeable
• Standard size, light weight and reasonable structure
• Large working space to integrate the pigtail, cables and adapters


Wall Mount Fiber Optic Patch Panel Application:

• Telecommunications subscriber loop.
• Fiber to the home (FTTH).
• LAN/WAN.
• CATV.

Wall Mount Fiber Optic Patch Panel Specification:

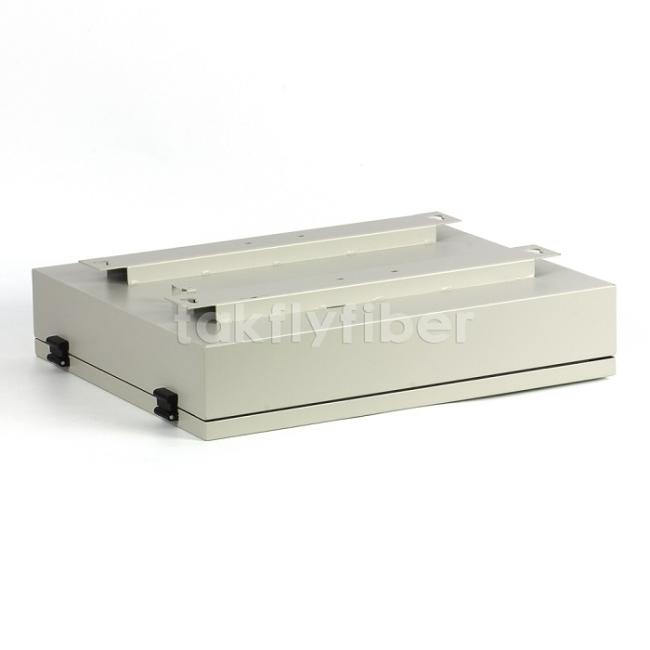

Fiber Optic Patch Panel Picture:


Why choose TAKFLY--- Advantages as follows:
Professional manufacturer:

1. More than 21 years manufacturing experience in Fiber optic products-one stop purcharsing.
2. More than 450 assembly workers with 3 years experienced;
3. More than 26 R&D Engineers;
4. 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines;
5. More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
6. OEM Brand is acceptable.
7. Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
8. After-sales Services: Available for 24 hours.

Quality Control:

1. Spot check the raw material incoming inspection before production;
2. Fully check after every individual process finished;
3. Fully check production half done;
4. Fully check the finished products before packing;
5. Spot check before shipping;

Delivery:

1. Samples: 1-3 working days.
2. Mass Production Order: 3-7 working days.
3. Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.

I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!

If you're interested in our products or have any doubt, why not send me inquiry at once?
