| Price | USD300/pcs ~ USD1000/pcs |
| MOQ | 2KM |
| Delivery Time | 4-6 working days |
| Brand | OEM/Takfly |
| Place of Origin | China |
| Certification | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number | GYFTS, GYTS |

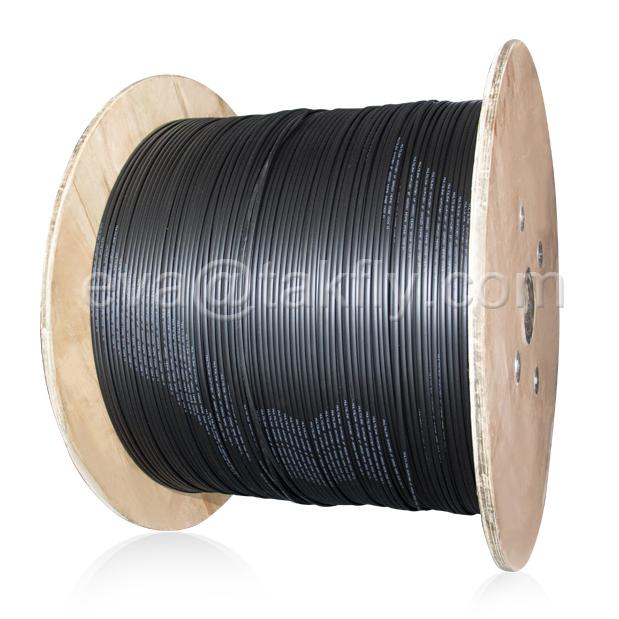

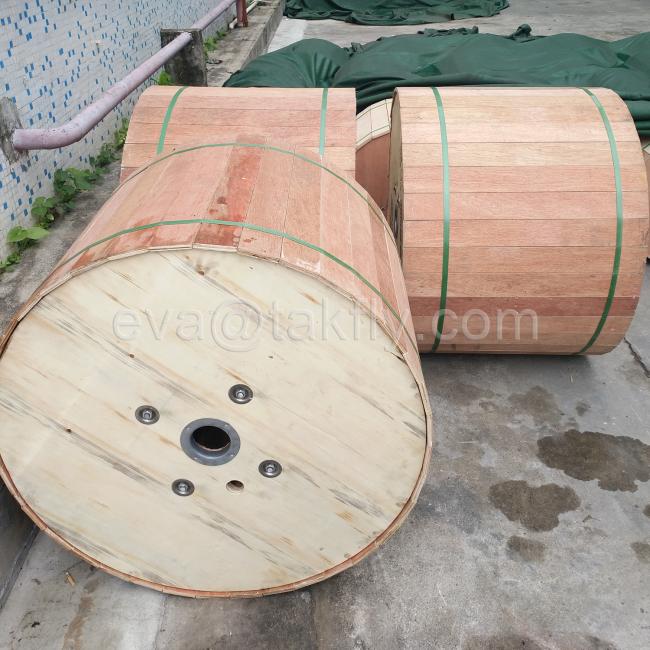

| Packaging Details | 2-4km per Wooden Drum |
| Payment Terms | T/T, Western Union, MoneyGram, Paypal, L/C |
| Supply Ability | 2000km channels each month |
| Outer Sheath Material | PE | Place of Origin | China |
| Packaging Details | 2-4km per Wooden Drum | Product Name | GY(F)TS Fiber Optic Cable |
| Central Strength Member | FRP / Steel Wire | Model Number | GYFTS, GYTS |
| Max Fiber Amount | 288 | Supply Ability | 2000km channels each month |
| Certification | CE,ROHS,REACH,ISO9001,ISO14001 | Sheath | Single Sheath |
| Brand Name | OEM/Takfly | Payment Terms | T/T, Western Union, MoneyGram, Paypal, L/C |
| Price | USD300/pcs ~ USD1000/pcs | Delivery Time | 4-6 working days |
| Armor | Steel | Minimum Order Quantity | 2KM |
GYFTS GYTS Underground Duct Outdoor Cable Armored PE Sheath Rodent Resistant Fiber Optic Cable Cable
Description

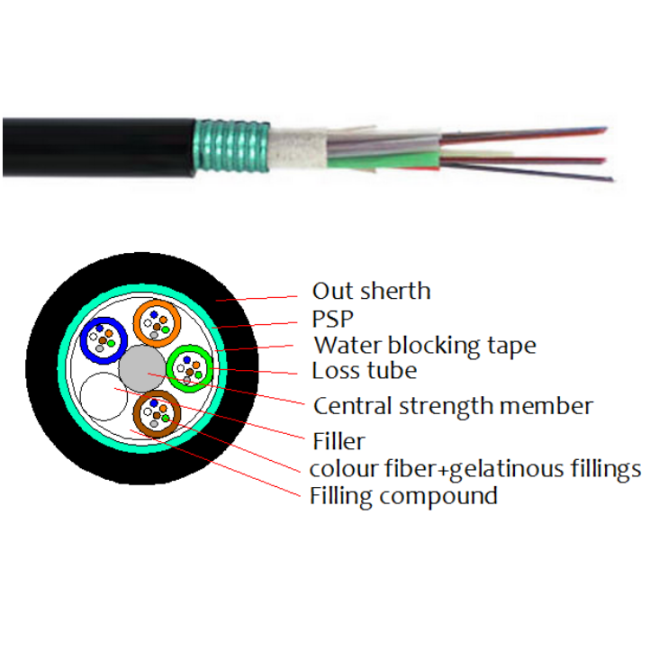

The fibers, 250μmm, are position in a loose tube made of a high modulus plastic. The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Feature
Application
Optical Fiber Characteristics
| G.652.D | G.6555 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.23 dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
Technical Data
| Item | Contents | Value |
| Loose Tube | material | PBT/PP |
| diameter | Ф2.2mm | |
| Central strength member | material | Steel wire/Steel wire with PE cover |
| diameter | Ф2.0mm | |
| Outer sheath | material | MDPE/HDPE |
| Thickness | 1.7mm |
Cable Mechanical characteristic
| Cable type |
Diameter (mm) |
Weight (Kg/km) |
Max.Tension |
Crush
Resistance (N) |
Min. Bending Radius |
Storage
Temperature (℃) |
|
| Long/Short Term | Long/Short Term | Dynamic | Static | ||||
| GYTS, 2~60F | 10.0 | 115 | 1000/3000 | 1000/3000 | 20D | 10D | -20~+70 |
| GYTS, 62~72F | 10.5 | 130 | |||||
| GYTS, 74~96F | 12.0 | 160 | |||||
| GYTS, 74~96F | 14.0 | 220 | |||||
| GYTS, 122~144F | 16.0 | 280 | |||||
FAQ:
Q:
Do
you
provide
OEM
service
?
A:
Yes,
we
can
print
your
logo
or
label
on
the
products
or
on
the
box.
Q:
Can
you
provide
free
samples
?
A:
Some
of
low
value
samples
can
be
free
for
you,
but
you
need
pay
for
the
shipping
cost.
Q:
How
can
you
guarentee
the
quality
?
A:
Build
on
our
perfect
quality
management
system,
all
of
our
products
were
100%
tested
before
the
shipment.
Q:
What
is
your
delivery
time
?
A:
Generally,
sample:
3~5
working
days.
Formal
order:
7-10
working
days.
Q:
What's
your
payment
terms
?
A:
We
accept
T/T,
Western
Union,
Paypal,
L/C
For
samples:
100%
payment.
Formal
order:
30%~100%
as
deposit,
balance
payment
before
shipment.
