GYFTA53 GYTA53 Direct Buried Outdoor Optic Cable Armor Tape Double Sheath Fibre Power Cable

GYFTA53 GYTA53 Direct Buried Outdoor Fiber Optic Cable Armor Tape Double Sheath Rodent Resistant Fiber Cable

Description

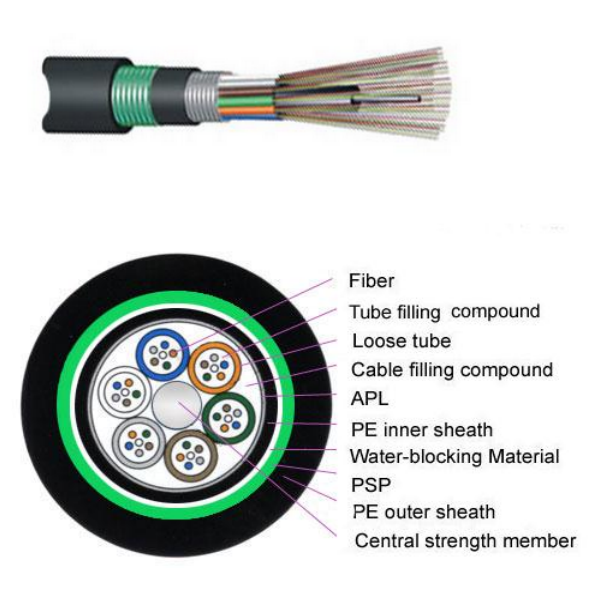

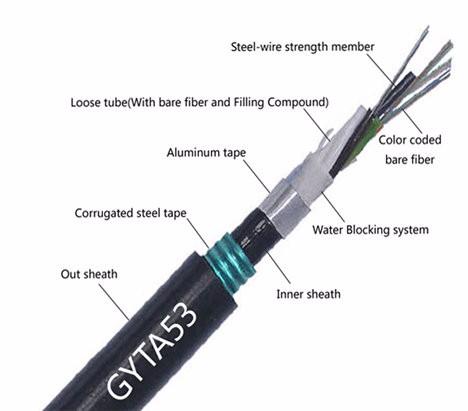

The fibers 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Feature

1, Good mechanical and temperature perfomance;
2, High strength loose tube that is hydrolysis resistant
3, Special tube filling compound ensure a critical protection of fiber
4, Specially designed compact structure is good at preventing loose tubes from shrinking
5, PE sheath protects cable from ultraviolet radiation
6, The following measures are taken to ensure the cable watertight:
--- Steel wire used as the central strength member
--- Loose tube filling compound
--- 100% cable core filling
--- APL moisture barrier

Application

• Adopted to outdoor distribution;
• Suitable for aerial, duct and direct buried;
• Long distance and local area network communication.

Optical Fiber Characteristics

Technical Data

Cable Mechanical characteristic

FAQ:

Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.

Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.

Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
