| Price | 0.56 |
| MOQ | 1 |
| Delivery Time | Negotiable |
| Certification | RoHS, CE, ISO9001, VDE, CCC |
| Material Shape | Round Wire | Connection Structure | Sc/LC/St/FC Optional |
| Return Loss (Typical) | PC:50dB, UPC:55dB, APC:65dB | Fiber Type | Sm, mm |
| Certification | RoHS, CE, ISO9001, VDE, CCC | Insertion Loss (Typical) | 0.2dB, 0.4dB |
| Sheath Material | PVC or LSZH | Normal Fiber OD | 125±0.2um |
| Price | 0.56 | Minimum Order Quantity | 1 |
| Allowed Lateral Pressure | 100(N/100mm) | Connector Type | Sc, FC, st, e-2000, LC, mu, MTRJ |
| Mating Durability | 500 cycles | Insertion Loss (Max) | 0.3dB, 0.5dB |
| Operation Temperature | -40°C~+85°C | Allowed Tensile Strength | <100N |
| Core | Multicore | Storage Temperature | -40°C~+85°C |
| Parameter | Unit | Single Mode | Multimode |
|---|---|---|---|
| Fiber Type |
|
SM | MM |
| Normal Fiber OD |
|
125±0.2μm | 125±0.2μm |
| Connector Types |
|

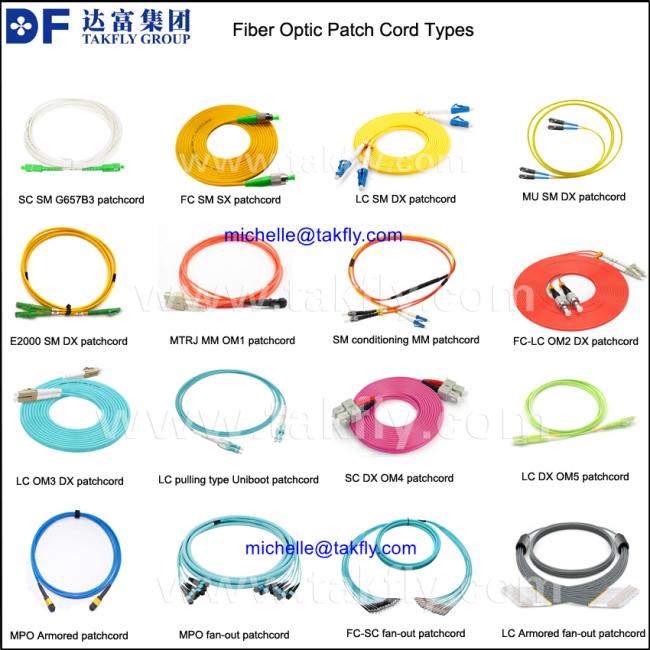

SC, FC, ST, E-2000, LC, MU, MTRJ | SC, FC, ST, E-2000, LC, MU, MTRJ |
| Insertion Loss (Typical) | dB | 0.2 | 0.4 |
| Insertion Loss (Max) | dB | 0.3 | 0.5 |
| Return Loss (Typical) | dB | PC: 50, UPC: 55, APC: 65 | 35 |
| Mating Durability | 500 cycles | 0.2dB | |
| Temperature Stability |
|
0.3dB | |
| Operation Temperature |
|
-40°C to +85°C | |
| Storage Temperature |
|
-40°C to +85°C | |
